Retrofit daytime running lights headlamp - AZ82.10-P-0020-01EWA

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0 /1 /2 (except 212.074 /077 /274 /277) up to 31.5.10 with CODE (498) Japan version

Fig 1: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA

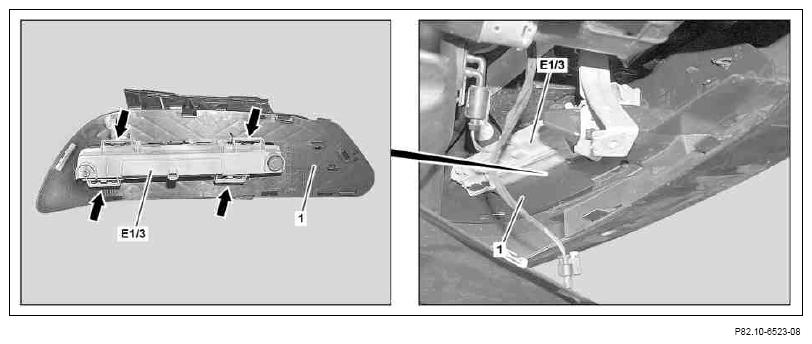

Fig 2: Locating Left Daytime Running Lights Headlamp

Courtesy of MERCEDES-BENZ USA

Clip left daytime running lights headlamp (E1/3) and right daytime running lights headlamp into brackets (arrows) of LED daytime running lights (1) covers.
Remove black 2-pin coupling (3) of left front fog lamp and right front fog lamp from front fog lamp wiring harness.
Note down assignment of slots of black 2-pin coupling (3).

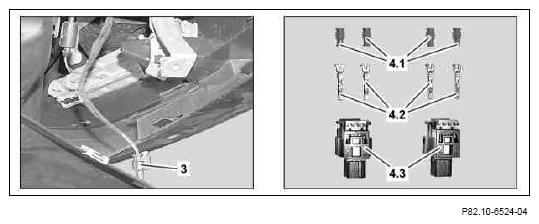

Fig 3: Fog Lamp Coupling
Courtesy of MERCEDES-BENZ USA
Attach seals (4.1), plug contacts (4.2) and coupling housing (4.3) included in package contents to front fog lamp wiring harness.
The line from slot "1" of the black 2-pin coupling (3) must be installed into slot "1" of the coupling housing (4.3).

The line from slot "2" of the black 2-pin coupling (3) must be installed into slot "2" of the coupling housing (4.3).
Connect black 2-pin coupling (4) to left daytime running lights headlamp (E1/3) and right daytime running lights headlamp.

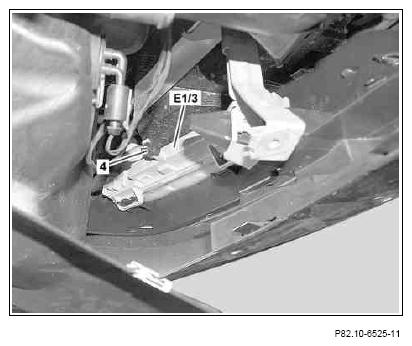

Fig 4: Daytime Running Lights Headlamp Coupling
Courtesy of MERCEDES-BENZ USA
