Disassemble/assemble front bumper - AR88.20-P-2050EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2

MODEL 204.3 without CODE P98 (Black Series)

MODEL 207 up to model year 2014

MODEL 212 up to model year 2014

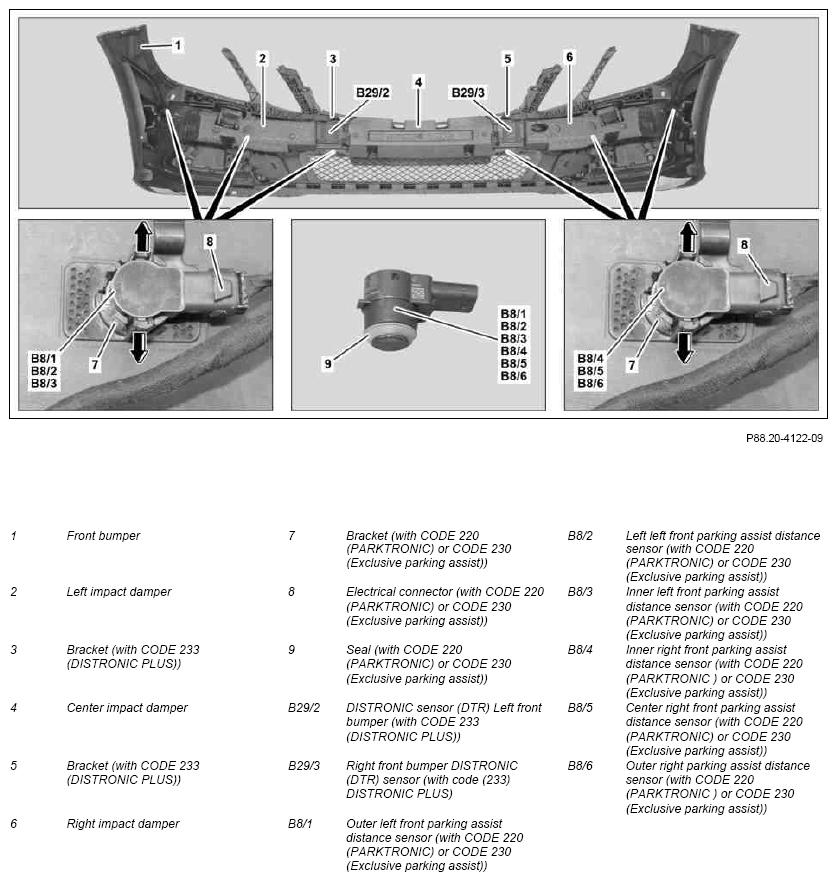

Shown on MODEL 207 with CODE 220 (PARKTRONIC) and CODE 233 (DISTRONIC PLUS)

Fig 1: Front Bumper Remove/Install Components - Shown On Model 207 With Code 220
G09977883Courtesy of MERCEDES-BENZ USA

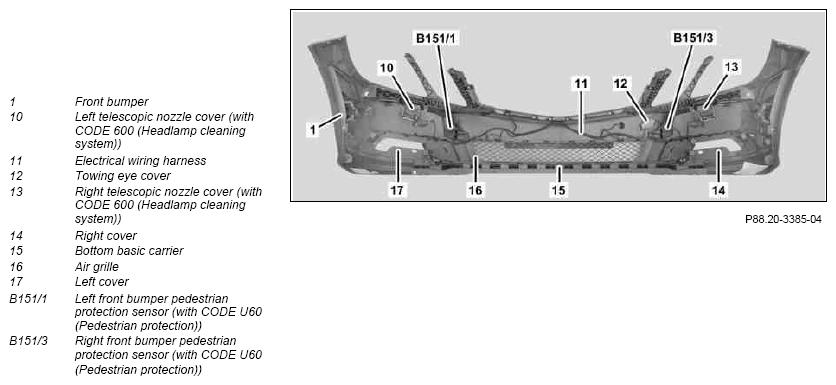

Shown on MODEL 207 with CODE 600 (Headlamp cleaning system) and CODE U60 (Pedestrian protection)

Fig 2: Front Bumper Remove/Install Components - Shown On Model 207 With Code 600
G09977884Courtesy of MERCEDES-BENZ USA

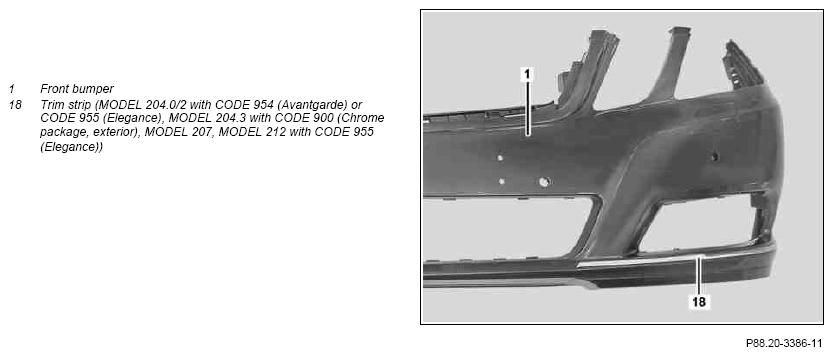

Shown on MODEL 212 on left side of vehicle, with CODE 955 (Elegance)

Fig 3: Front Bumper Remove/Install Components - Shown On Model 212
G09977885Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove front bumper (1) MODEL 207
up to model year 2014
MODEL 212
up to model year 2014		 AR88.20-P-2000EW
MODEL 204.0/2
MODEL 204.3
without CODE P98 (Black Series)
IMPORTANT On MODEL 207 remove radiator grille from front bumper (1).		 AR88.20-P-2000CW
2 Unclip left impact absorber (2), right impact absorber (6) and center impact absorber (4) from front bumper (1)
NOTES General information on the impact absorber AH88.20-P-1000-01A
3 Disconnect electrical connector from left front bumper DISTRONIC (DTR) sensor (B29/2) and right front bumper DISTRONIC (DTR) sensor (B29/3) MODEL 204.0/2
with CODE 233 (DISTRONIC PLUS)
MODEL 204.3
with CODE 233 (DISTRONIC PLUS)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
MODEL 212
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
4 Unclip bracket (3, 5) from front bumper (1) MODEL 204.0/2
with CODE 233 (DISTRONIC PLUS)
MODEL 204.3
with CODE 233 (DISTRONIC PLUS)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
MODEL 212
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
IMPORTANTRemoval:  Unclip brackets (3, 5) together with left front bumper DISTRONIC (DTR) sensor (B29/2) and right front bumper DISTRONIC (DTR) sensor (B29/3).
5 Remove left front bumper DISTRONIC (DTR) sensor (B29/2) from bracket (3) MODEL 204.0/2
with CODE 233 (DISTRONIC PLUS)
MODEL 204.3
with CODE 233 (DISTRONIC PLUS)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
MODEL 212
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
When replacing bracket (3) or left front bumper DISTRONIC (DTR) sensor (B29/2).
6 Remove right front bumper DISTRONIC (DTR) sensor (B29/3) from bracket (5) MODEL 204.0/2
with CODE 233 (DISTRONIC PLUS)
MODEL 204.3
with CODE 233 (DISTRONIC PLUS)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
MODEL 212
up to model year 2014
with CODE 233 (DISTRONIC PLUS)
When replacing brackt (5) or right front bumper DISTRONIC (DTR) sensor (B29/3).
7 Remove front parking system distance sensors (B8/1, B8/2, B8/3, B8/4, B8/5, B8/6) from brackets (7) and disconnect electrical connectors (8) MODEL 204.0/2
with CODE 220 (PARKTRONIC)
MODEL 204.0/2
with CODE 230 (Advanced Parking Guidance)
MODEL 204.3
with CODE 220 (PARKTRONIC)
without CODE P98 (Black Series)
MODEL 204.3
with CODE 230 (Advanced Parking Guidance)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 220 (PARKTRONIC)
MODEL 207
up to model year 2014
with CODE 230 (Advanced Parking Guidance)
MODEL 212
up to model year 2014
with CODE 220 (PARKTRONIC)
MODEL 212
up to model year 2014
with CODE 230 (Advanced Parking Guidance)
IMPORTANT Installation: Check sealing ring (9), replace if necessary.
If, on MODEL 204.077/277/377 and MODEL 212.077/277 the inner left front parking system distance sensor (B8/3) inner right front parking system distance sensor (B8/4) are to be replaced, paint to match appearance of car (color code 9979).
8 Remove left front bumper pedestrian protection sensor (B1511) and right front bumper pedestrian protection sensor (B1513) MODEL 204.3
with CODE U60 (Pedestrian protection)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE U60 (Pedestrian protection)
MODEL 212
up to model year 2014
with CODE U60 (Pedestrian protection)
IMPORTANT Installation: Pay attention to installation position.
TORQUE SPECIFICATION Bolt, frontal acceleration sensor to bumper *BA91.60-P-1012-01M
9 Remove left daytime running lamp and right daytime running lamp or left front fog lamp and right front fog lamp IMPORTANT Depending on vehicle equipment.
IMPORTANT The number of bolts depends on the equipment variant.
10 Unclip left cover (17) and right cover (14)
11 Unclip air grate (16)
12 Unclip electric wiring harness (11) from front bumper (1)
13 Remove left telescopic nozzle cover (10) and right telescopic nozzle cover (13) MODEL 204.0/2
with CODE 600 (Headlamp cleaning system)
MODEL 204.3
with CODE 600 (Headlamp cleaning system)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
with CODE 600 (Headlamp cleaning system)
MODEL 212
up to model year 2014
with CODE 600 (Headlamp cleaning system)
14 Install tow eye cover (12)
15 Unclip lower basic carrier (15) SPECIAL TOOL Mounting wedge Figure
16 Unclip left and right trim strip (18) from front bumper (1) MODEL 204.0/2
with CODE 954 (Avantgarde)
MODEL 204.0/2
with CODE 955 (Elegance)
MODEL 204.3
with CODE 900 (Exterior Chrome package)
without CODE P98 (Black Series)
MODEL 207
up to model year 2014
MODEL 212
up to model year 2014
with CODE 955 (Elegance)
17 Remove license plate
18 Remove license plate bracket
19 Install in the reverse order
AIRBAG

Number Designation MODEL 204.3 MODEL 207
BA91.60-P-1012-01M Bolt, frontal acceleration sensor to bumper Nm 4 4
AIRBAG

Number Designation MODEL 212
BA91.60-P-1012-01M Bolt, frontal acceleration sensor to bumper Nm 4
Fig 4: Identifying Mounting Wedge (110 589 03 59 00)
G09977886Courtesy of MERCEDES-BENZ USA
