Removal [07/2015 - ]: Procedure

REMOVE HAZARD FLASHER

Disconnect the negative battery cable.
Refer to PROCEDURE - Step 1
Remove the following parts:
1. Center console tray
  Refer to PROCEDURE - Step 1
2. Shift bezel
  Refer to PROCEDURE - Step 1
3. Upper panel
  Refer to PROCEDURE - Step 1
4. Shift lever knob (MTX)
  Refer to PROCEDURE - Step 1
5. Selector lever knob (ATX)
  Refer to REMOVAL [07/2015 - ]
6. Shift panel
  Refer to PROCEDURE - Step 1
7. Console side panel
  Refer to PROCEDURE - Step 1
8. Front console box
  Refer to PROCEDURE - Step 1
9. Disc player
  Refer to PROCEDURE - Step 1
10. Front console
  Refer to PROCEDURE - Step 1
11. Side wall
  Refer to PROCEDURE - Step 1
12. Rear console
  Refer to PROCEDURE - Step 1
13. Glove compartment
  Refer to PROCEDURE - Step 1
14. Center panel
  Refer to PROCEDURE - Step 1
15. Front scuff plate (RH)
  Refer to PROCEDURE - Step 1
16. Front side trim (RH)
  Refer to PROCEDURE - Step 1
17. Hood release lever
  Refer to REMOVAL [07/2015 - ]
18. Fuel-filler lid opener lever
  Refer to REMOVAL [07/2015 - ]
19. Driver-side lower panel
  Refer to PROCEDURE - Step 1
20. Center lower panel
  Refer to PROCEDURE - Step 1

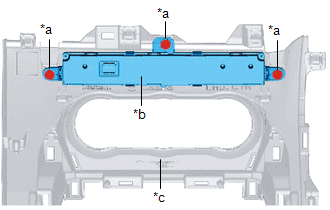

Remove the screw.

GTY488891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	SCREW
*b	HAZARD FLASHER
*c	CENTER LOWER PANEL

Remove the hazard flasher.
