Removal [07/2015 - ]: Procedure

  1. REMOVE REAR CONSOLE
    1. Disconnect the negative battery cable.

      Refer to PROCEDURE - Step 1

    2. Remove the following parts:
      1. Center console tray

        See step  1

      2. Shift bezel

        See step  1

      3. Upper panel

        See step  1

      4. Selector lever knob (ATX)

        Refer to REMOVAL [07/2015 - ]

      5. Shift lever knob (MTX)

        Refer to PROCEDURE - Step 1

      6. Shift panel

        See step  1

      7. Console side panel

        See step  1

      8. Front console box

        See step  1

      9. Disc player

        Refer to PROCEDURE - Step 1

      10. Front console

        See step  1

      11. Side wall

        See step  1

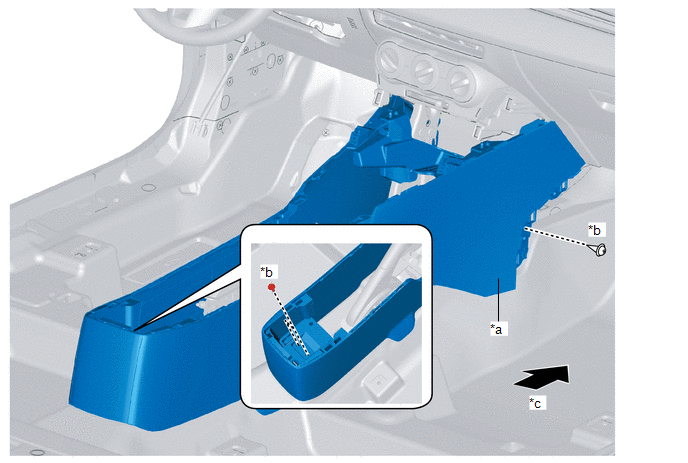

    3. Remove the screws.
      GTY484787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a REAR CONSOLE *b SCREW
      *c VEHICLE FRONT - -
    4. Remove the wiring harness clips.

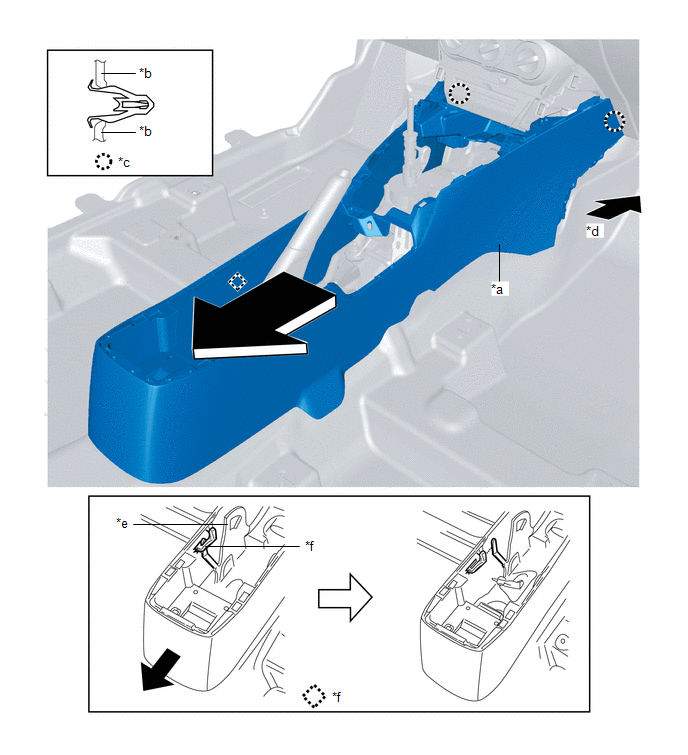

    5. Move the rear console in the direction of the arrow shown in the figure, and while detaching the clips from the instrument panel safety pad, release the guide from the parking brake lever bracket.
      GTY493521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a REAR CONSOLE *b INSTRUMENT PANEL SAFETY PAD
      *c CLIP *d VEHICLE FRONT
      *e PARKING BRAKE LEVER BRACKET *f GUIDE
    6. Remove the rear console while avoiding the shift lever (MTX)/Selector lever (ATX) and the parking brake lever.
