Removal [07/2015 - ]: Procedure

  1. REMOVE SIDE WALL
    1. Driver-side
      1. Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks and clip.
        NOTE:

        If hooks and clip are removed forcefully, guide may be damaged. Carefully remove hooks and clip so as not to damage guide.

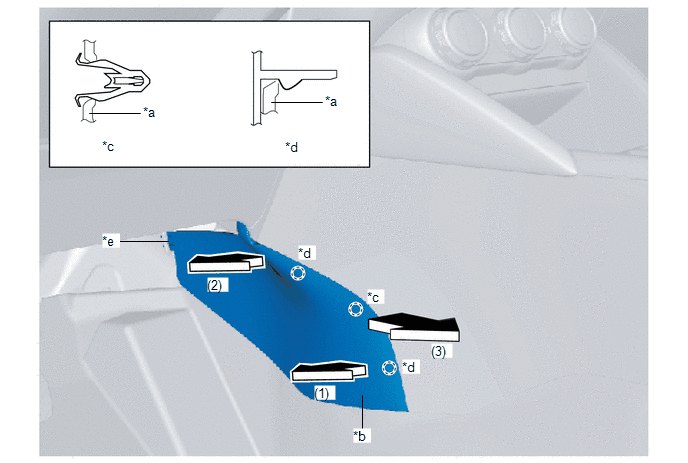

        GTY493157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a FRONT CONSOLE *b SIDE WALL
        *c CLIP *d HOOK
        *e GUIDE - -
      2. Pull the side wall in the direction of the arrow (3) and remove it while detaching guide.
    2. Passenger-side
      1. Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks.
        NOTE:

        If hooks are removed forcefully, guide may be damaged. Carefully remove hooks so as not to damage guide.

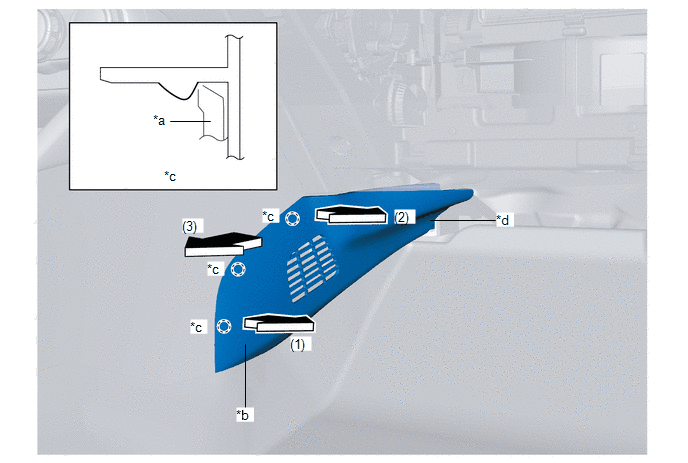

        GTY484806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a FRONT CONSOLE *b SIDE WALL
        *c HOOK *d GUIDE
      2. Pull the side wall in the direction of the arrow (3) and remove it while detaching guide.
