Removal [07/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE MANUAL TRANSAXLE SHIFT MECHANISM
    1. Disconnect the negative battery cable.

      Refer to REMOVAL [07/2015 - ]

    2. Remove the shift lever using the following procedure:
      1. Remove the center console tray.

        Refer to REMOVAL [07/2015 - ]

      2. Remove the shift bezel.

        Refer to REMOVAL [07/2015 - ]

      3. Remove the upper panel.

        Refer to REMOVAL [07/2015 - ]

      4. Remove the shift lever knob.
        GTY492850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shift Lever Knob
      5. Remove the shift panel.

        Refer to REMOVAL [07/2015 - ]

      6. Remove the console side panel.

        Refer to REMOVAL [07/2015 - ]

      7. Remove the front console box.

        Refer to REMOVAL [07/2015 - ]

      8. Remove the CD player. (with CD player)

        Refer to REMOVAL [07/2015 - ]

      9. Remove the front console.

        Refer to REMOVAL [07/2015 - ]

      10. Remove the side wall.

        Refer to REMOVAL [07/2015 - ]

      11. Remove the rear console.

        Refer to REMOVAL [07/2015 - ]

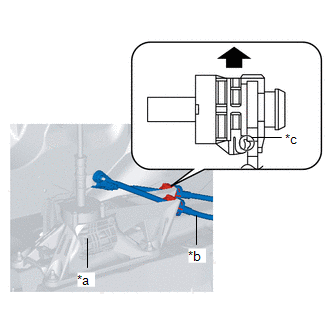

      12. Press the tabs on the control cable as shown in the figure and disconnect the control cable from the shift lever.
        GTY494208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shift Lever
        *b Control Cable
        *c Tab

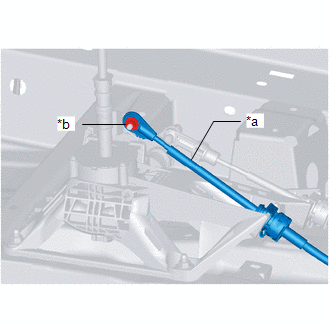

      13. Disconnect the control cable end (shift side) from the shaft lever.
        GTY489691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Control Cable End (Shift Side)
        *b Nut

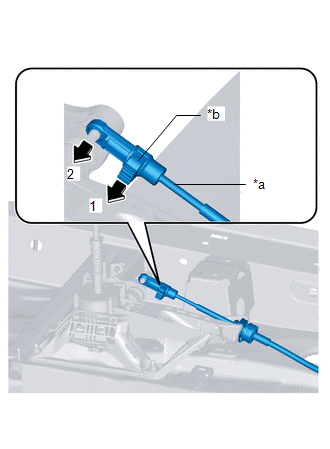

      14. Disconnect the control cable end (select side) from the shift lever using the following procedure:
        1. Push out the lock piece in the direction shown in the figure.
        2. Disconnect the control cable end (select side) from the shift lever.
        GTY484582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Control Cable End (Select Side)
        *b Lock Piece
      15. Disconnect the connector from shift lever as shown in the figure.
        GTY484174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Shift Lever
        *b Clip
        *c Connector
      16. Remove the shift lever.
        GTY490678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Nut
        N*m (kgf*cm, ft.*lbf): Specified torque
    3. Remove the control cable using the following procedure:
      1. Remove the air cleaner, air hose and fresh air duct as a single unit.

        Refer to REMOVAL [07/2015 - ]

      2. Remove the battery tray and PCM component.

        Refer to REMOVAL [07/2015 - ]

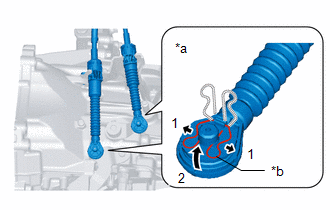

      3. Remove the control cable end from the manual transaxle.
        GTY490870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Control Cable End
        *b Lock Pin
        1. Pull the lock pin in the direction of the arrow shown in the figure and release the control cable end (manual transaxle side) lock.
        2. Remove the control cable end from the manual transaxle.

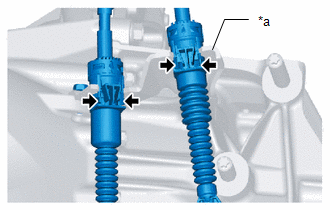

      4. Press the tabs on the control cable and disconnect the control cable from the control cable bracket.
        GTY490010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Control Cable Bracket
      5. Remove the fastening nut for the control cable.
        GTY493653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Nut
        N*m (kgf*cm, ft.*lbf): Specified torque
      6. Remove the fastening nuts for the grommet.
        GTY484624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Nut
        N*m (kgf*cm, ft.*lbf): Specified torque

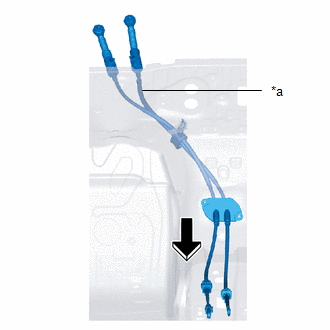

      7. Remove the control cable.
        GTY493048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Control Cable
