Installing Front Backrest Frame

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install wire harness for backrest → Installing wiring for backrest .
Install side airbag → Installing side airbag .
Install lumbar support → Installing Lumbar Support .
Install padding for backrest → Installing Padding For Front Backrest .

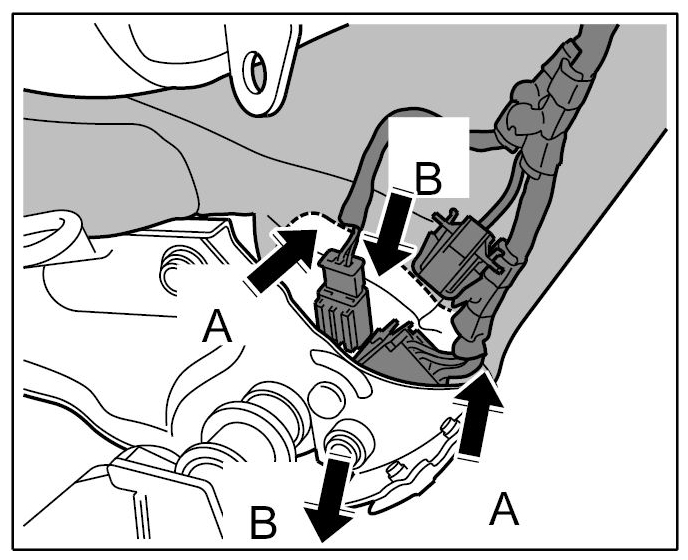

Engage backrest at inner side for installation of the wire harnesses -arrow- . Make sure that the backrest cannot tilt backward or forward.

Fig 1: Installing Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

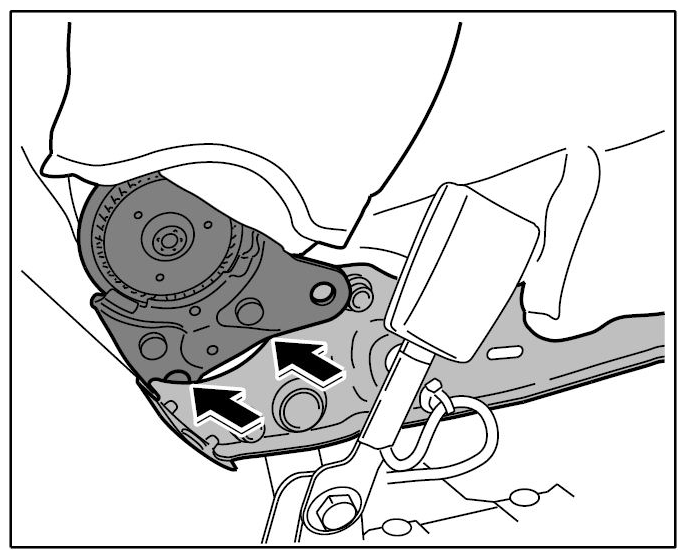

Push seat cushion away inward -arrows A- .

Fig 2: Installing Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wire harnesses down through seat frame -arrows B- .

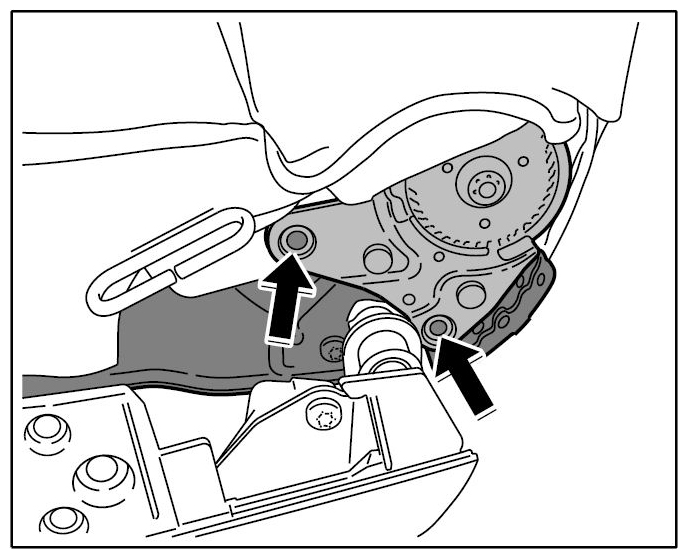

Engage backrest into the centring bushings at outer side -arrows- and screw in both fastening screws but do not tighten.

Fig 3: Locating Backrest Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Make sure that the plastic sleeve is inserted between the top centring bushing and the backrest.

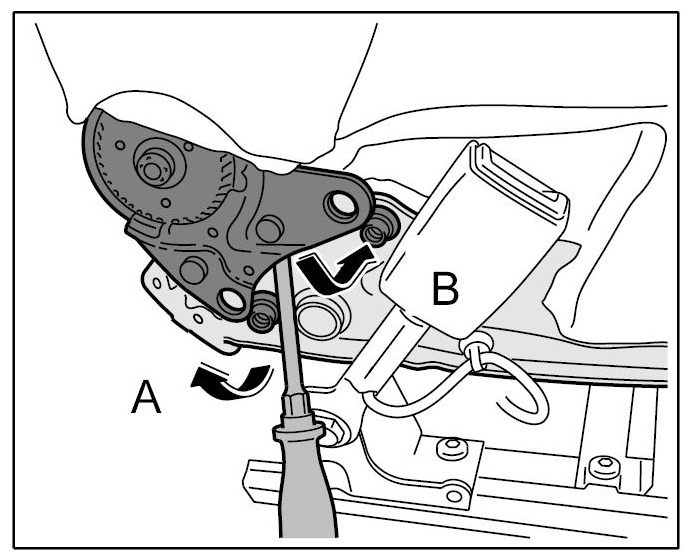

Using a screwdriver, lever inner side of backrest outward -arrow A- , then shift backrest until bores engage on the centring bushings -B- .

Fig 4: Securing Backrest Frame Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

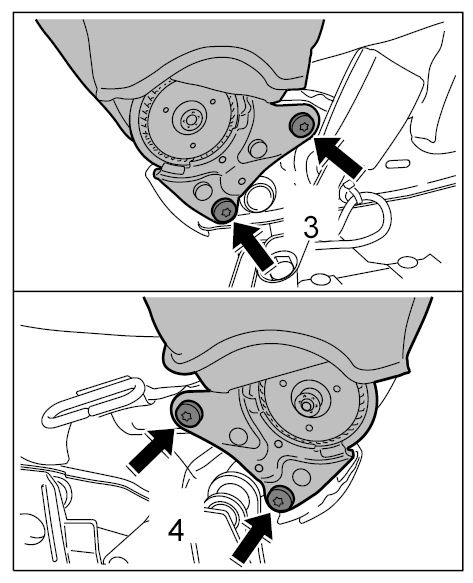

Screw in both fastening screws on inner side -3- , then tighten fastening screws on both sides -3, 4- → Tightening torque: 34.5 Nm (26 ft lbs.) .

Fig 5: Locating Backrest Frame Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

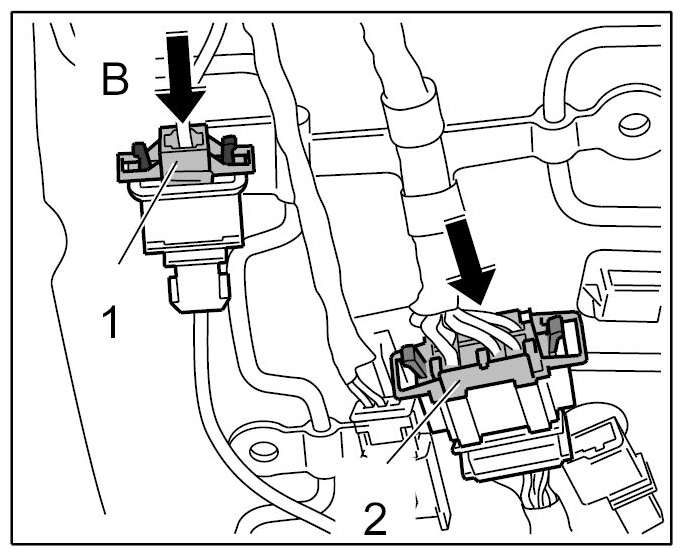

Insert ground connector of side airbag -1- and central connector of backrest -2- into seat wire harness until they engage with an audible click.

Fig 6: Locking Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

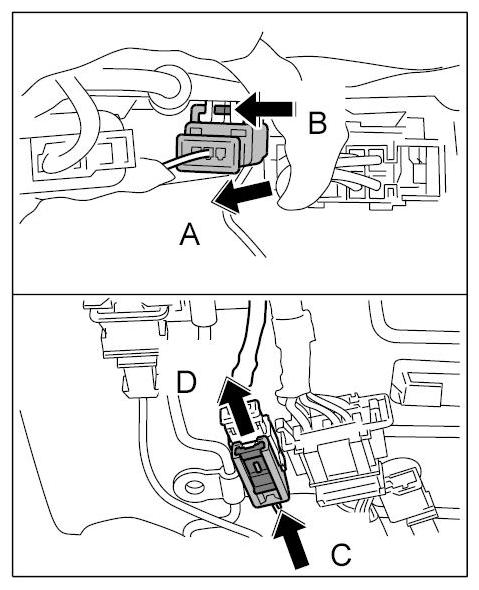

Clip airbag connector onto spring core -arrow A- until the lock -B- engages securely.

Fig 7: Locking Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Join airbag connectors -arrow C- until the lock -D- engages securely.

Fig 8: Locking Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

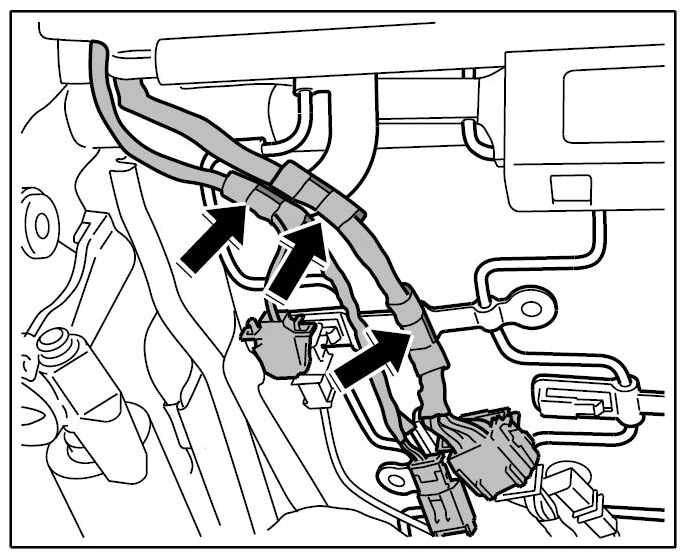

Clip wire harness into spring core -arrows- .

Fig 9: Locating Wire Harnesses Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install inner and outer seat trim → Installing Front Seat Trim .
Install backrest cover → Installing Cover For Backrest .
