Installing Lumbar Support

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engage holders on one side of backrest frame.
  2. Push holders on opposite side inwards -Arrow A-  and engage on backrest frame -Arrow B-  .

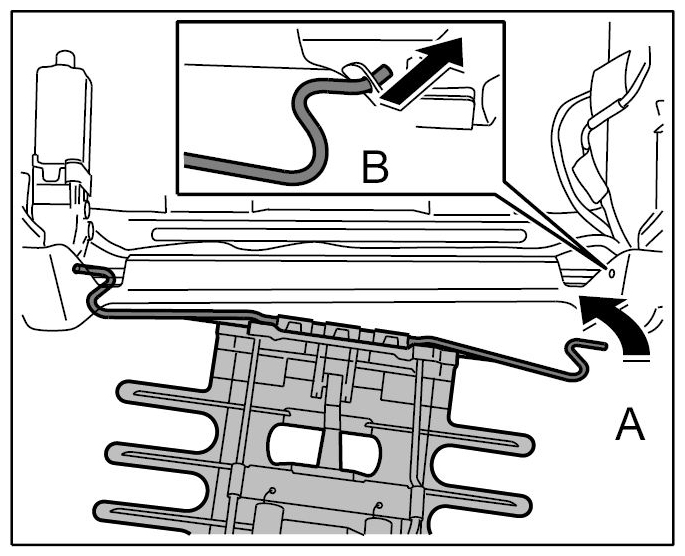

    Fig 1: Engaging Backrest Frame
    G09413715Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Fold lumbar support up and push into fastening clips -arrows-  until they can be felt to engage.

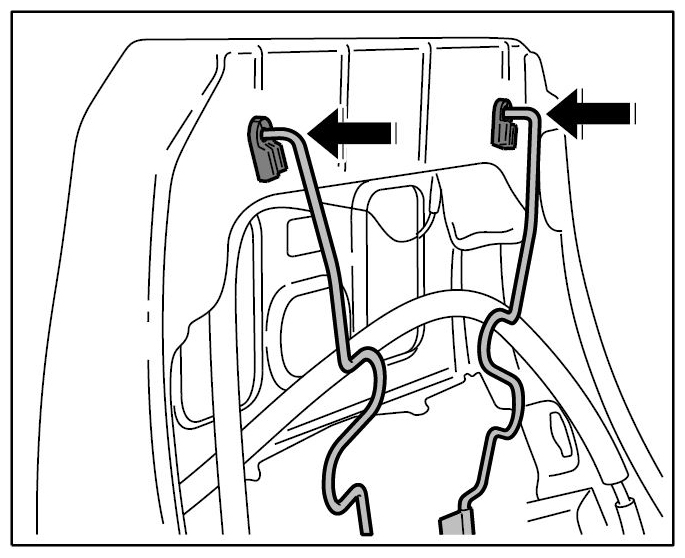

    Fig 2: Locating Lumbar Support Fastening Clips
    G09413716Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install lumbar curvature cable.

    → Installing Rear Backrest

  5. Install lumbar adjustment cable.

    → Installing Rear Backrest
