Installing Padding For Front Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

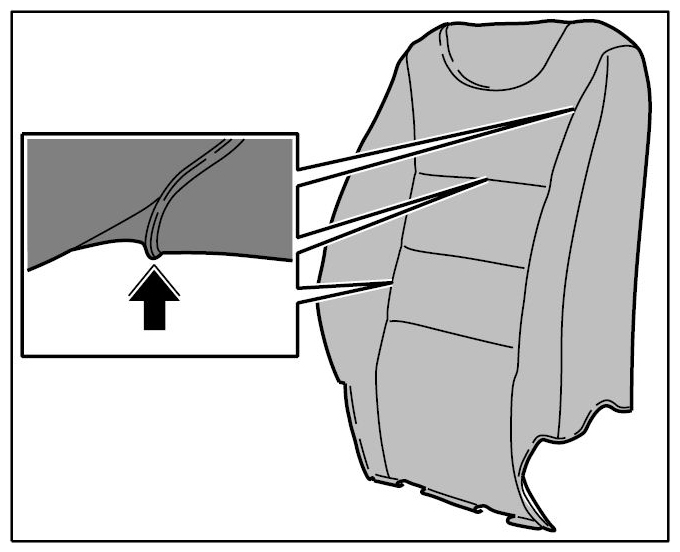

Line up cover of padding at top and sides in such a way that seams of cover fit into recesses of the padding -arrow- .

Fig 1: Locating Padding Cover Recess Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

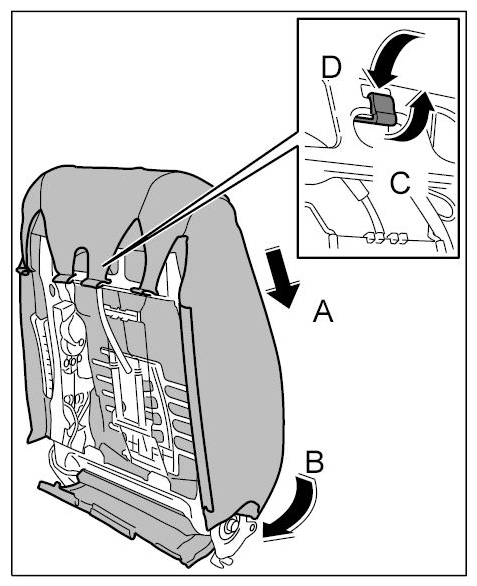

Push padding with cover over backrest frame from above -Arrow A- and push towards backrest frame at bottom -Arrow B- .

Fig 2: Pushing Padding With Cover Over Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- In vehicles with heated seats, the electric wiring must also be laid.
Pull rubber strap back -Arrow C- and engage on backrest frame -Arrow D- .

Fig 3: Engaging Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

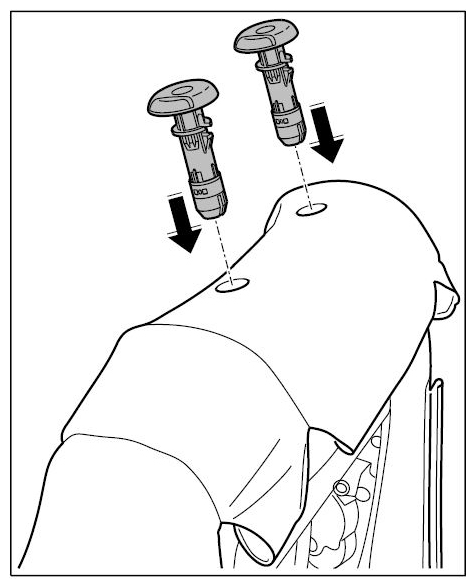

Insert headrest guides to fix cover into place -arrows- .

Fig 4: Inserting Headrest Guides To Fix Cover Into Place
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The headrest guides must not be engaged in the backrest frame when lining up cover.

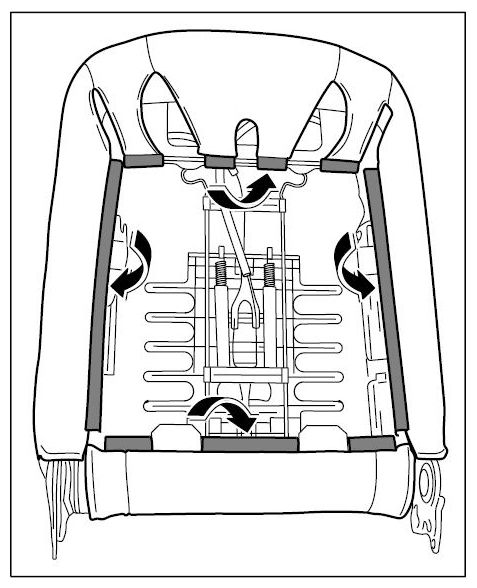

Pull back of cover in and engage on backrest frame with plastic strips -arrows- .

Fig 5: Engaging Backrest Frame Cover With Plastic Strips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Start with the top plastic strips, then the bottom strips and finally engage the side strips.
Push headrest guides into backrest frame until they can be felt engaging.
Install headrest. → Installing headrest
Install front backrest frame. → Installing front backrest frame
