Installing Cover For Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

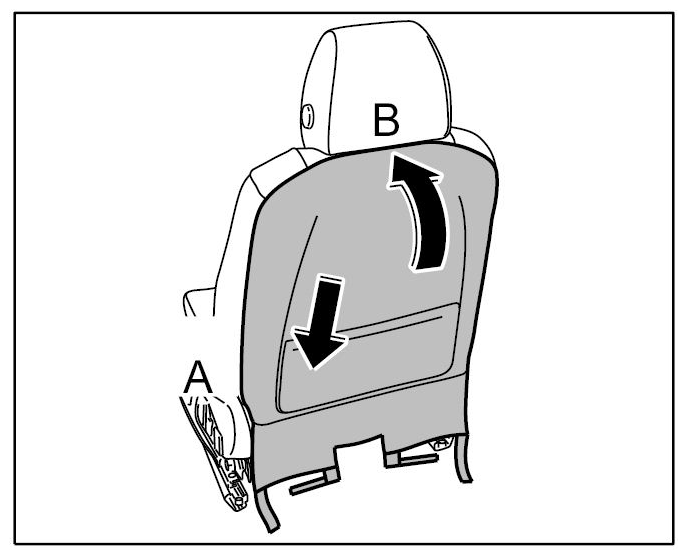

Engage cover on the backrest frame at the bottom -Arrow A- and push it in at the top -Arrow B- until the cover can be felt to engage.

Fig 1: Engaging Cover On Backrest Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

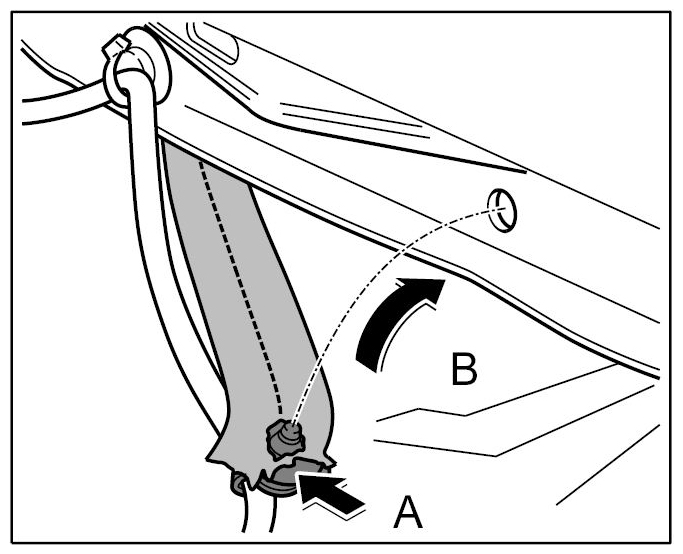

Engage rubber strap at the inside on the fastening clip -Arrow A- of the belt buckle cable and secure the fastening clip to the seat frame with the rubber strap -Arrow B- .

Fig 2: Securing Fastening Clip To Seat Frame With Rubber Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

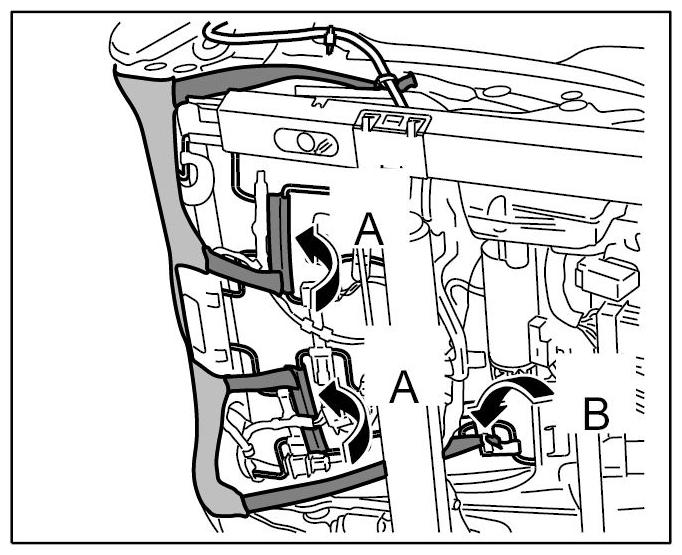

Engage plastic strips and rubber strap on outside of seat frame -A, B- .

Fig 3: Engaging Plastic Strips And Rubber Strap On Outside Of Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

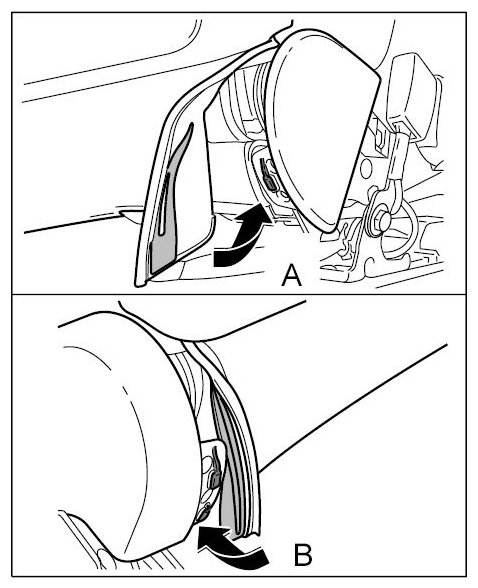

Engage cover on the side trim inside and outside -A, B- .

Fig 4: Engaging Cover On Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
