Installing Wiring For Backrest

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

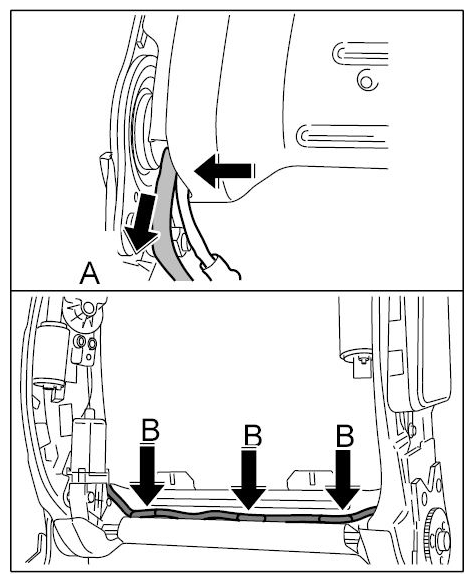

Guide side airbag wiring harness through the backrest frame -Arrow A- . Make sure that the two plugs are not damaged when you do this.

Fig 1: Installing Side Airbag Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip wiring harness onto the backrest frame -Arrows B- .
Information
- Ensure that the tie-wrap is installed correctly as it can impact on the backrest frame and hinder installation of the protective cover.

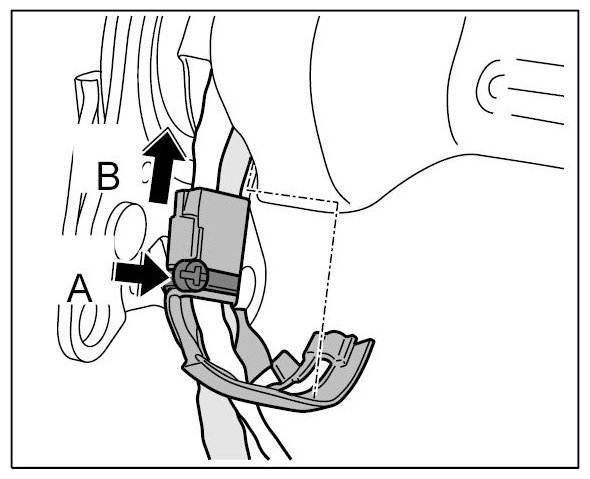

Fit protective cover on wiring harness and fasten it with a commercially available tie-wrap -Arrow A- . Push protective cover upwards -Arrow B- and fasten it to the backrest frame.

Fig 2: Installing Protective Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

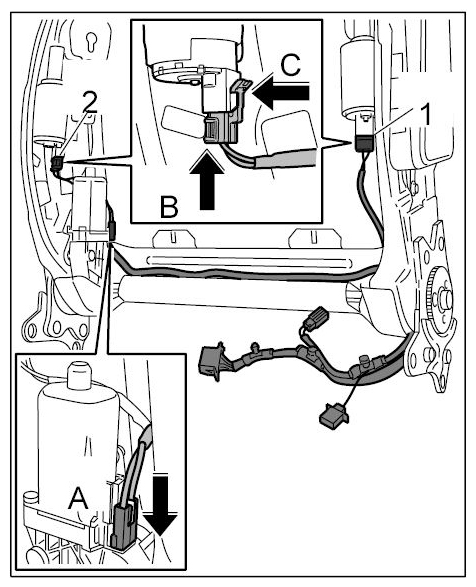

Push in plug on backrest adjustment motor -Arrow A- until it is felt to engage.

Fig 3: Connecting Plugs On Height And Cambering Adjustment Motor Of Lumbar Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the plugs on the height -1- and cambering adjustment motor -2- of the lumbar support -Arrow B- until the locking mechanisms are felt to engage -Arrow C- .
