Removal Of Chain Tensioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine. → Removing engine
  2. Remove the transmission. → WM 100127 REMOVING ENGINE FROM TRANSMISSION AND MOUNTING ENGINE ON TRANSMISSION
  3. Secure engine on mounting bracket. → 1001IN SUPPORTING V6 3.6-LITRE DFI ENGINE ON MOUNTING BRACKET
  4. Remove engine carrier eyebolt at the front and rear. → 1001IN LIFTING V6 3.6-LITRE DFI ENGINE WITH A WORKSHOP CRANE
  5. Remove the engine wire harness. → Removing wire harness for engine
  6. Remove bar ignition modules. → WM 282020 REMOVING AND INSTALLING DFI BAR IGNITION MODULES
  7. Remove intake-air distributor. → Removing Intake-Air Distributor
  8. Remove drive belt. → Removing And Installing Drive Belt
  9. Remove belt tensioner. → Removing Belt Tensioner

    Pfeile  - Belt tensioner

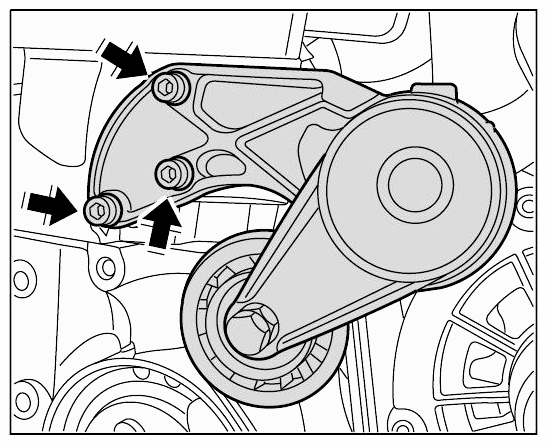

    Fig 1: Locating Belt Tensioner Mounting Bolts
    G09408989Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Remove cylinder head cover. → WM 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER ON V6 DFI ENGINES
  11. Remove flywheel/drive plate.
    1. 11.1. Remove dual-mass flywheel on vehicles with manual transmission. → Removing Flywheel (Dual-Mass Flywheel)
    2. 11.2. Remove drive plate on vehicles with automatic transmission. → 136319 REMOVING AND INSTALLING DRIVE PLATE FOR TORQUE CONVERTER
  12. Remove oil pan. → Removing The Oil Pan
  13. Remove upper and lower timing-case cover. → Removing Upper Timing-Case Cover
  14. Position crankshaft to the compression TDC for cylinder 1. → WM 150502 CHECKING THE TIMING ON V6 DFI ENGINES
  15. Remove chain tensioner. → Removing Chain Tensioner
  16. Remove timing chains. → Removing Timing Chains
  17. Remove cylinder head. → Removing Cylinder Head
  18. Remove pistons. → Removing Pistons
  19. Remove vibration balancer. → 137619 REMOVING AND INSTALLING VIBRATION BALANCER (CRANKSHAFT PULLEY) ON V6 DFI ENGINES

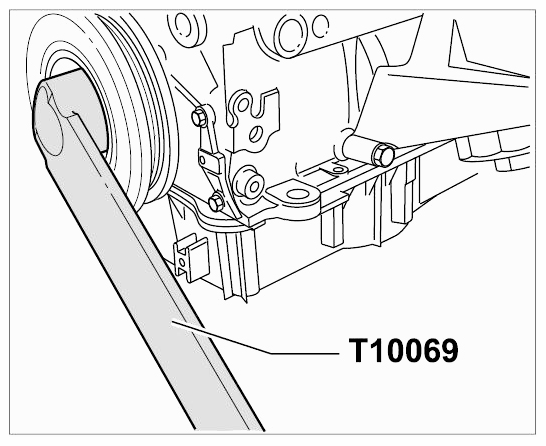

    Fig 2: Removing Vibration Balancer
    G09408990Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  20. Remove joint flange behind the vibration balancer.

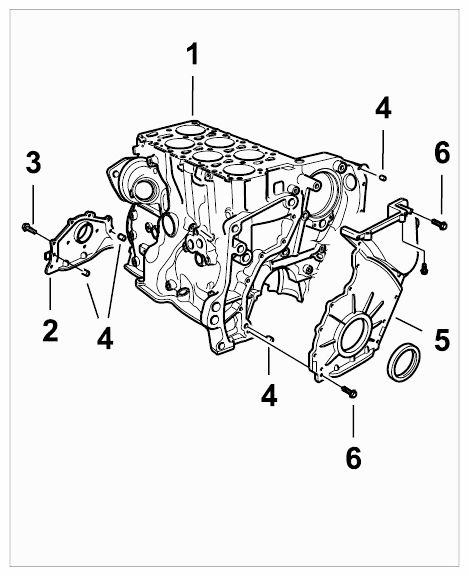

    Fig 3: Identifying Cylinder Block, Vibration Balancer Joint Flange, Lower Timing-Case Cover And Bolts
    G09408991Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. Cylinder block
    2. Vibration balancer joint flange
    3. Hexagon-head bolt on vibration balancer joint flange
    4. Straight pin
    5. Lower timing-case cover
    6. Fastening screw on lower timing case cover
    1. 20.1. Unscrew hexagon-head bolts -3-  .
    2. 20.2. Carefully lever off the joint flange -2-  with a screwdriver.
