Removing Chain Tensioner
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Danger of timing chain jumping out of position
- Risk of engine damage
→ Never turn the engine at the crankshaft without a chain tensioner.
→ Never turn the crankshaft against the direction of rotation.
→ Always counter the sprockets when performing assembly work on them.
→ Make sure that nobody starts the engine or pushes the vehicle while in gear when the chain tensioner is removed. To prevent this, stick a warning note on the steering wheel or ignition lock.
- Remove chain tensioner.

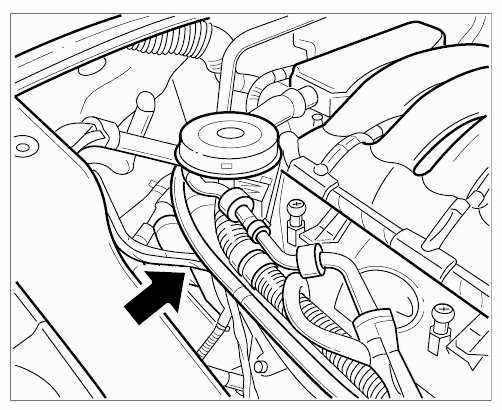

- 1.1. The chain tensioner is on the right side of the upper timing-case cover - arrow - .
