Removing Flywheel (Dual-Mass Flywheel)

Information

• Clean the crankshaft stub before installing the flywheel (remove rust).
• Use a special metal-polishing pad (e.g. Never Dull) for this.

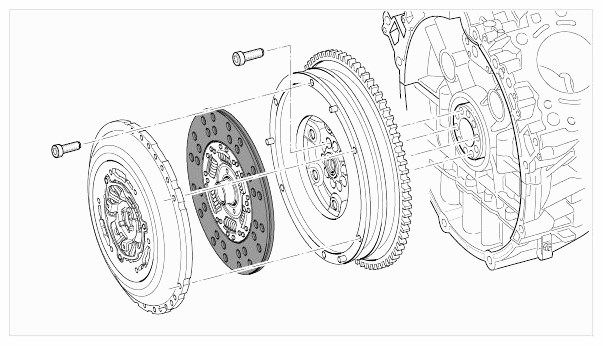

  Fig 1: Exploded View Of Clutch And Flywheel

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Block flywheel. To do this, attach a suitable toothed segment toothed segment 201a  or toothed segment 9538/1  to a screw hole in the crankcase so that at least one tooth engages with the starter teeth. Place a washer (approx. 5 mm) under the segment if necessary.

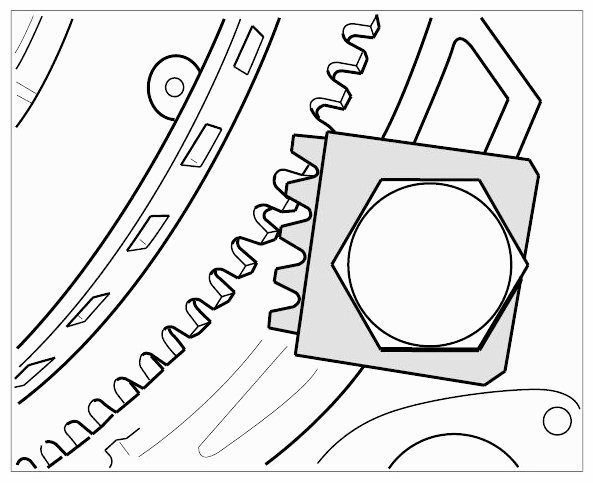

   Fig 2: Identifying Toothed Segment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   CAUTION: Heavy components

   • Risk of squashing

   → Wear personal protective gear.

   → Get someone to help if necessary.

   Information

   • To make it easier to re-install a used flywheel, use a felt-tip pen to mark the crankshaft stub and flywheel before removing it. This makes it easier to install it again later.
   • If the flywheel is stuck, loosen it by levering it at the sides with two screwdrivers and then remove it.
2. Remove flywheel. To do this, loosen the fastening screws crosswise.

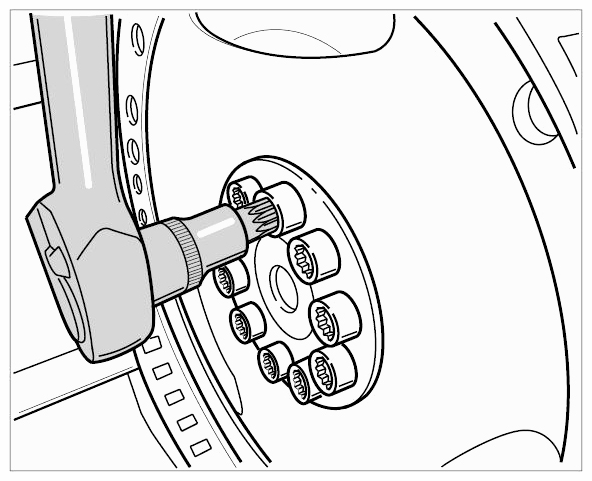

   Fig 3: Loosening Flywheel Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Take off flywheel and clean flange.
