Loosening Main Wire Harness In Engine Compartment At The Right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

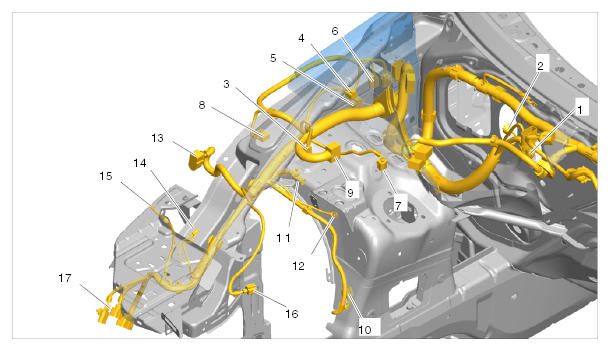

Fig 1: Overview Of Main Wire Harness In Engine Compartment At Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Connector For Pressure Sensor
2. Connector For Air Quality Sensor
3. Connector For Sensor For Body
4. Connector For Coolant Reservoir
5. Connector For Windscreen-Washer Reservoir
6. Connector For Windscreen-Washer Pump
7. Connector For Spring Strut
8. Connector For Tyre Pressure Monitoring (TPM) Transmitter
9. Connector For Hydraulic Unit
10. Connector For Level Sensor
11. Connector For ABS Wire Harness
12. Ground Point Under Hydraulic Unit
13. Connector For Main Headlights
14. Ground Point On Wheel Housing Behind Headlight
15. Connector For Side Direction Indicator Lights
16. Connector For Front Wire Harness On Lock Support
17. Three Connectors For Front Wire Harness In Front Apron
18. Connector For Wire Harness For Bonnet

Release and unplug electric plug connection on pressure sensor -1- . → REMOVING PRESSURE SWITCH - section on "Removing"
Release and unplug electric plug connection on air quality sensor -2- . → REMOVING AIR QUALITY SENSOR - section on "Removing"
Release and unplug electric plug connection for wire harness for bonnet -18- . Release connector from clip.
Release and unplug electric plug connection on sensor for body -3- . → REMOVING AND INSTALLING FRONT LEFT BODY ACCELERATION SENSOR - section on "Removing"
Release and unplug electric plug connection for spring strut -7- .
Release and unplug electric plug connection for Tyre Pressure Monitoring (TPM) transmitter -8- . → REMOVING CONTROL UNIT FOR TYRE PRESSURE MONITORING (TPM) - section on "Removing"
Release and unplug electric plug connection on hydraulic unit -9- . → REMOVING HYDRAULIC UNIT - section on "Removing"
Release and unplug electric plug connection on level sensor -10- . → REMOVING FRONT LEVEL SENSOR - section on "Removing"
Release and unplug electric plug connection on ABS wire harness -11- . → 976519 REMOVING AND INSTALLING WIRE HARNESS FOR ABS - section on "Removing"
Screw off fastening nut on ground point -12- under the hydraulic unit.
Screw off fastening nut on ground point -14- on wheel housing (behind headlight).
Release and unplug electric plug connection for connection point to front wire harness -16- at the lock support. → 971619 REMOVING AND INSTALLING FRONT WIRE HARNESS - section on "Removing"
Release and unplug three electric plug connections for connection point to front wire harness -17- . → 971519 REMOVING AND INSTALLING FRONT WIRE HARNESS - section on "Removing"

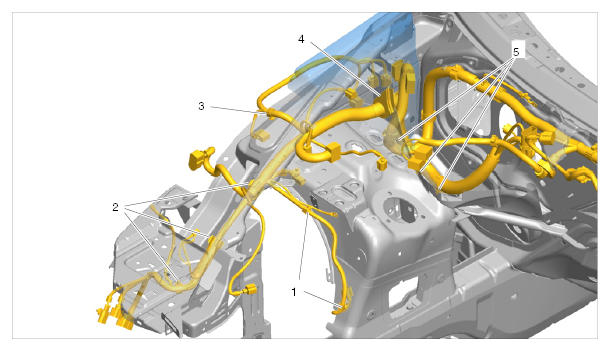

Fig 2: Identifying Fastening Points For Wire Harness In Engine Compartment At Right
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. Fastenings For Wiring For Level Sensor
2. Fastenings For Main Wire Harness In Engine Compartment
3. Line For Tyre Pressure Monitoring (TPM) Sensor
4. Rubber Sleeve In Cross Panel
5. Fastening For Connector For Wire Harness For Bonnet
6. Fastenings For Main Wire Harness In Plenum Panel
Loosen fastenings -1- for wiring for level sensor.
Loosen fastenings -2- for main wire harness in engine compartment.
Pull wiring for TPM sensor -3- through from the wheel housing to the engine compartment.
Pull rubber sleeve -4- in cross panel out of the body.
Loosen fastening -5- for connector for wire harness for bonnet.
Loosen fastenings -6- for main wire harness in plenum panel.
