Removing Front Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .
These must be carried out as a mirror image of the steps shown for the front and rear .

Information

In running gear with level adjustment, a level sensor is installed on each spring strut .
The level sensor is screwed to the body and upper control arm .

Turn the steering as far as required until you have easy access to the level sensor.

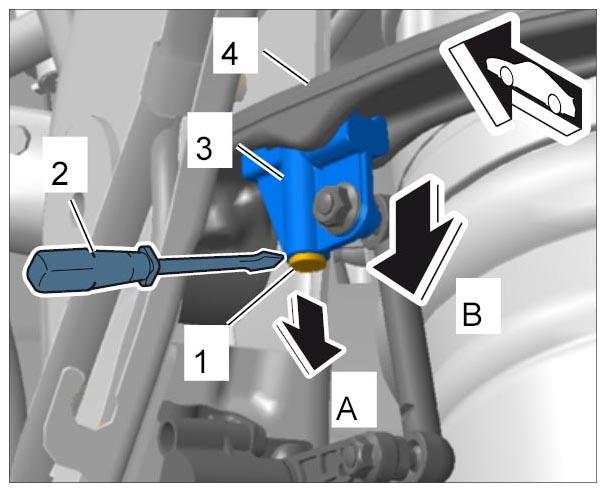

Loosen locking pin -1- using a suitable tool -2- and remove it from the holder -3- (-A- ).

Fig 1: Removing Level Sensor Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press holder -3- out of the upper trailing arm -4- (-B- ).

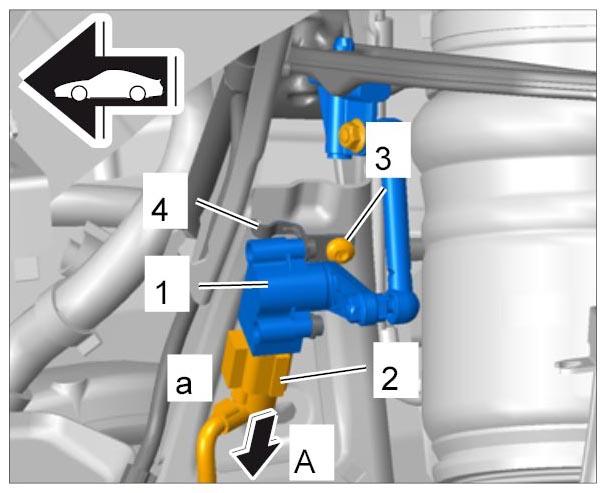

Release electric plug connection -2- (-a- ) and pull it off -A- .

Fig 2: Identifying Sensor For Leveling System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -3- .
Remove level sensor -1- and holder -4- .
