Removing Pressure Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

Information

Support the refrigerant line with your hand close to the pressure switch when screwing the pressure switch on and off.

Loosen the left fastening screw (in direction of travel) -1- and remove the water drip pan -2- .

Fig 1: Identifying DME Control Unit Bracket With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

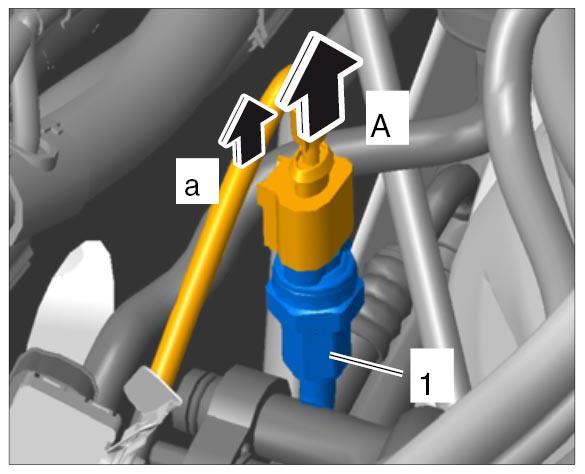

Release electric plug connection -a- and disconnect it -A- .

Fig 2: Removing Pressure Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew pressure switch -1- .
