Removing Air Quality Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

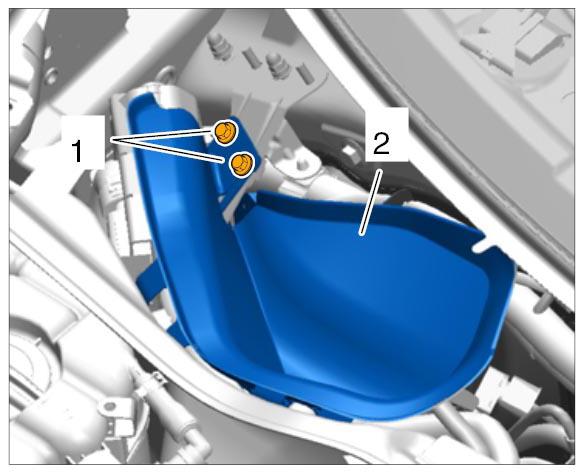

Loosen left fastening screw -1- (in direction of travel) on DME control unit bracket and remove water drip pan -2- .

Fig 1: Identifying DME Control Unit Bracket With Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

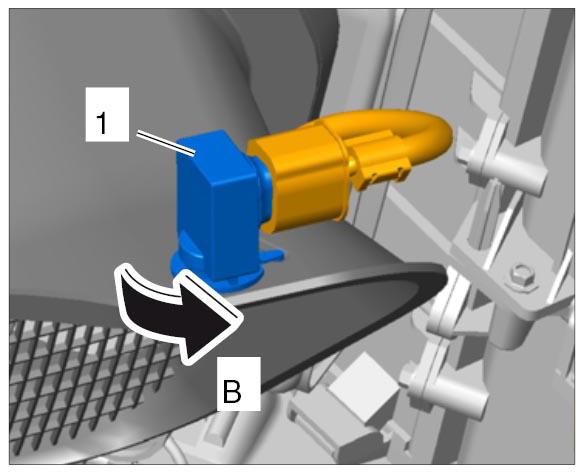

Turn air quality sensor -1- (-B- ) and move it to the rear to remove it.

Fig 2: Removing Air Quality Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

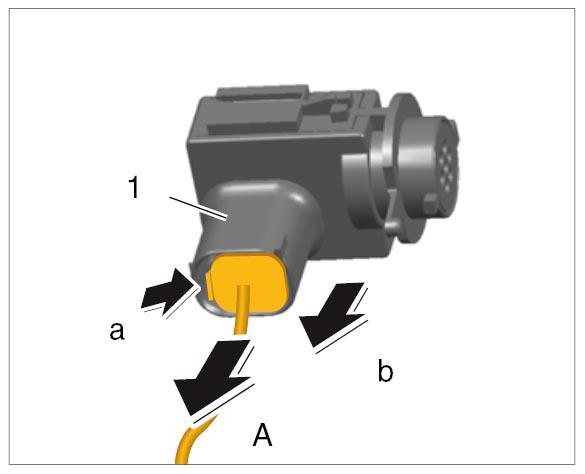

Release electric plug connection in order to release the locking mechanism using a screwdriver -a- and slide circlip -1- in direction of arrow -b- , then disconnect the connector -A- .

Fig 3: Disconnecting Connector From Air Quality Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
