Removing And Installing Front Left Body Acceleration Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The front left body acceleration sensor is located on the left wheel housing in the engine compartment.

  1. Remove front trim panel (engine compartment) at the left → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT) .
  2. Disconnect connector -1-  on the body acceleration sensor.
  3. Unscrew fastening screw -2-  .

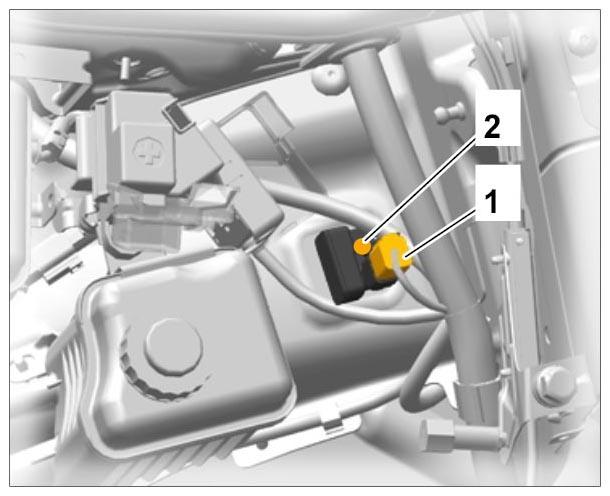

    Fig 1: Identifying Front Left Body Acceleration Sensor
    G09935774Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Installation is performed in reverse order.
