Removing Control Unit For Tyre Pressure Monitoring (TPM)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

The TPM control unit is located on the rear axle on the left anti-roll-bar mount.

The antenna is integrated in the TPM control unit. For more information, see → 4X00IN GENERAL INFORMATION ON THE TYRE PRESSURE MONITORING SYSTEM (TPM) .

Disconnect electric line at the holder -1- .
Release connector -2- and disconnect it.
Unclip TPM control unit with holder -4- on the back of the holder -3- and disconnect it -arrow- .

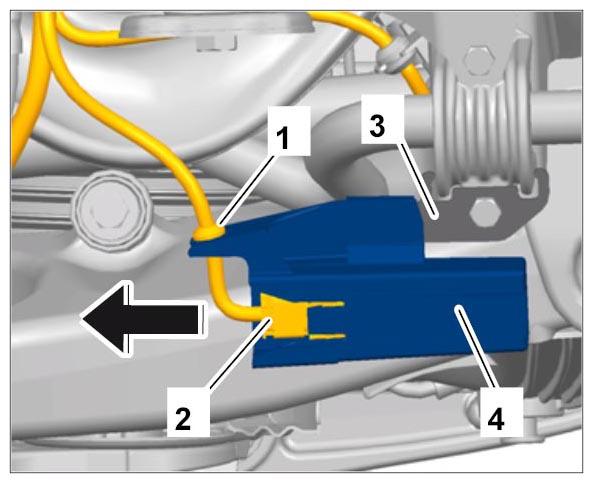

Fig 1: Locating Mounting For TPM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take TPM control unit -1- out of the holder -2- (-arrow- ).

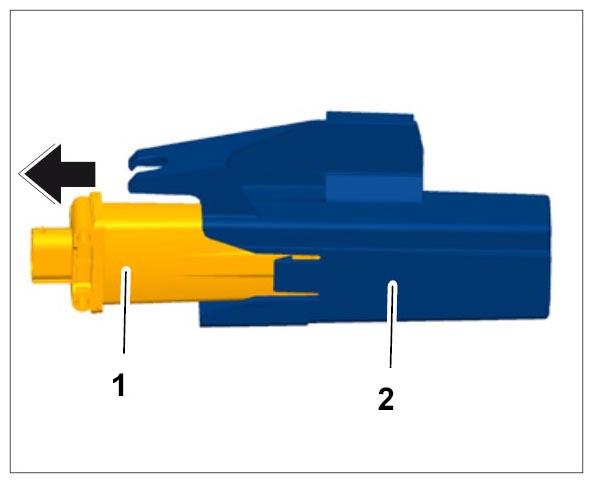

Fig 2: Removing TPM Control Unit With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
