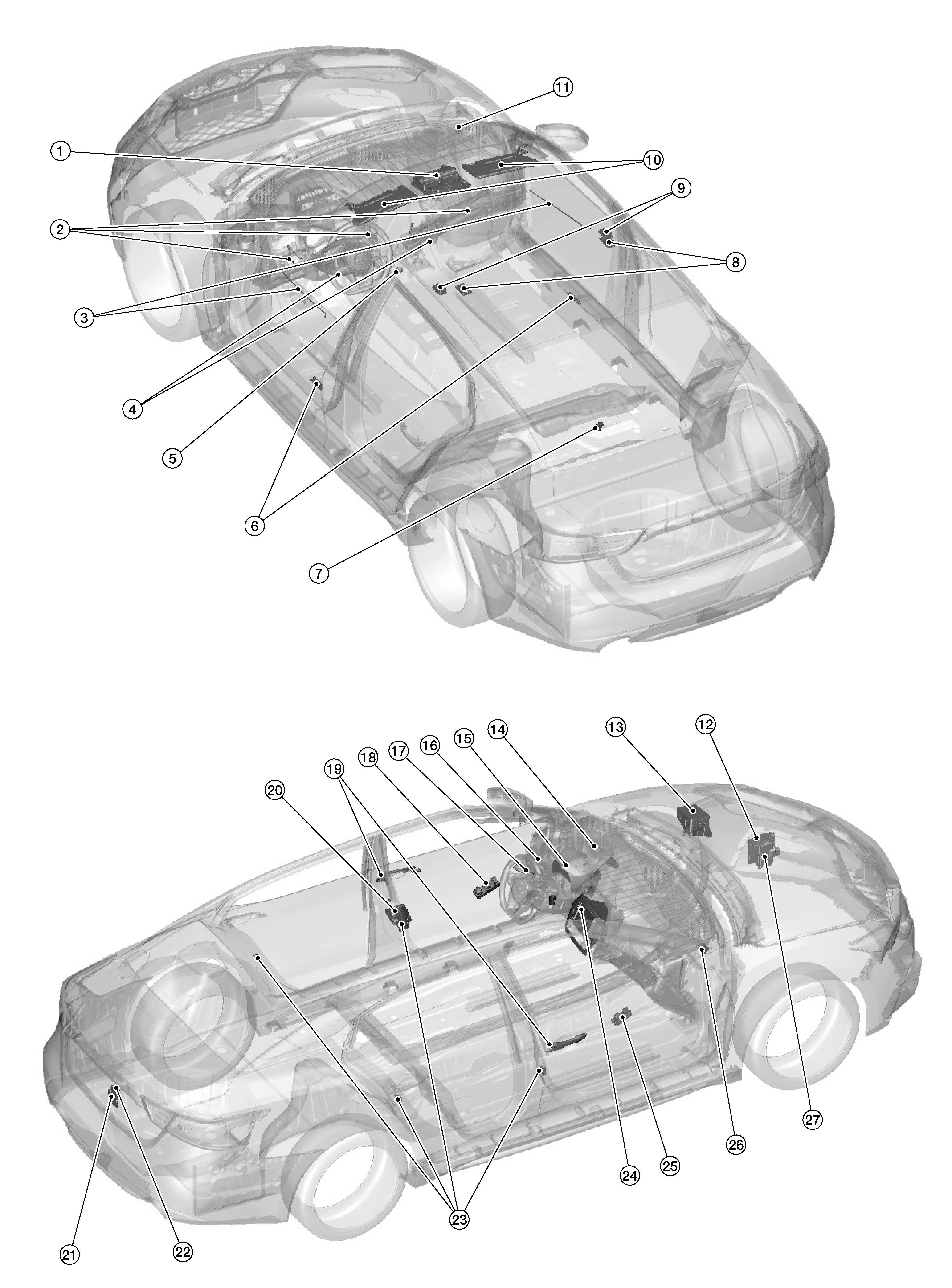

Components Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component		Function
1.	Front room/map lamp assembly	Map lamp	Refer to Bulb Specifications .
		Console lamp
2.	Mood lamp (instrument panel LH outer/LH inner/RH)		Refer to Bulb Specifications .
3.	Mood lamp (front door armrest LH/RH)		Refer to Bulb Specifications .
4.	Foot lamp		Refer to Bulb Specifications .
5.	Push-button ignition switch		Provides ignition switch status to the BCM. Refer to Components Location for detailed installation location.
6.	Front step lamp		Refer to Bulb Specifications .
7.	Trunk room lamp		Refer to Bulb Specifications .
8.	Personal lamp rear ¹		Refer to Bulb Specifications .
9.	Personal lamp rear ²		Refer to Bulb Specifications .
10.	Vanity mirror lamp		Refer to Bulb Specifications .
11.	Optical sensor		Refer to Components Location (LED head lamp) or Components Location (halogen head lamp).
12.	ECM		Transmits cranking signal to combination meter (via CAN communication). Refer to Components Location for detailed installation location.
13.	IPDM E/R		Controls the integrated relay according to the request signal from BCM (via CAN communication). Refer to Components Location for detailed installation location.
14.	BCM		Activates the interior room lamp timer depending on the vehicle condition to turn the interior room lamps ON/OFF. Operates the interior room lamp battery saver depending on the vehicle condition to turn interior room lamps OFF. Detects each switch condition by the combination switch reading function. Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then transmits request signal to IPDM E/R and combination meter (via CAN communication). Refer to Components Location for detailed installation location.
15.	Combination meter		Controls the meter illumination according to the request signal from BCM (via CAN communication). Refer to Components Location for detailed installation location.
16.	Meter control switch		Refer to Components Location for detailed installation location
17.	Combination switch (lighting & turn signal switch)		Refer to Components Location for detailed installation location.
18.	Main power window and door lock/unlock switch		Refer to Components Location for detailed installation location.
19.	Front door request switch		Refer to Components Location for detailed installation location.
20.	Front door lock assembly LH (lock status switch)		Refer to Components Location for detailed installation location.
21.	Trunk lamp switch and trunk release solenoid (trunk lamp switch)		Refer to Components Location for detailed installation location.
22.	Trunk opener request switch		Refer to Components Location for detailed installation location.
23.	Door switch		Refer to Components Location for detailed installation location.
24.	AV control unit		Controls the brightness of NAVI display according to the request signal from BCM. Refer to Components Location (NAVI with BOSE) or Components Location (NAVI without BOSE) for detailed installation location.
25.	Power window and door lock/unlock switch RH		Refer to Components Location for detailed installation location.
26.	Remote keyless entry receiver		Refer to Components Location for detailed installation location.
27.	TCM		Transmits shift position signal to BCM (via CAN communication). Refer to Components Location for detailed installation location.

¹ : without moonroof

² : with moonroof
