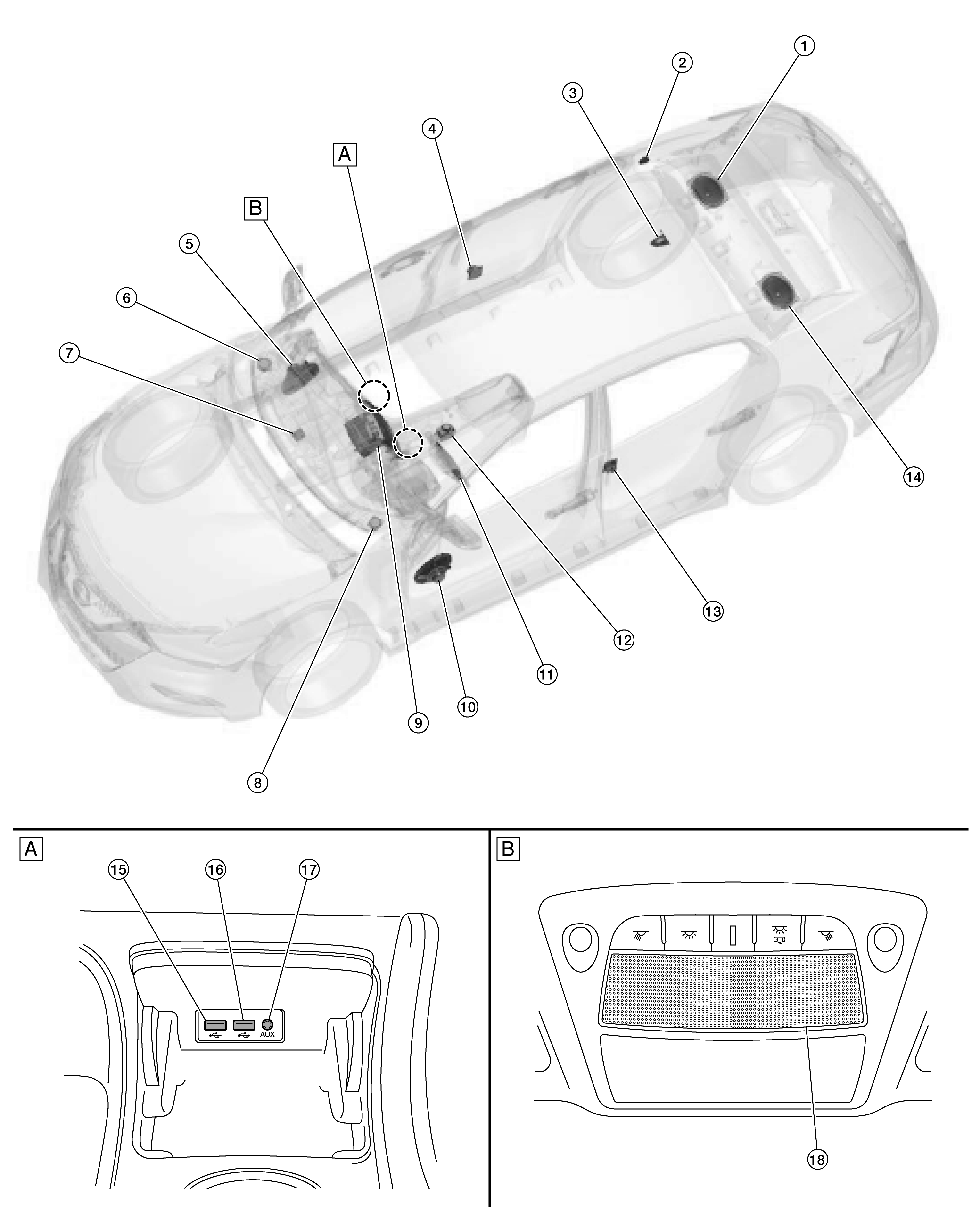

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
View of instrument panel lower console |
B. |
View of overhead console |
|
No. |
Component |
Function |
|
1. |
Rear speaker RH |
Refer to Speakers . |
|
2. |
Antenna amp. |
Refer to Antennas, Antenna Amp. and Antenna Feeder . |
|
3. |
Satellite antenna |
|
|
4. |
Rear door speaker RH |
Refer to Speakers . |
|
5. |
Front door speaker RH |
|
|
6. |
Tweeter RH |
|
|
7. |
GPS antenna |
Refer to Antennas, Antenna Amp. and Antenna Feeder . |
|
8. |
Tweeter LH |
Refer to Speakers . |
|
9. |
AV control unit |
Refer to AV Control Unit . |
|
10. |
Front door speaker RH |
Refer to Speakers . |
|
11. |
Steering switches |
Refer to Steering Switches . |
|
12. |
Multifunction switch |
Refer to Multifunction Switch . |
|
13. |
Rear door speaker LH |
Refer to Speakers . |
|
14. |
Rear speaker LH |
|
|
15. |
USB interface-1 |
Refer to USB Interfaces and AUX In Jack . |
|
16. |
USB interface-2 |
|
|
17. |
AUX in jack |
|
|
18. |
Microphone |
