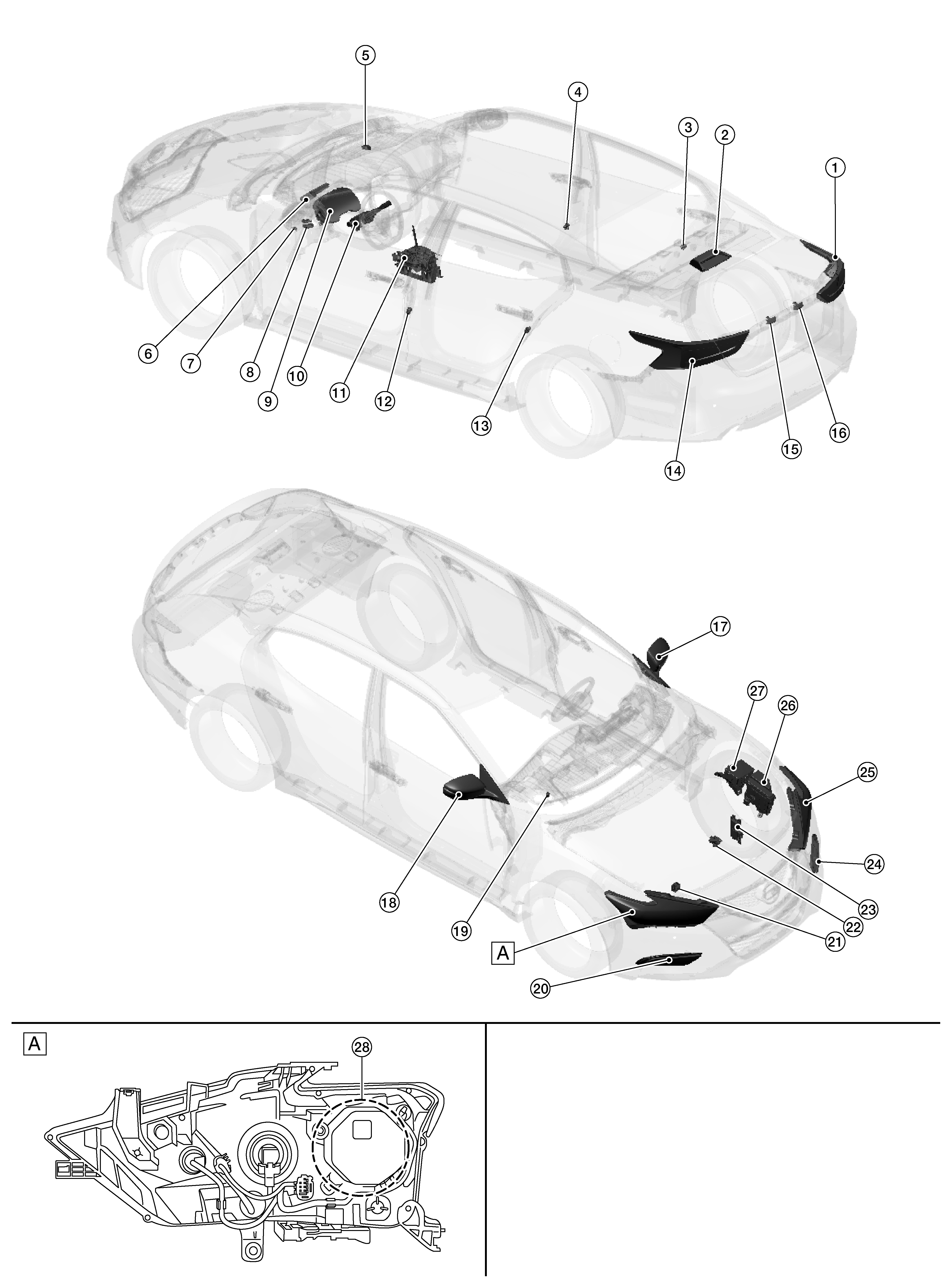

Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

A.	View with front combination lamp RH removed

No.	Part	Function
1.	Rear combination lamp RH	Refer to Bulb Specifications .
2.	High-mounted stop lamp	Refer to Bulb Specifications .
3.	Rear door switch RH	Transmits the door open signal to the BCM to operate the autolight system. Refer to Component Parts Location for detailed installation location.
4.	Front door switch RH	Transmits the door open signal to the BCM to operate the autolight system. Refer to Component Parts Location for detailed installation location.
5.	Hazard switch	Refer to Hazard Switch .
6.	BCM	Detects each switch condition by the combination switch reading function. Judges that the exterior lamps are turned ON according to the vehicle condition. Requests the headlamp (HI/LO), tail lamp and front fog lamp ON to IPDM E/R (via CAN communication). Requests high beam indicator lamp ON to the combination meter (via CAN communication). Judges the outside brightness from the optical sensor signal. Judges the ON/OFF timing according to the vehicle condition. Judges the ON/OFF status of the exterior lamp according to the outside brightness and the vehicle condition. Refer to Component Parts Location for detailed installation location.
7.	Parking brake switch	Transmits the parking brake switch signal to the combination meter to operate the daytime running light system. Refer to Component Parts Location for detailed installation location.
8.	Stop lamp switch	Supplies ground to the stop lamp relay to illuminate the stop lamps. Refer to Component Parts Location (Without ICC) or Component Parts Location (With ICC) for detailed installation location.
9.	Combination meter	Refer to System Description . Refer to Component Parts Location for detailed installation location.
10.	Combination switch (lighting and turn signal switch)	Refer to System Description .
11.	CVT shift selector	Refer to Component Parts Location for detailed installation location.
12.	Front door switch LH	Transmits the door open signal to the BCM to operate the autolight system. Refer to Component Parts Location .
13.	Rear door switch LH	Transmits the door open signal to the BCM to operate the autolight system. Refer to Component Parts Location .
14.	Rear combination lamp LH	Refer to Bulb Specifications .
15.	License plate lamp LH	Refer to Bulb Specifications .
16.	License plate lamp RH	Refer to Bulb Specifications .
17.	Door mirror LH (turn signal lamp)	Refer to Bulb Specifications .
18.	Door mirror RH (turn signal lamp)	Refer to Bulb Specifications .
19.	Optical sensor	Refer to Optical Sensor .
20.	Front fog lamp RH	Refer to Bulb Specifications .
21.	Daytime running light relay	Supplies voltage to the daytime running lamps according to request from IPDM E/R. Refer to Daytime Running Light Relay .
22.	Transmission range switch	Refer to Transmission Range Switch . Refer to Component Parts Location for detailed installation location.
23.	TCM	Refer to TCM . Refer to Component Parts Location for detailed installation location.
24.	Front fog lamp LH	Refer to Bulb Specifications .
25.	Front combination lamp LH	Refer to Bulb Specifications .
26.	Relay box (stop lamp relay)	Supplies voltage to the stop lamps according to stop lamp switch operation.
27.	IPDM E/R	Supplies voltage to the load according to the request from BCM (via CAN communication). Refer to Component Parts Location for detailed installation location.
28.	LED headlamp control module	LED headlamp control module is integrated into the front combination lamp and turns the LED headlamp ON according to the request from IPDM E/R).
