Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

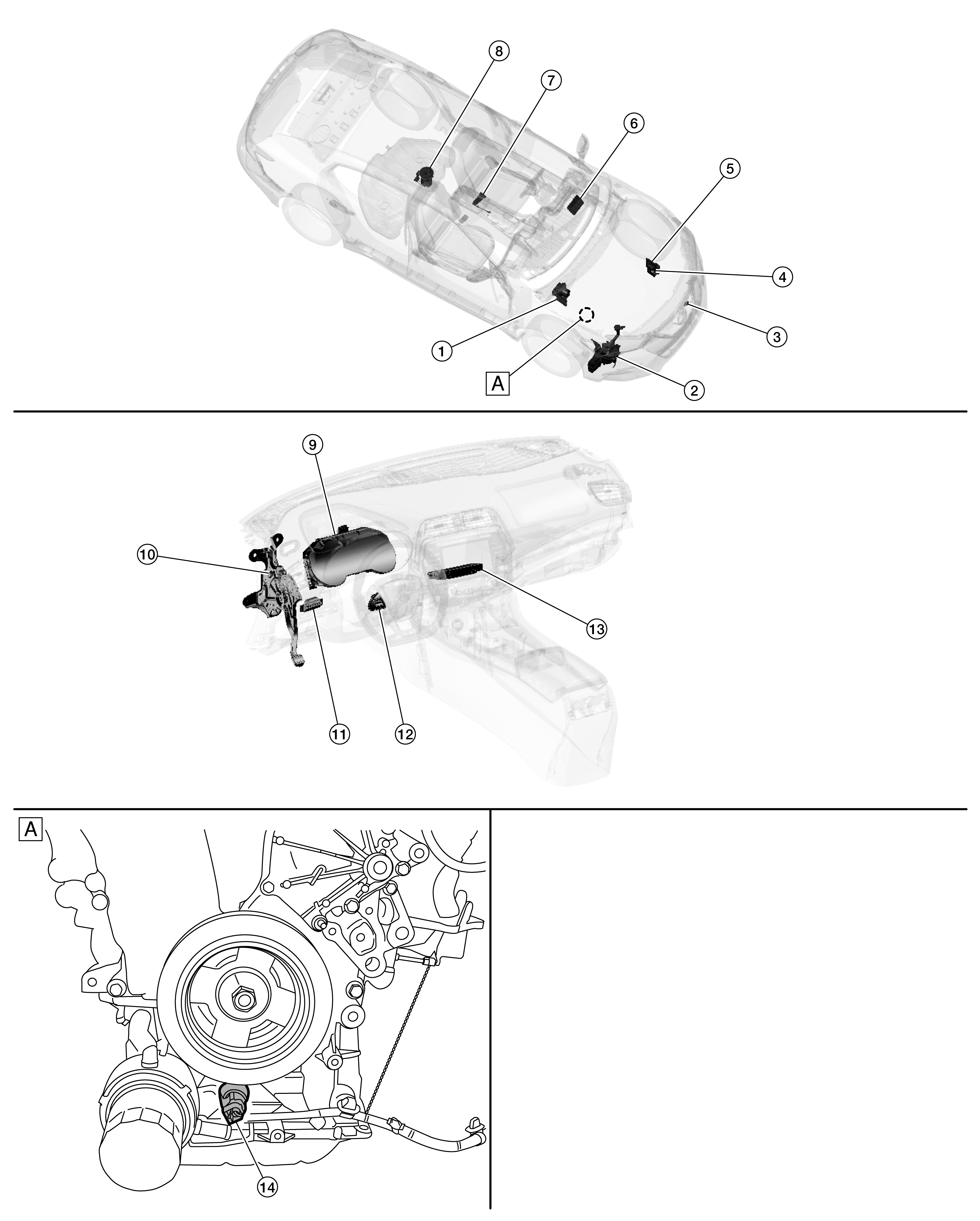

A.	View of front engine assembly (view with engine removed)

No.	Component	Function
1.	ABS actuator and electric unit (control unit)	Transmits each signal to the combination meter via CAN communication. Refer to System Description (with ICC) or System Description (without ICC). Refer to Component Parts Location (with ICC) or Component Parts Location (without ICC) for detailed installation location.
2.	Washer fluid level switch	Transmits the washer fluid level switch signal to the combination meter. Refer to Component Parts Location for detailed installation location.
3.	Ambient sensor	Transmits the ambient sensor signal to the A/C auto amp. Refer to Component Parts Location for detailed installation location.
4.	TCM	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Parts Location for detailed installation location.
5.	ECM	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Parts Location for detailed installation location.
6.	BCM	Transmits each signal to the combination meter via CAN communication. Refer to System Description . Refer to Component Parts Location for detailed installation location.
7.	Seat belt buckle switch LH	Transmits the seat belt buckle switch LH signal to the combination meter.
8.	Fuel level sensor unit and fuel pump (fuel level sensor)	Transmits the fuel level sensor signal to the combination meter.
9.	Combination meter	Refer to System Description .
10.	Parking brake switch	Transmits the parking brake switch signal to the combination meter.
11.	Meter control switch	Refer to Switch Name and Function .
12.	Steering switches	Refer to Switch Name and Function .
13.	A/C auto amp.	Transmits the ambient sensor signal to the combination meter via CAN communication. Refer to Component Parts Location for detailed installation location.
14.	Engine oil pressure sensor	Transmits the engine oil pressure sensor signal to the ECM.
