Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Courtesy of NISSAN NORTH AMERICA, INC.

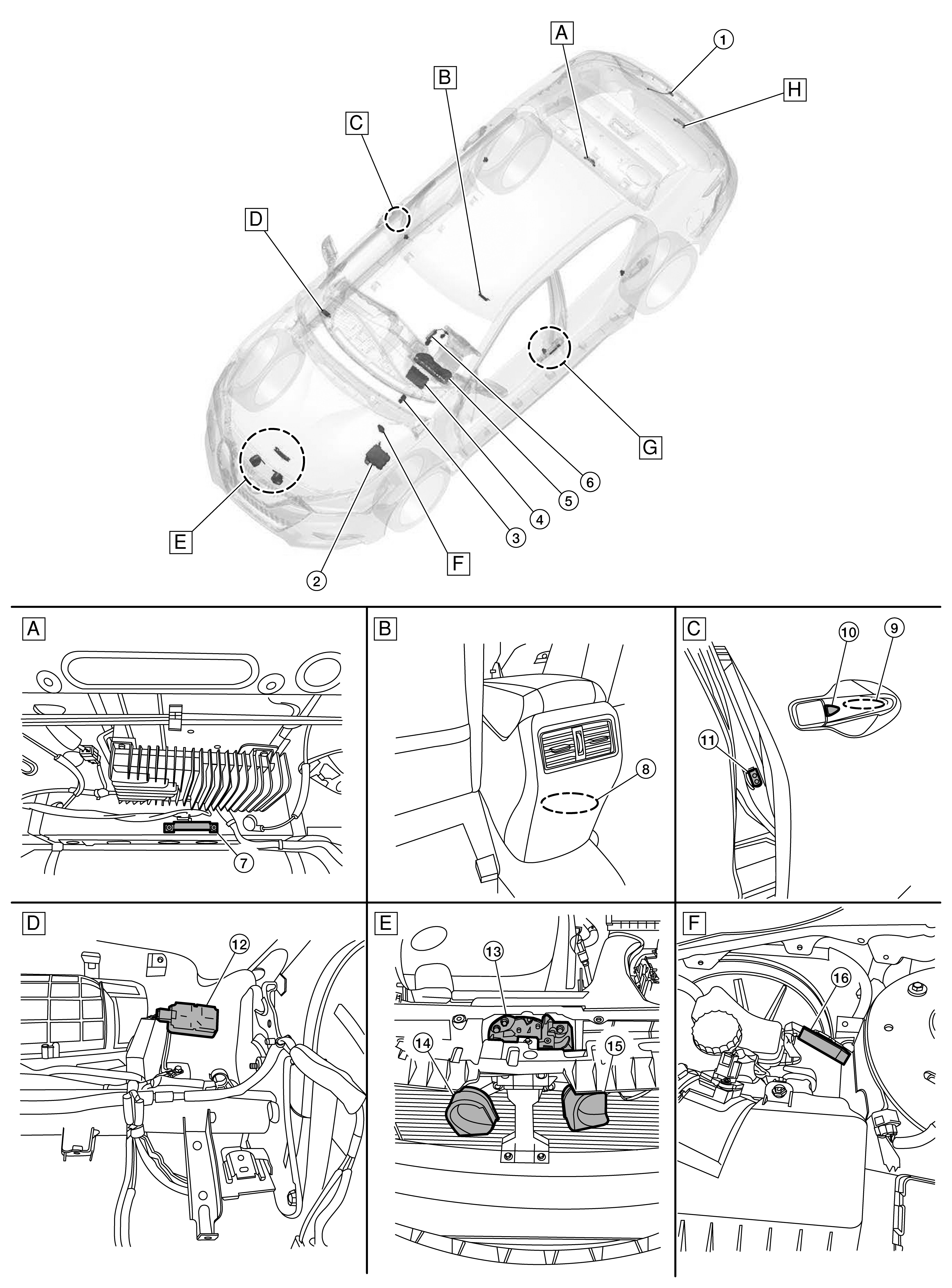

A.	View of under the rear parcel shelf	B.	View of rear center console	C.	View of right front door
D.	View of right side of dash with instrument panel removed	E.	View with front grille removed	F.	View of left side of the engine compartment

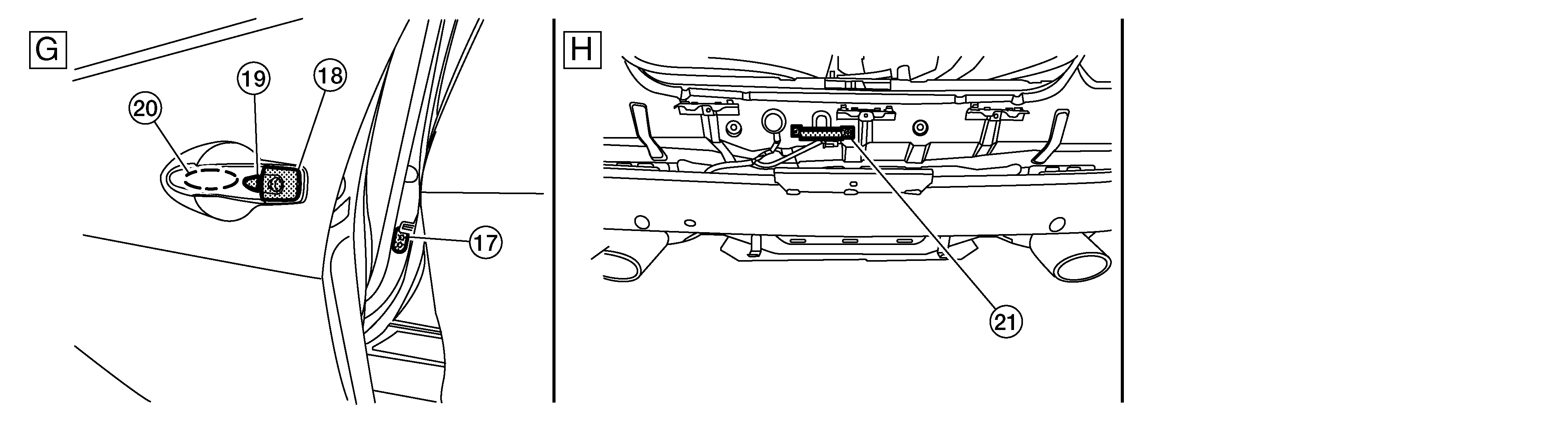

G.	View of left front door	H.	View with rear bumper fascia removed

No.	Component	Function
1.	Trunk opener request switch	Trunk opener request switch transmits door lock/unlock request signal to the BCM.
2.	IPDM E/R	IPDM E/R detects push-button ignition switch (push switch) status, and transmits push-button ignition switch status signal (CAN) to BCM. Refer to Component Parts Location .
3.	Stop lamp switch	Stop lamp switch detects that brake pedal is depressed, and transmits the signal to BCM. Refer to Component Parts Location (With ICC) or Component Parts Location (Without ICC).
4.	BCM	BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] and VEHICLE SECURITY SYSTEM. BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key is carried into the detection area of inside key antenna and push-button ignition switch is pressed. If the ID verification result is OK, ignition switch operation is available. Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and ECM. If the ID verification result is OK, ECM can start engine. Refer to Component Parts Location for detailed installation location.
5.	Combination meter	Combination meter transmits the vehicle speed signal to BCM via CAN communication. BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit) via CAN communication. BCM compares both signals to detect the vehicle speed. Security indicator lamp is located on combination meter. Security indicator lamp blinks when ignition switch is in any position other than ON to warn that NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS [NVIS (NATS)] is on board. Refer to Component Parts Location .
6.	CVT shift selector	CVT shift selector detects shift lever status, transmits detention switch signal to BCM. Refer to Component Parts Location .
7.	Inside key antenna (parcel shelf)	Inside key antenna (parcel shelf) detects whether Intelligent Key is inside the vehicle or not and then transmits the signal to the BCM.
8.	Inside key antenna (console)	Inside key antenna (console) detects whether Intelligent Key is inside the vehicle or not and then transmits the signal to the BCM. Refer to Inside Key Antenna (Console) .
9.	Outside key antenna RH	Outside key antenna (RH) detects whether Intelligent Key is outside the vehicle or not and then transmits the signal to the BCM. Refer to Outside Key Antenna (RH) .
10.	Door request switch RH	Door request switch transmits door lock/unlock request signal to the BCM.
11.	Door switch RH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
12.	Remote keyless entry receiver	Remote keyless entry receiver receives button operation signal and key ID signal of Intelligent Key and then transmits them to BCM. Refer to Remote Keyless Entry Receiver .
13.	Hood switch	Hood switch detects hood open/close condition and then transmits ON/OFF signal to BCM.
14.	Horn	IPDM E/R energizes the horns when the security system is activated after door lock.
15.	Horn	IPDM E/R energizes the horns when the security system is activated after door lock.
16.	Intelligent Key warning buzzer	Intelligent Key warning buzzer warns the user, who is outside the vehicle, of operation confirmation according to Intelligent Key operation and door request switch operation or of an inappropriate operation.
17.	Door switch LH	Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.
18.	Key switch	Key switch detects door lock/unlock condition and then transmits lock/unlock signal to BCM.
19.	Door request switch LH	Door request switch transmits door lock/unlock request signal to the BCM.
20.	Outside key antenna LH	Outside key antenna (LH) detects whether Intelligent Key is outside the vehicle or not, and then transmits the signal to the BCM. Refer to Outside Key Antenna (LH) .
21.	Outside key antenna (rear bumper)	Outside key antenna (rear bumper) detects whether Intelligent Key is outside the vehicle or not and then transmits the signal to the BCM. Refer to Outside Key Antenna (Rear Bumper) .
