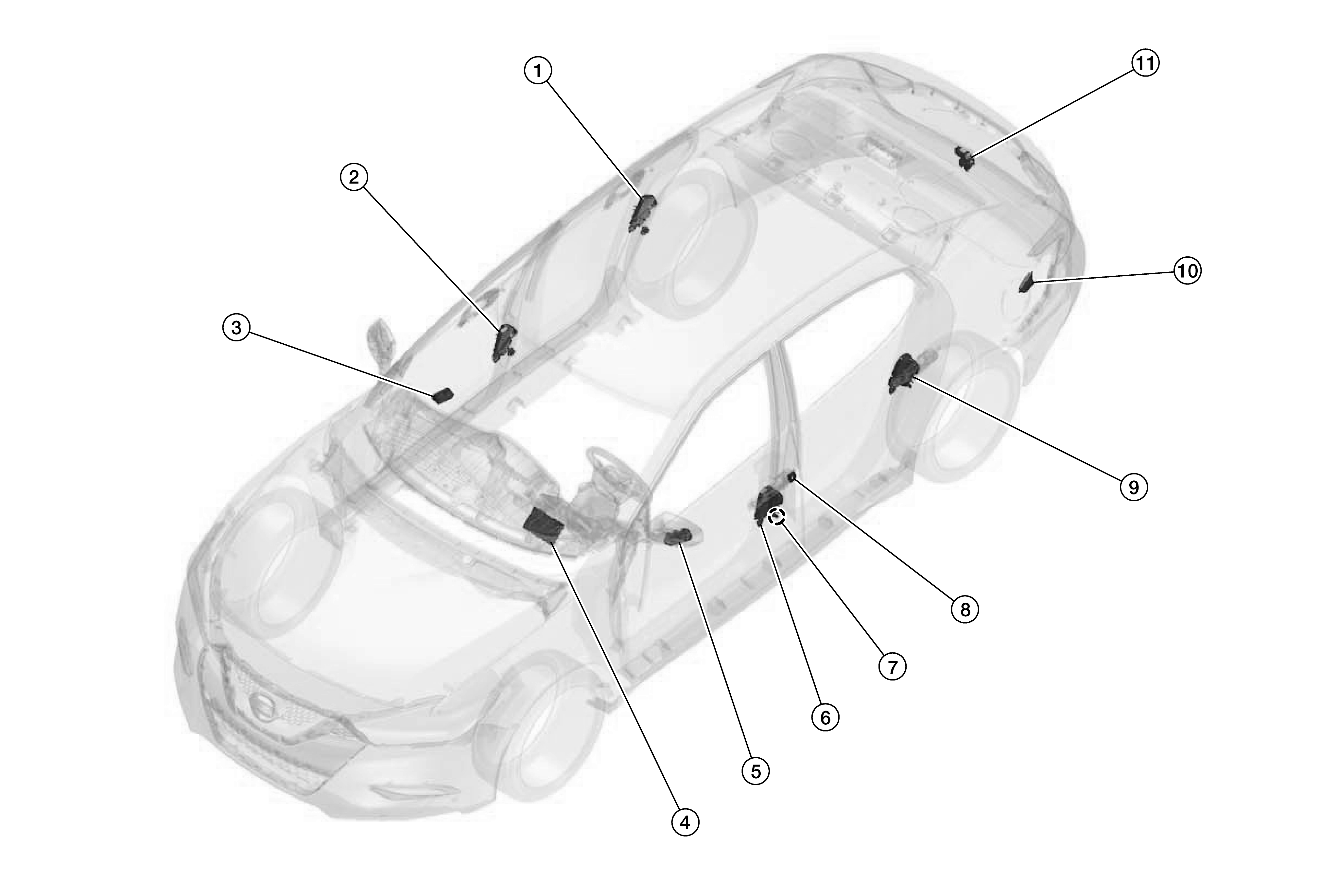

Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Component	Function
1.	Rear door lock actuator RH	Rear door lock actuator locks/unlocks the rear door latch assembly.
2.	Front door lock actuator RH	Front door lock actuator locks/unlocks the front door latch assembly.
3.	Power window and door lock/unlock switch RH	Door Lock and Unlock Switch (Passenger Side)
4.	BCM	BCM controls the door lock system. Refer to Component Parts Location for detailed installation location.
5.	Main power window and door lock/unlock switch	Door Lock and Unlock Switch (Driver Side)
6.	Front door lock assembly LH	Front Door Lock Assembly (LH)
7.	Front door switch LH	Front Door Switch
8.	Key cylinder switch (if equipped)	Key cylinder switch transmits the lock/unlock request signal to the BCM.
9.	Rear door lock actuator LH	Rear door lock actuator locks/unlocks the rear door latch assembly.
10.	Fuel lid door lock actuator	Fuel lid door lock actuator unlocks the fuel lid door.
11.	Trunk lid opener actuator	Trunk lid opener actuator opens the trunk lid with a request signal from the BCM.
