Removal and Installation - Non-XD Models: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine coolant escaping from water inlet. Wrap a thick cloth around the cap. Slowly turn it a quarter of a turn to release built-up pressure. Carefully remove radiator cap by turning it all the way. Note that the reservoir tank cap side is also under pressure.
NOTE: When removing components such as hoses, tube/lines, etc., cap or plug openings to prevent fluid from spilling.
  1. Remove front under cover. Refer to Removal and Installation .
  2. Drain engine coolant from radiator. Refer to Changing Engine Coolant .
    CAUTION:
    • Perform this step when the engine is cold.
    • Do not spill engine coolant on drive belts.
  3. Remove active grille shutter. Refer to Removal and Installation .
  4. Release clips using suitable tool, then remove radiator core support cover. Refer to Exploded View - XD Models .

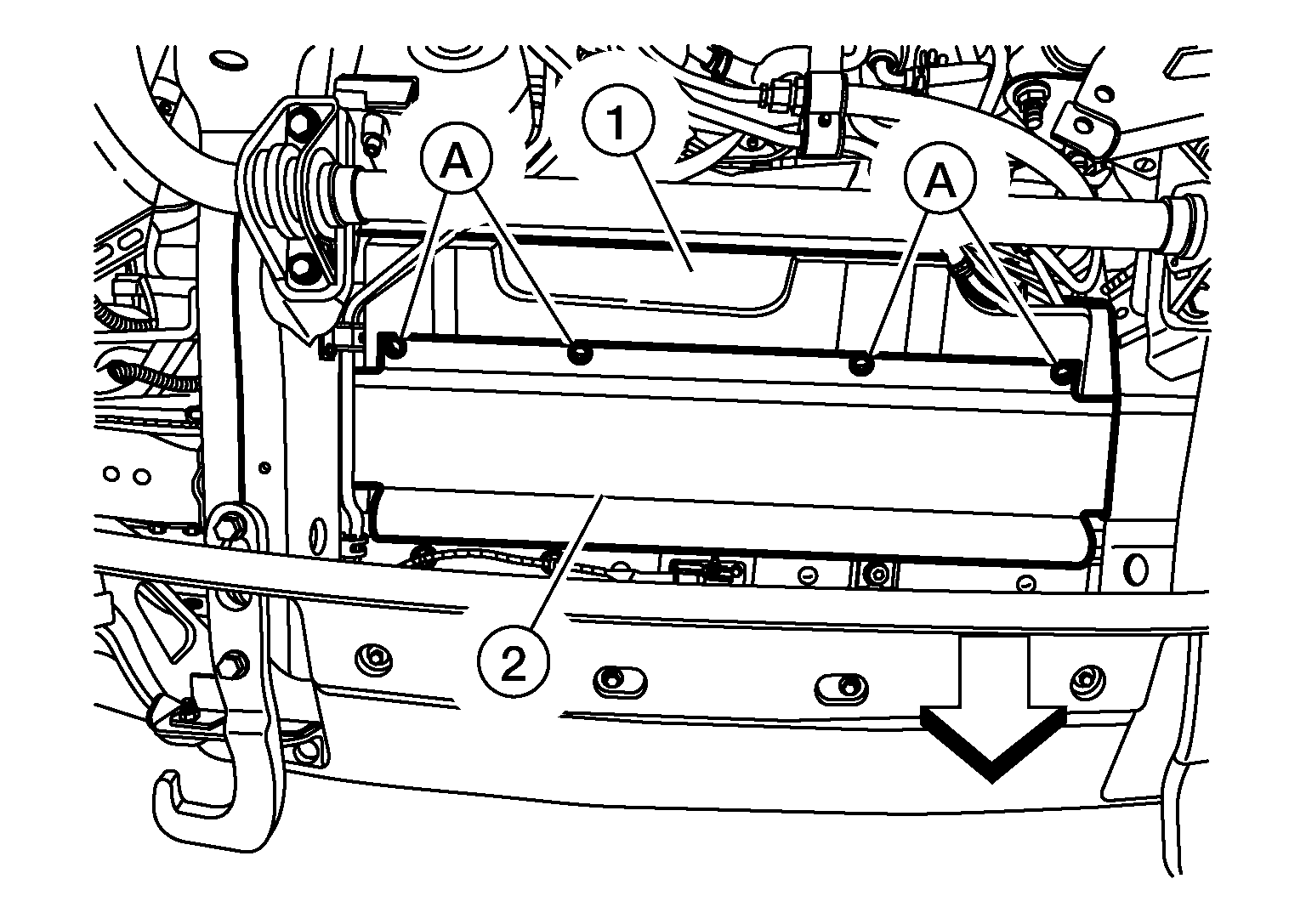

  5. Remove clips (A) connecting the radiator lower cover (2) to the fan shroud [upper (1)].
    GNSALBIA2978Z-978Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
  6. Release clips using suitable tool, then remove radiator lower cover. Refer to Exploded View - XD Models .
  7. Remove hood lock support stay using the following steps;

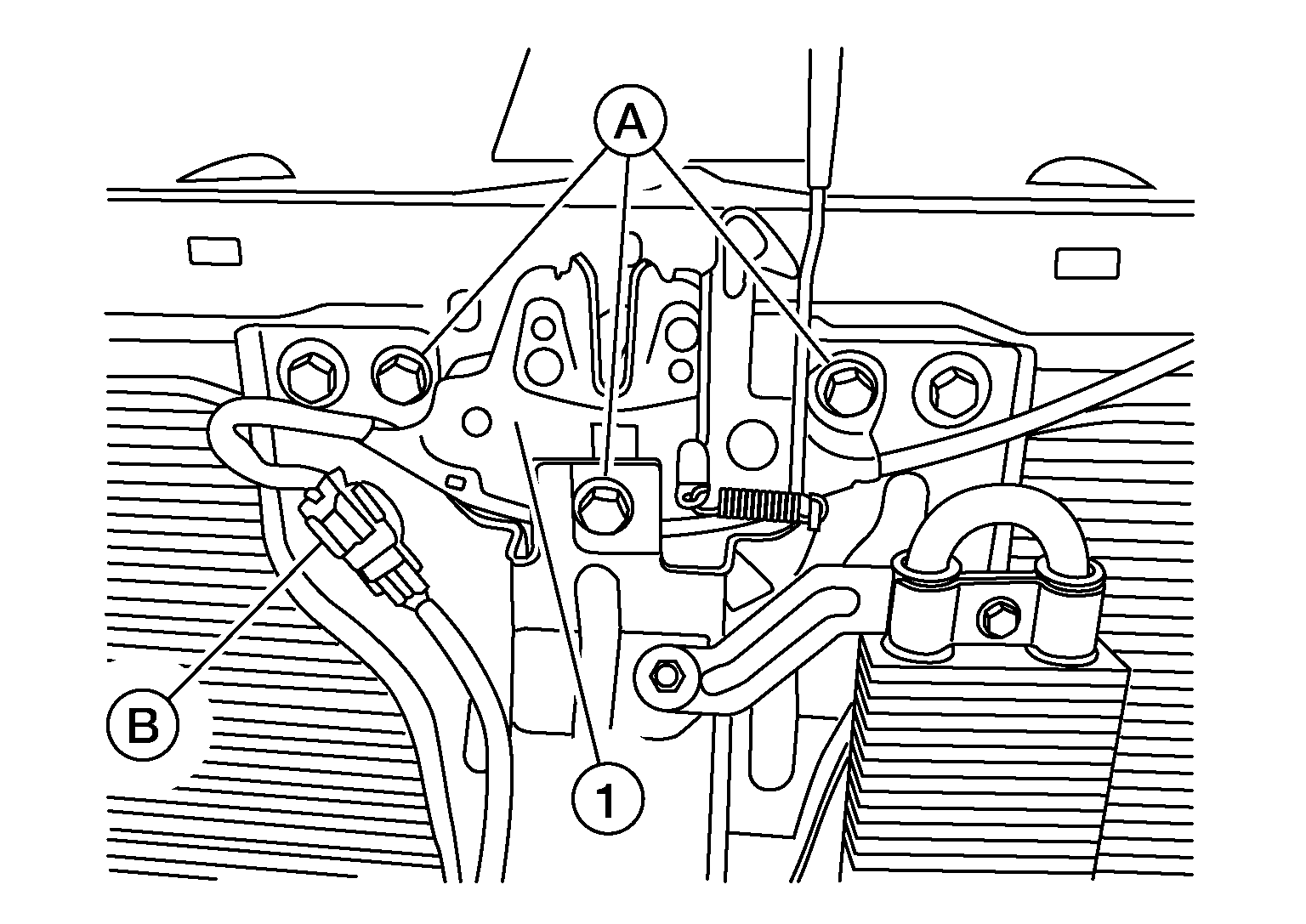

    1. Remove hood lock bolts (A).
      GNSALKIA4226Z-226Courtesy of NISSAN NORTH AMERICA, INC.
    2. Disconnect harness connector (B) from hood lock (1) and place aside.
    3. Release harness clips from hood lock support stay.

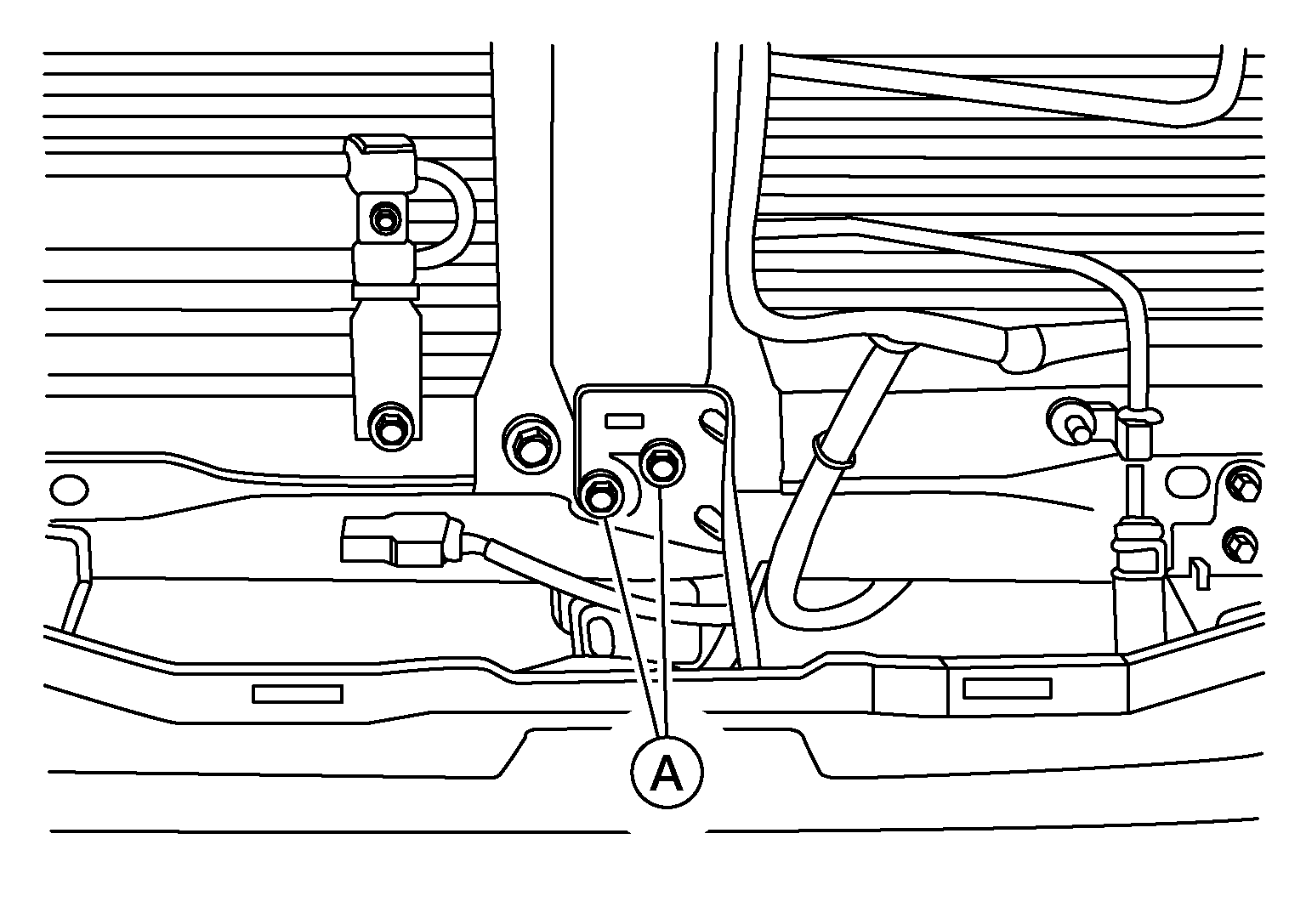

    4. Remove bolts (A).
      GNSALBIA3280Z-280Courtesy of NISSAN NORTH AMERICA, INC.
    5. Remove hood lock support stay bolts, then remove hood lock support stay. Refer to Exploded View - XD Models .

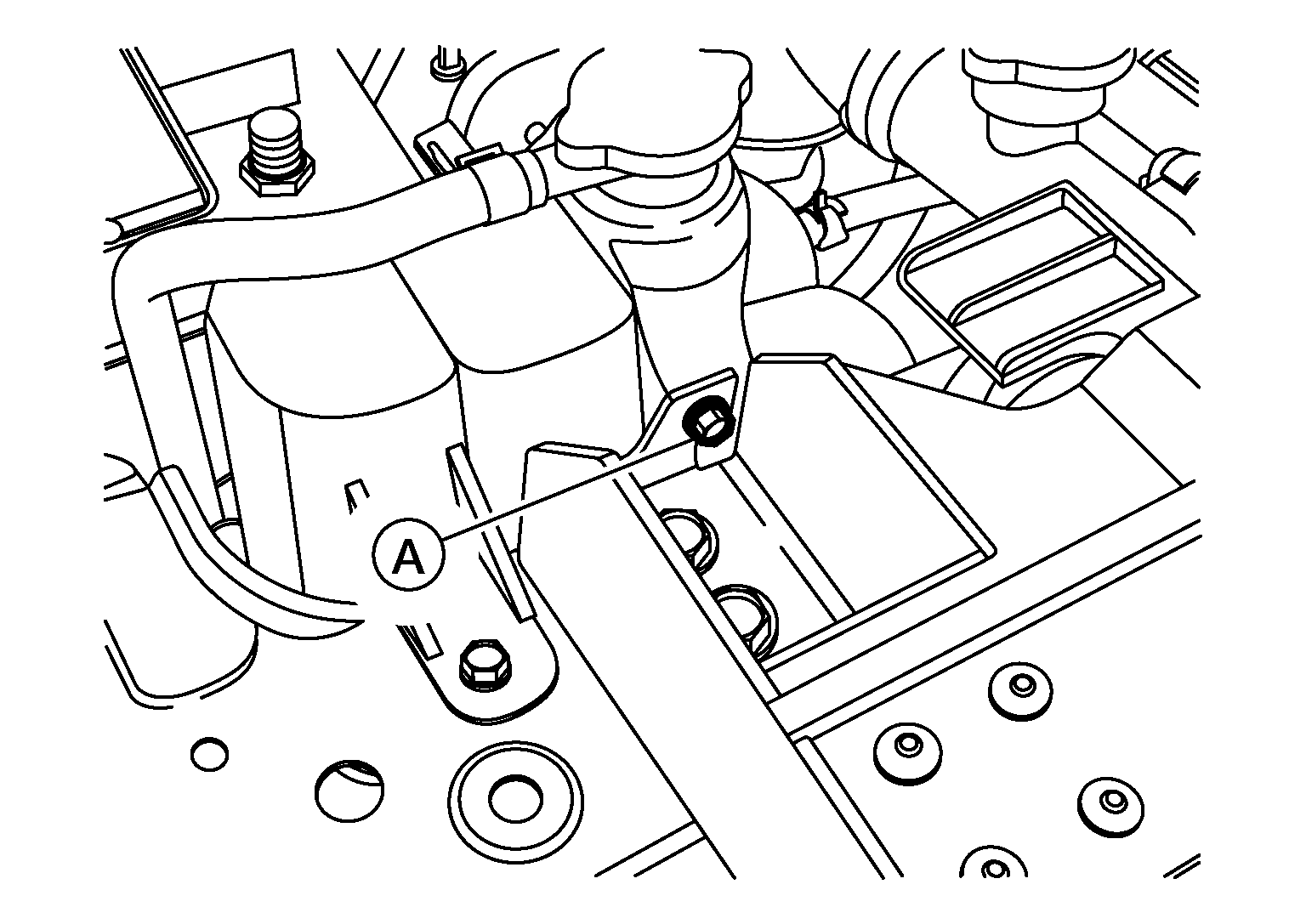

  8. Remove reservoir tank bolt (A).
    GNSALKIA4575Z-575Courtesy of NISSAN NORTH AMERICA, INC.

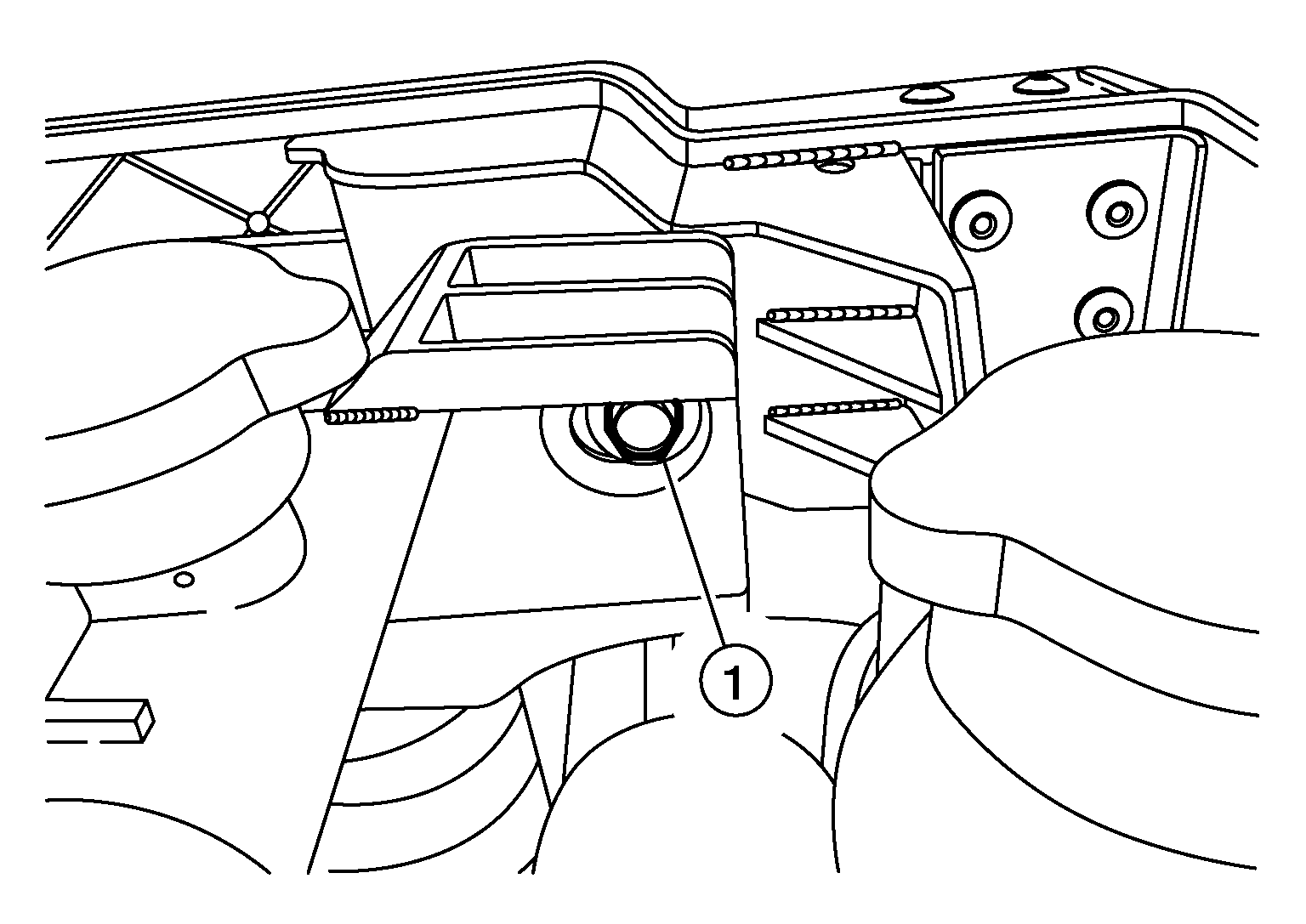

  9. Remove radiator bolts (A).
    GNSALKIA4576Z-576Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar
  10. Disconnect harness connectors from horn (HIGH) and horn (LOW).
  11. Remove radiator core support bolts, then remove radiator core support. Refer to Exploded View - XD Models .
  12. Release harness clip from lower air guide (LH), then release clip and remove lower air guide (LH).
  13. Remove A/T fluid cooler hose E and A/T fluid cooler hose F from A/T fluid cooler. Refer to Exploded View - Non-XD Models .
  14. Remove radiator hose (lower).
  15. Remove radiator hose (upper).
  16. Remove power steering oil cooler outlet hose and power steering oil cooler inlet hose from the power steering oil cooler. Refer to Exploded View .
  17. Disconnect the harness connector from the ambient sensor (1).
    GNSAWIIA2068Z-068Courtesy of NISSAN NORTH AMERICA, INC.
  18. Remove crash zone sensor nut, then remove crash zone sensor and bracket.
    CAUTION:
    • Replace crash zone sensor if it has been dropped or sustained an impact.
    • Do not strike crash zone sensor.
    • Replace crash zone sensor if either driver air bag or front passenger air bag has been deployed.
    • Do not reuse crash zone sensor nut.
  19. Remove front bumper retainer bolts from radiator core support bracket. Refer to Exploded View .
  20. Release clips, then remove air guides (LH/RH).
  21. Release harness clips from radiator core support bracket.
  22. Remove bolts and remove radiator core support. Refer to Exploded View - XD Models .
  23. Disconnect harness connector from refrigerant pressure sensor.
  24. Disengage radiator overflow hose from fan shroud upper.
  25. Disengage power steering oil cooler hose from radiator.
  26. Remove high-pressure pipe and high-pressure flexible hose from condenser. Refer to Exploded View
  27. Remove fan shroud (lower). Refer to Exploded View .
  28. Disconnect radiator overflow hose from the radiator.
  29. Disengage reservoir overflow hose and reservoir tank hose from fan shroud (upper).
  30. Remove fan shroud (upper) using the following procedure:
    1. Disengage A/T fluid cooler hose E and A/T fluid cooler hose F from fan shroud (upper). Refer to Exploded View - Non-XD Models .
    2. Remove fan shroud (upper) bolts and remove fan shroud (upper).
  31. Remove bolts connecting the condenser to the radiator. Refer to Exploded View .
  32. Remove the radiator, condenser and A/T fluid cooler from the vehicle as an assembly.
    CAUTION: Be careful not to damage radiator core.
  33. Remove condenser from radiator (if necessary).
  34. Remove A/T fluid cooler from radiator if necessary.
