Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CUMMINS

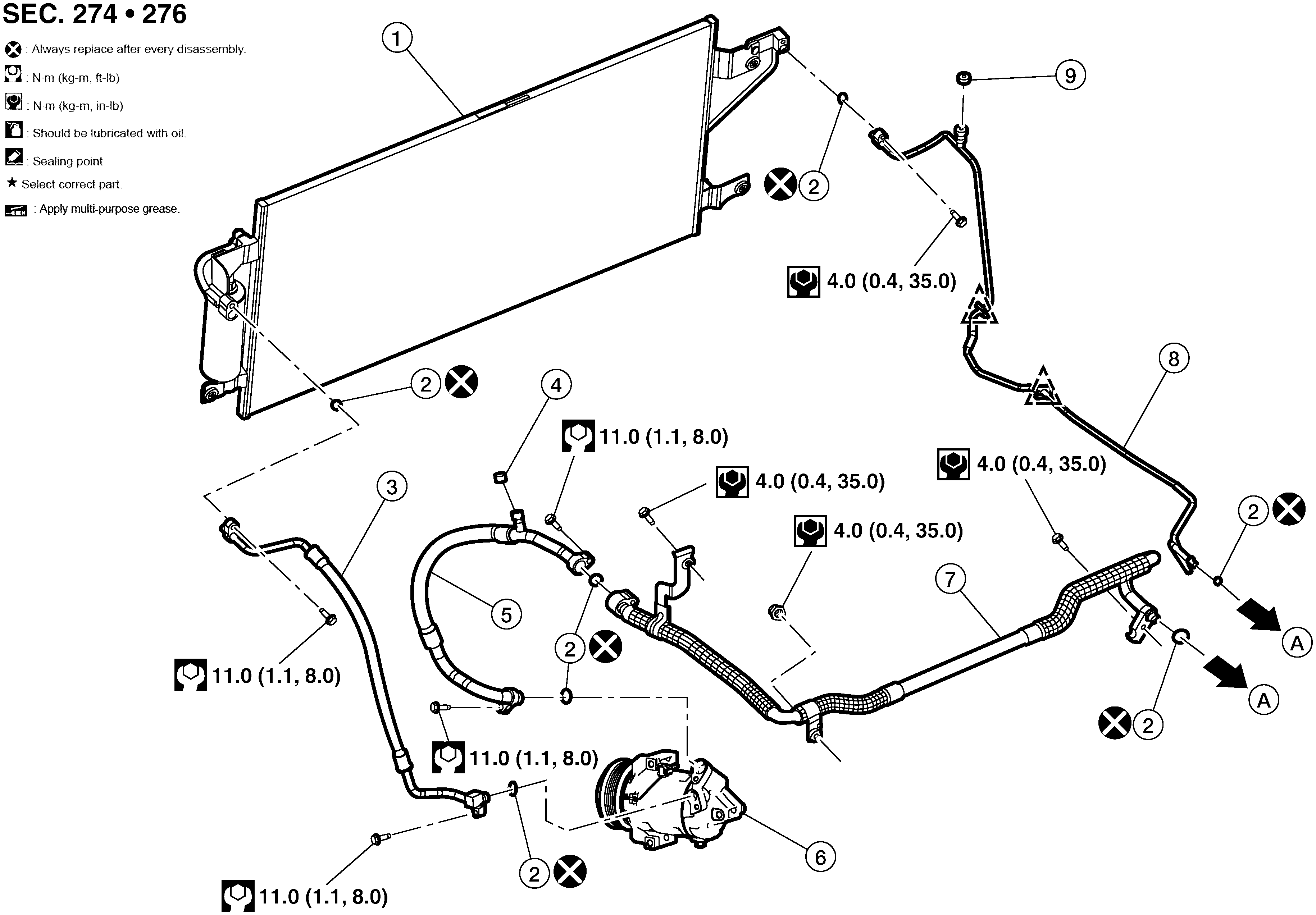

Fig 1: Cooler Pipe And Hose 5.0L With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Condenser	2.	O-ring	3.	High-pressure flexible hose
4.	Low-pressure service port cap	5.	Low-pressure flexible hose	6.	Compressor
7.	Low-pressure pipe	8.	High-pressure pipe	9.	High-pressure service port cap
A.	To expansion valve. Refer to Exploded View .		Clip

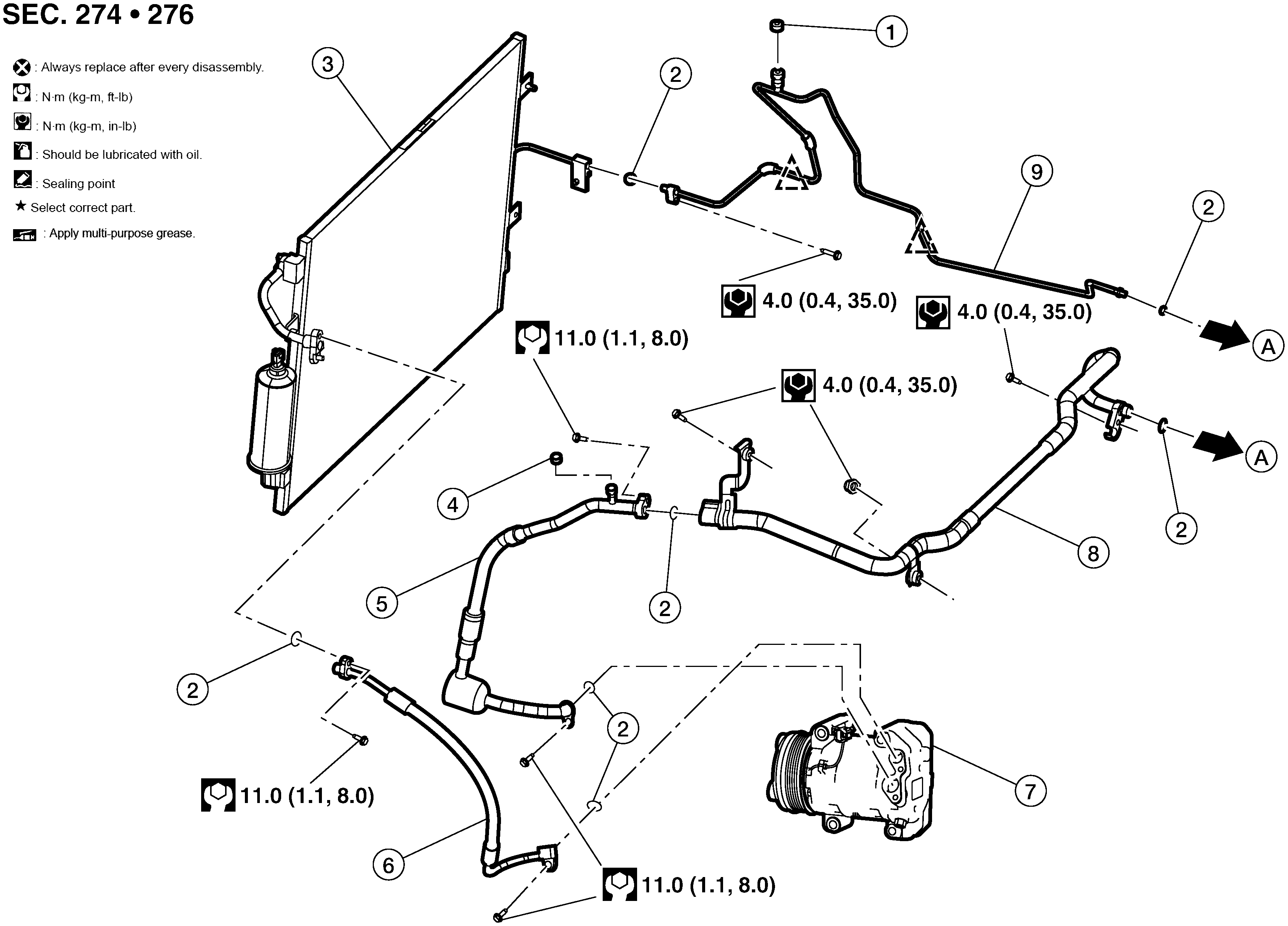

Fig 2: Cooler Pipe And Hose 5.6L XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High-pressure service port cap	2.	O-ring	3.	Condenser
4.	Low-pressure service port cap	5.	Low-pressure flexible hose	6.	High-pressure flexible hose
7.	Compressor	8.	Low-pressure pipe	9.	High-pressure pipe
A.	To expansion valve. Refer to Exploded View .		Clip

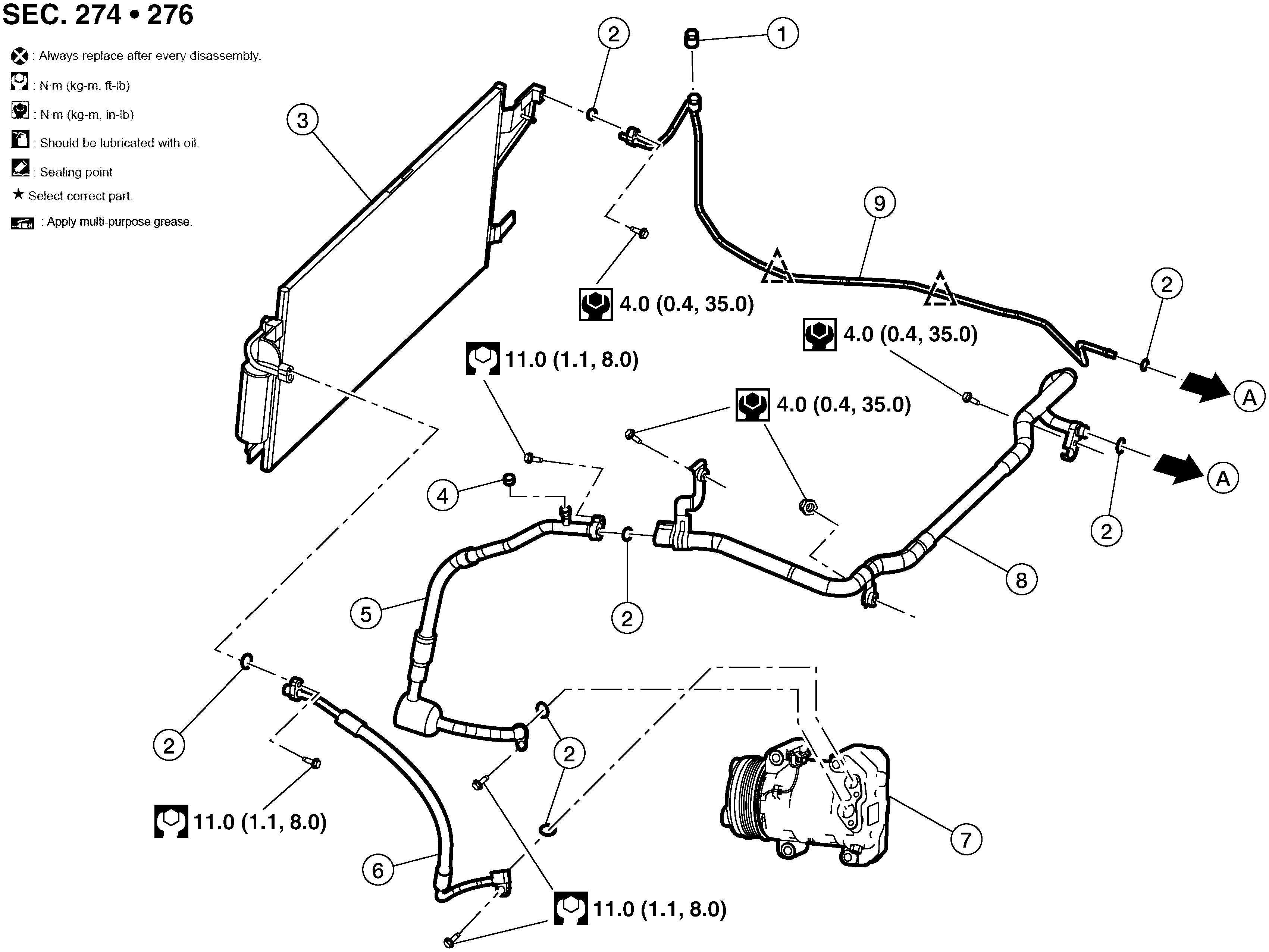

Fig 3: Cooler Pipe And Hose 5.6L Non-HD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High-pressure service port cap	2.	O-ring	3.	Condenser
4.	Low-pressure service port cap	5.	Low-pressure flexible hose	6.	High-pressure flexible hose
7.	Compressor	8.	Low-pressure pipe	9.	High-pressure pipe
A.	To expansion valve. Refer to Exploded View .		Clip
