Exploded View - Non-XD Models

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

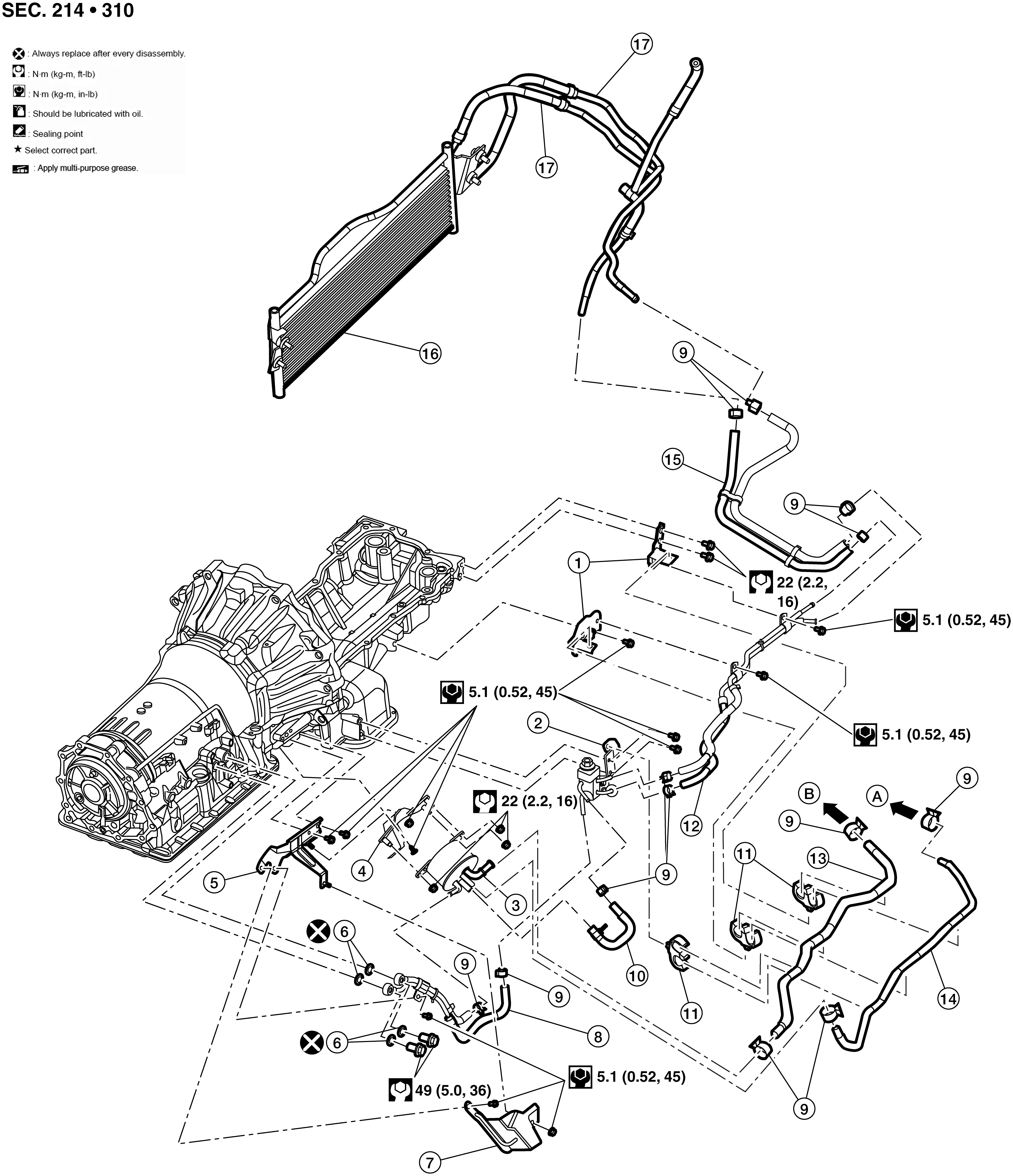

Fig 1: Fluid Cooler System Non-XD With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Tube bracket	2.	Bypass valve	3.	A/T fluid warmer
4.	A/T fluid warmer bracket	5.	Tube bracket	6.	Gasket
7.	Heat shield	8.	A/T fluid cooler hose A	9.	Hose clamp
10.	A/T fluid cooler hose B	11.	Clip	12.	A/T fluid cooler hose C
13.	Water hose	14.	Water hose	15.	A/T fluid cooler hose D
16.	A/T fluid cooler	17.	A/T fluid cooler hose E	18.	A/T fluid cooler hose F
A.	To oil cooler assembly. Refer to Exploded View	B.	To water pipe. Refer to Exploded View
