Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

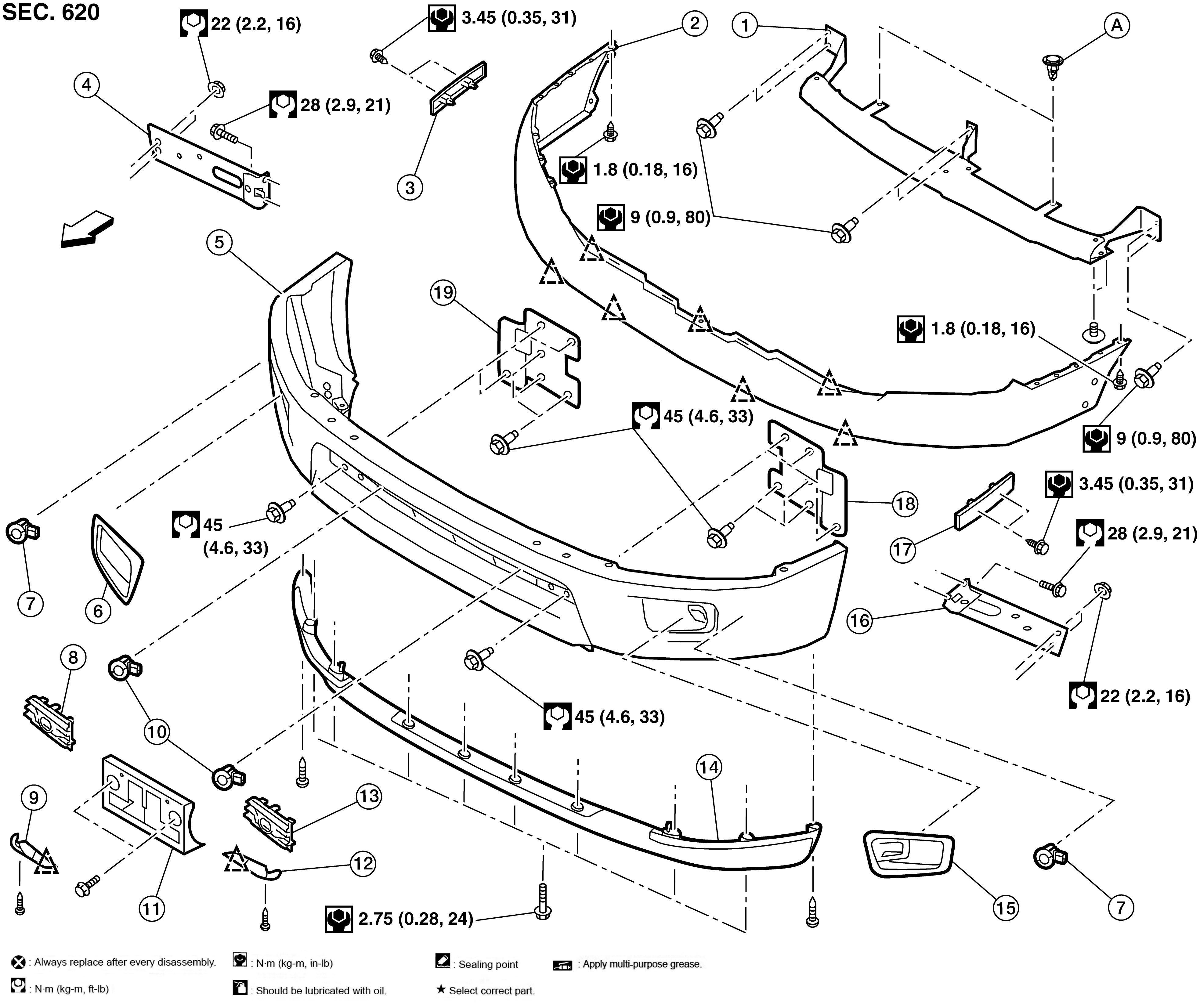

Fig 1: Non-XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper retainer	2.	Bumper fascia upper	3.	Bumper fascia upper side bracket (RH)
4.	Front bumper side bracket (RH)	5.	Headlamp bracket (RH)	6.	Front sonar outer sensor (if equipped)
7.	Front bumper finisher (RH)	8.	Front bumper grille finisher (RH)	9.	Front sonar inner sensor (if equipped)
10.	License plate bracket	11.	Front bumper grille finisher (LH)	12.	Front air spoiler
13.	Front bumper finisher (LH)	14.	Headlamp bracket (LH)	15.	Front bumper side bracket (LH)
16.	Front bumper mounting bracket (LH)	17.	Bumper fascia upper side bracket (LH)	18.	Front bumper mounting bracket (RH)
19.	Front bumper		Clip		Front

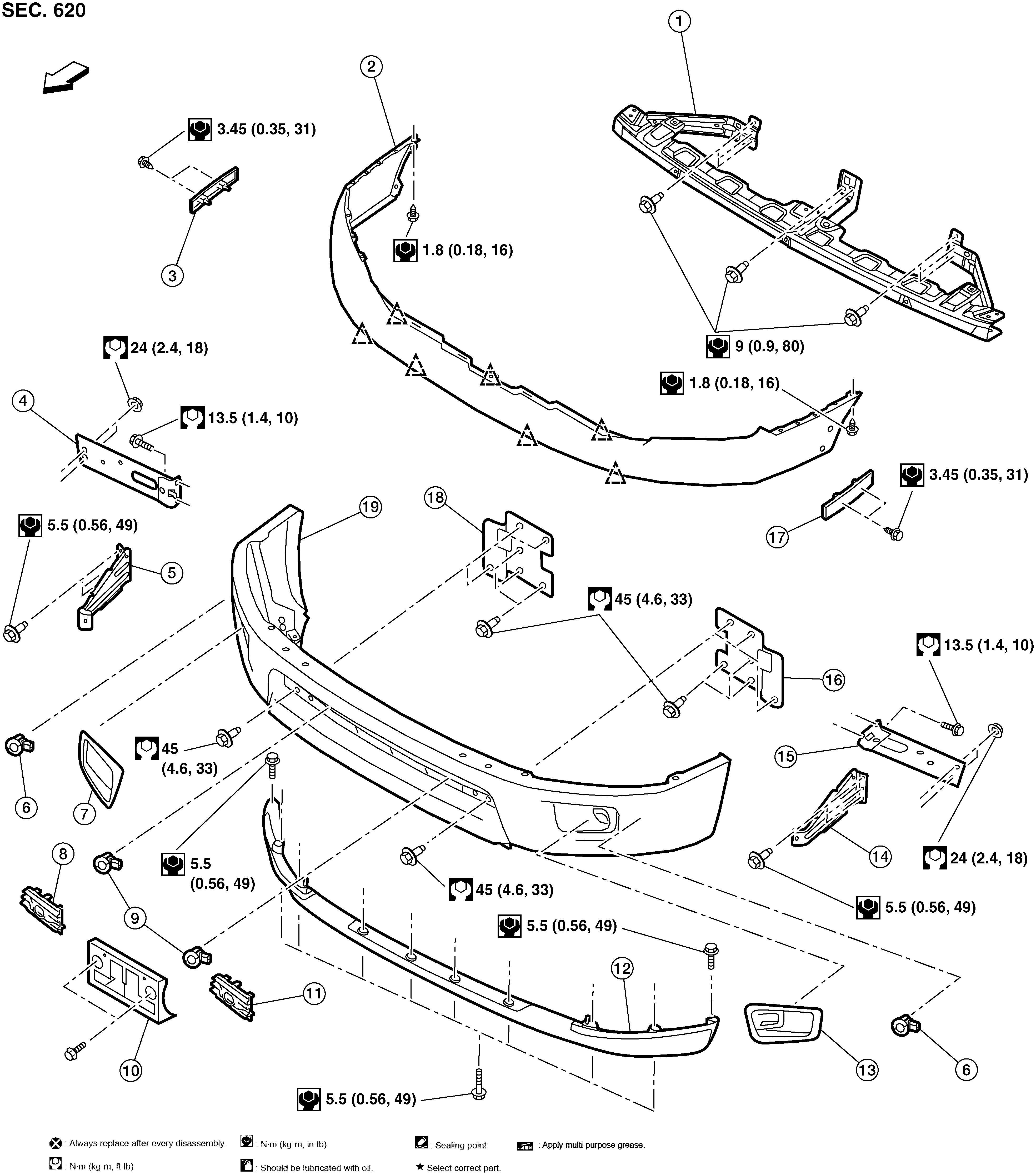

Fig 2: XD Models

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front bumper retainer	2.	Bumper fascia upper	3.	Bumper fascia upper side bracket (RH)
4.	Front bumper side bracket (RH)	5.	Front bumper	6.	Front bumper finisher (RH)
7.	Front sonar outer sensor	8.	Front bumper grille finisher (RH)	9.	Tow hook finisher (RH)
10.	Front sonar inner sensor	11.	License plate bracket	12.	Tow hook finisher (LH)
13.	Front bumper grille finisher (LH)	14.	Front air spoiler (if equpped)	15.	Front bumper finisher (LH)
16.	Front bumper side bracket (LH)	17.	Bumper fascia upper side bracket (LH)	18.	Front bumper mounting bracket (LH)
19.	Front bumper mounting bracket (RH)	A.	Clip		Clip
	Front
