Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

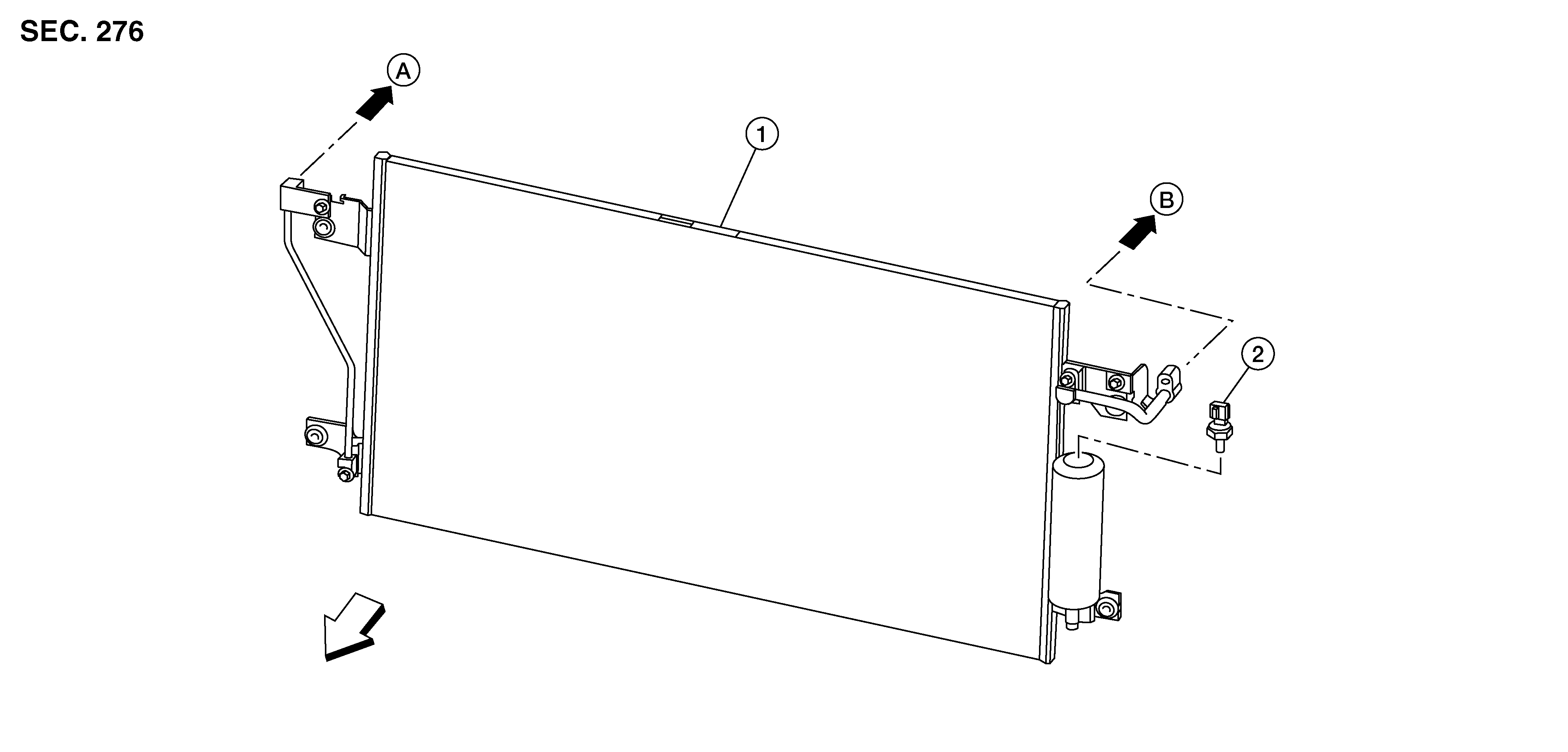

XD MODELS
|
1. |
Condenser |
2. |
Refrigerant pressure sensor |
A. |
To expansion valve. Refer to Exploded View . |
|
B. |
From compressor. Refer to Exploded View . |
|
Front |

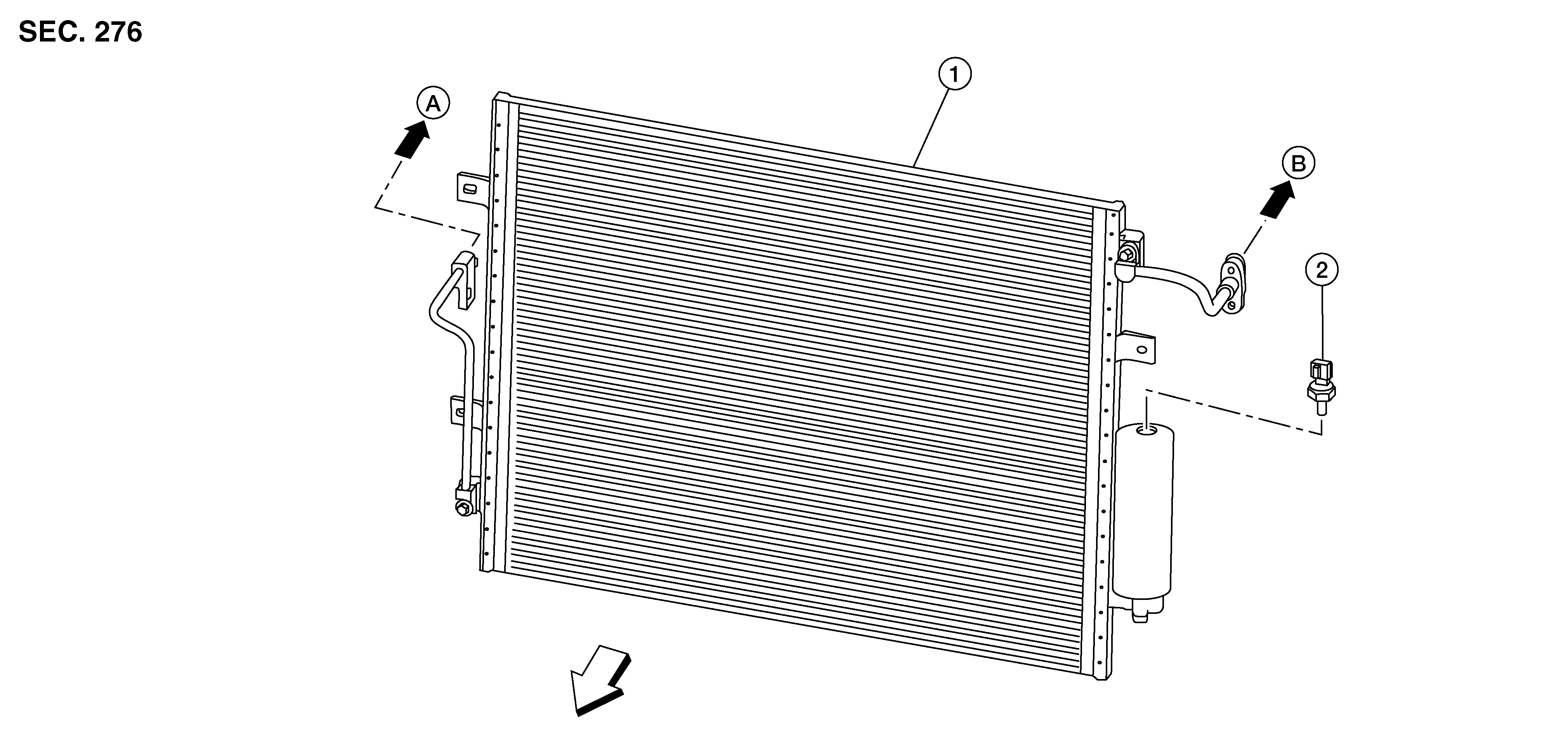

NON-XD MODELS
|
1. |
Condenser |
2. |
Refrigerant pressure sensor |
A. |
To expansion valve. Refer to Exploded View . |
|
B. |
From compressor. Refer to Exploded View . |
|
Front |
