Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

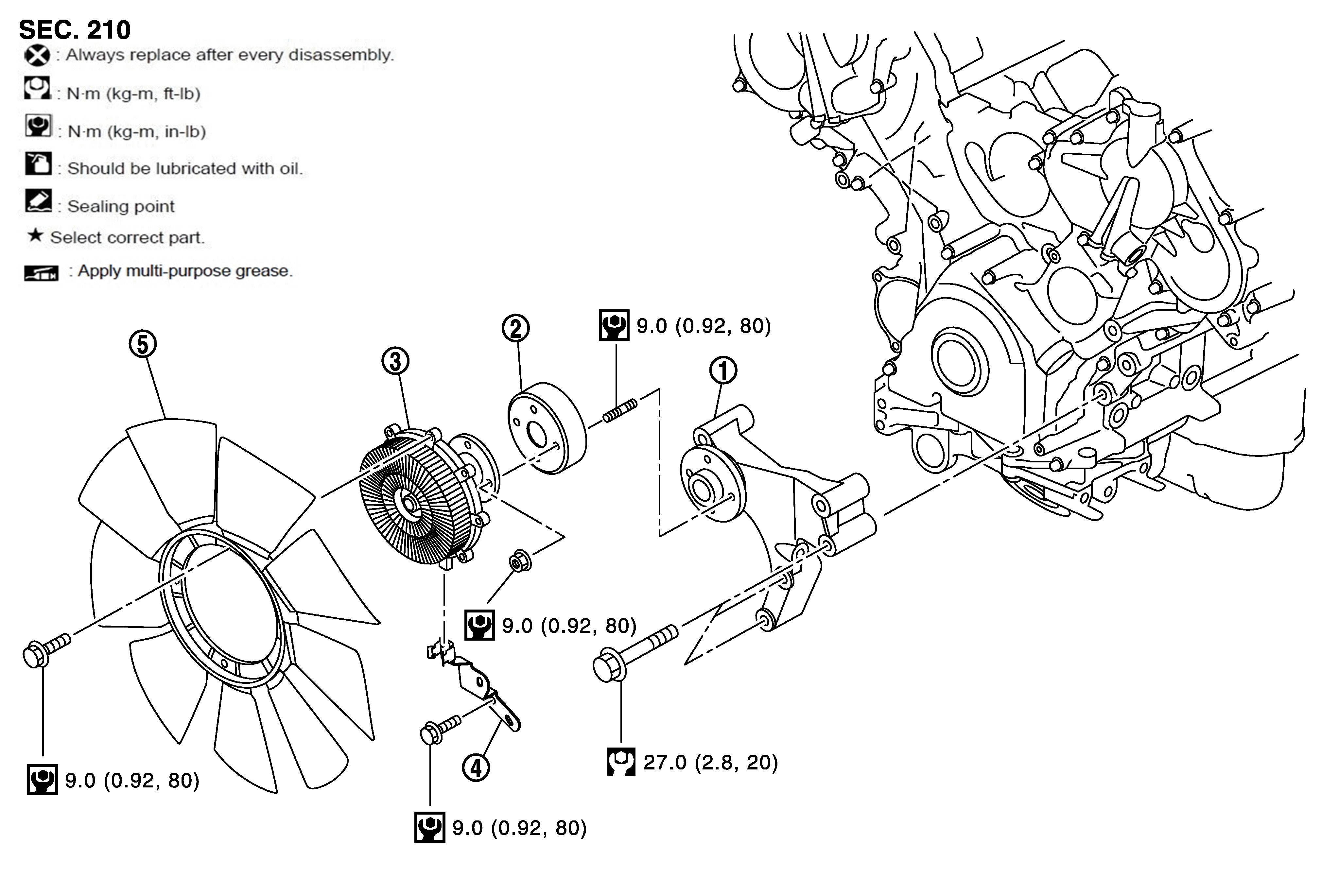

Fig 1: Cooling Fan With Torque Specifications
GNSJPBIA3326GB-326Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cooling fan bracket

2.

Cooling fan pulley

3.

Cooling fan coupling

4.

Cooling fan harness bracket

5.

Cooling fan
