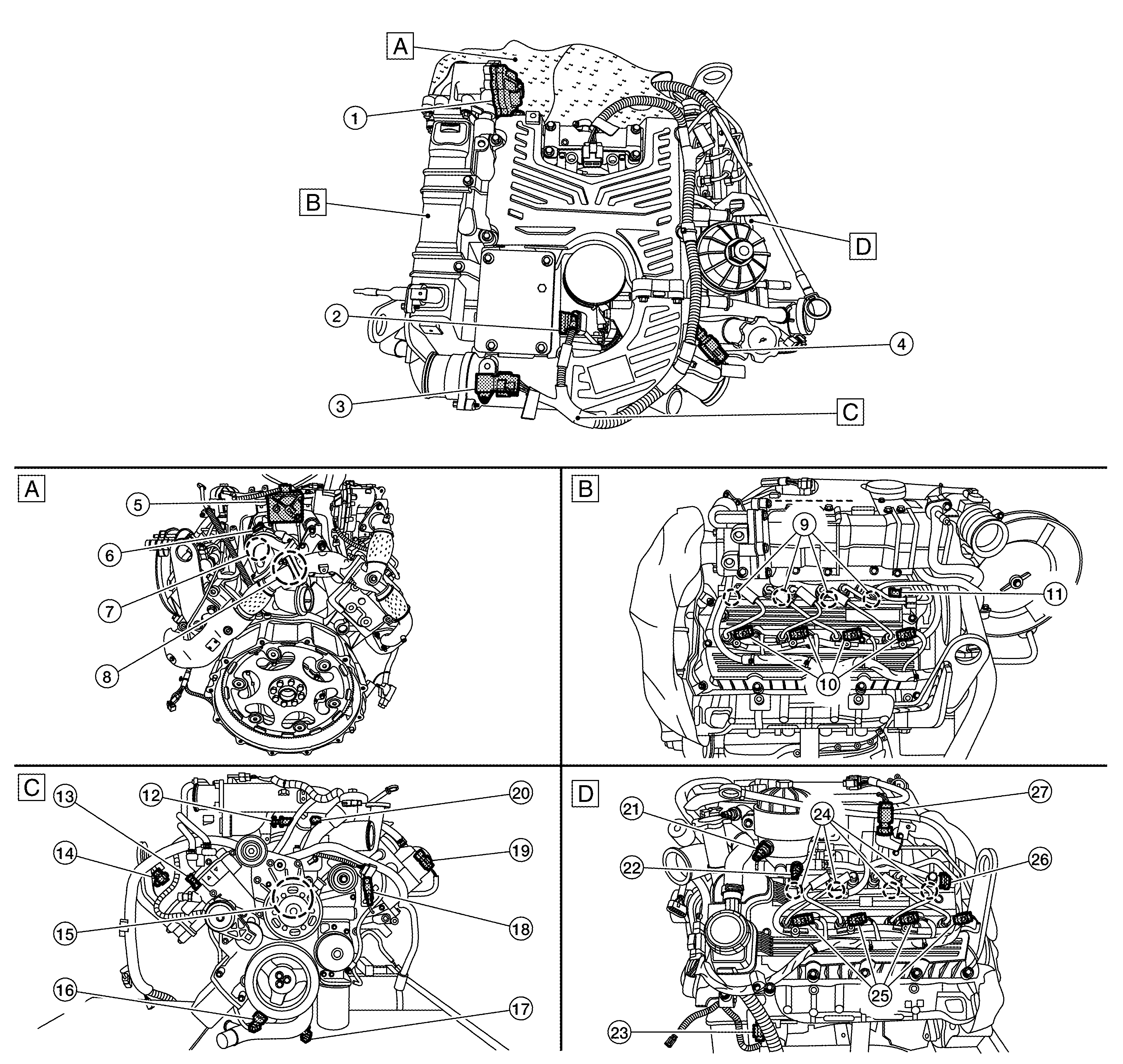

Engine Compartment
|
|
Back side of engine |
|
Right side of engine |
|
Front side of engine |
|
|
Left side of engine |
|
No. |
Component parts |
Function |
|
|
EGR valve |
|
|
|
EGR bypass valve |
|
|
|
Engine charge air cooler outlet pressure/temperature sensor |
|
|
|
Intake manifold temperature sensor |
|
|
|
Rotary turbine control valve actuator |
|
|
|
Turbocharger speed sensor |
|
|
|
High pressure turbo compressor |
|
|
|
Low pressure turbo compressor |
|
|
|
Glow plugs RH |
|
|
|
Fuel injectors RH |
|
|
|
Fuel rail pressure sensor |
|
|
|
EGR temperature sensor |
|
|
|
Camshaft position sensor |
|
|
|
Coolant temperature sensor |
|
|
|
Fuel pump actuator |
|
|
|
Crankshaft position sensor |
|
|
|
Coolant heater (if equipped) |
|
|
|
Compressor bypass valve solenoid |
|
|
|
Crankcase pressure sensor |
|
|
|
Low pressure turbocharger boost pressure sensor |
|
|
|
Fuel temperature sensor |
|
|
|
Fuel pressure sensor |
|
|
|
Oil pressure switch |
|
|
|
Glow plugs LH |
|
|
|
Fuel injectors LH |
|
|
|
Fuel pressure relief valve |
|
|
|
Exhaust gas pressure sensor |
