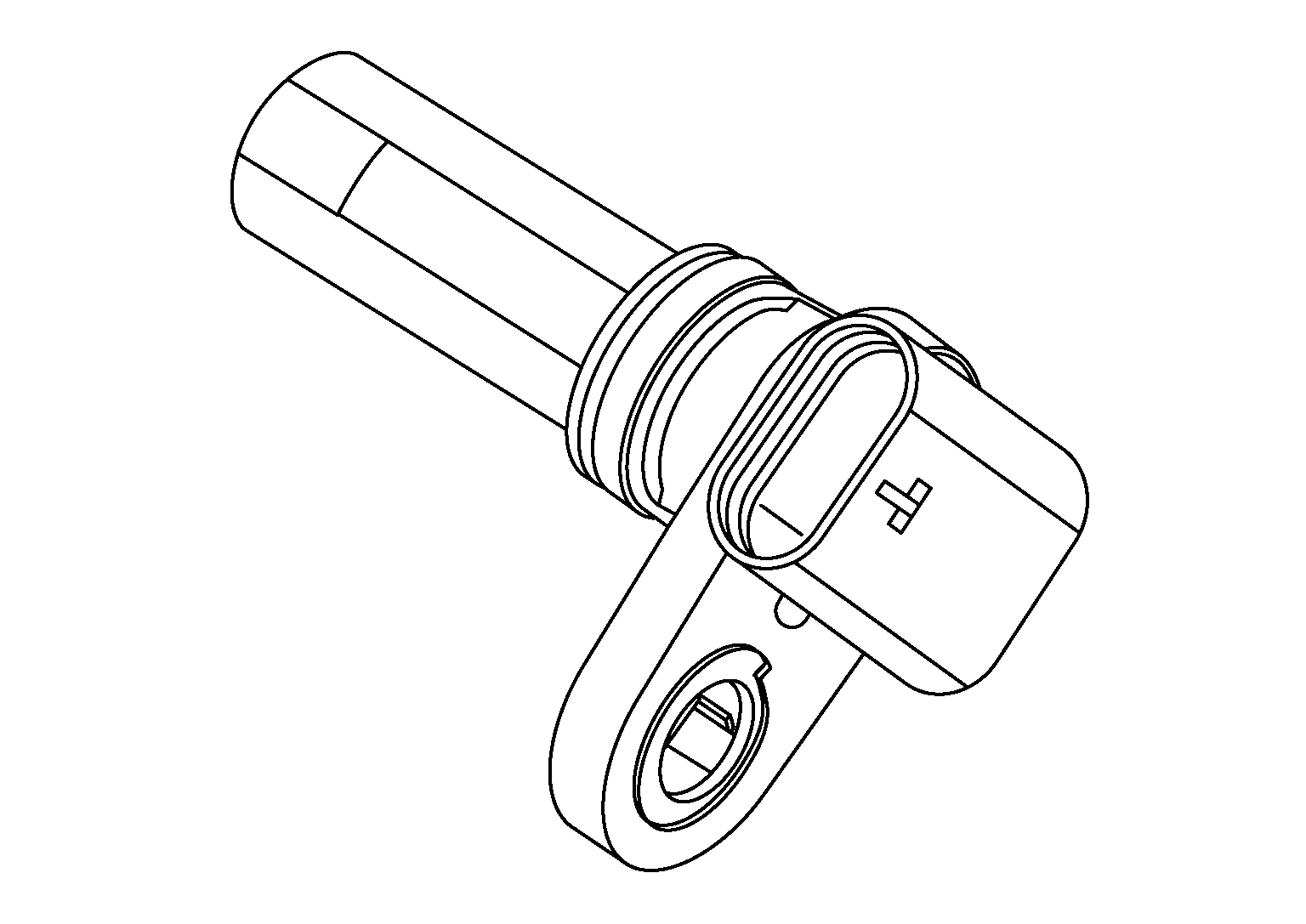

Camshaft Position Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
After the ECM determines top dead center of cylinder number 1 on the compression stroke at startup (using the camshaft position sensor), the ECM then relies on the crankshaft position sensor to control the timing of the injections.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
