Crankshaft Position Sensor

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Crankshaft Position Sensor (CKP) detects engine speed and crankshaft position. The size difference of gear tooth placed on signal plate changes the gap between signal plate and sensor, and magnetic field change around the sensor induces sensor output voltage change. ECM detects engine speed and crankshaft position based on this voltage change.

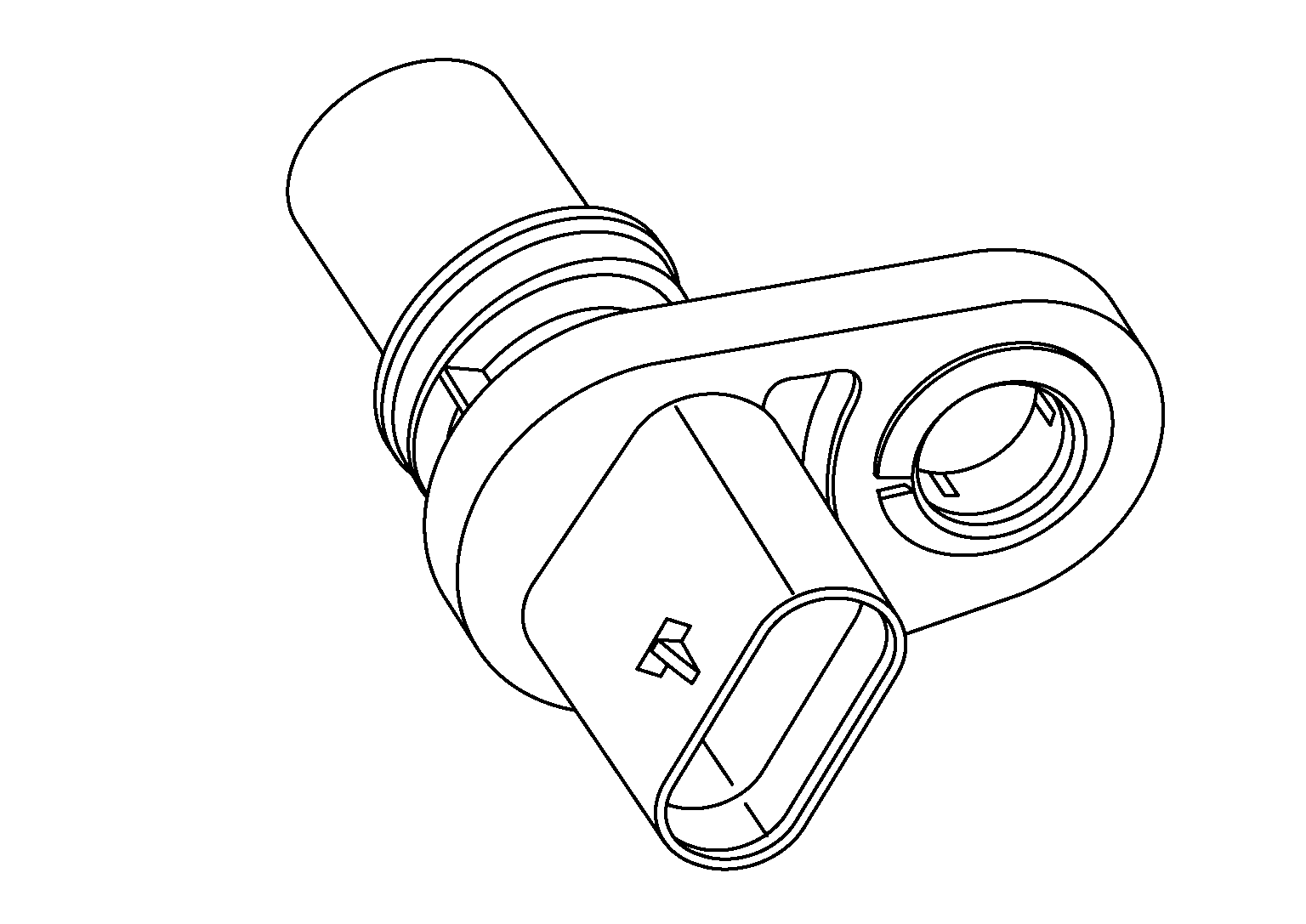

GNSALBIA2879Z-879Courtesy of NISSAN NORTH AMERICA, INC.
