Oil Pressure Switch

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

The oil pressure switch detects engine oil pressure and transmits a voltage signal to the ECM.

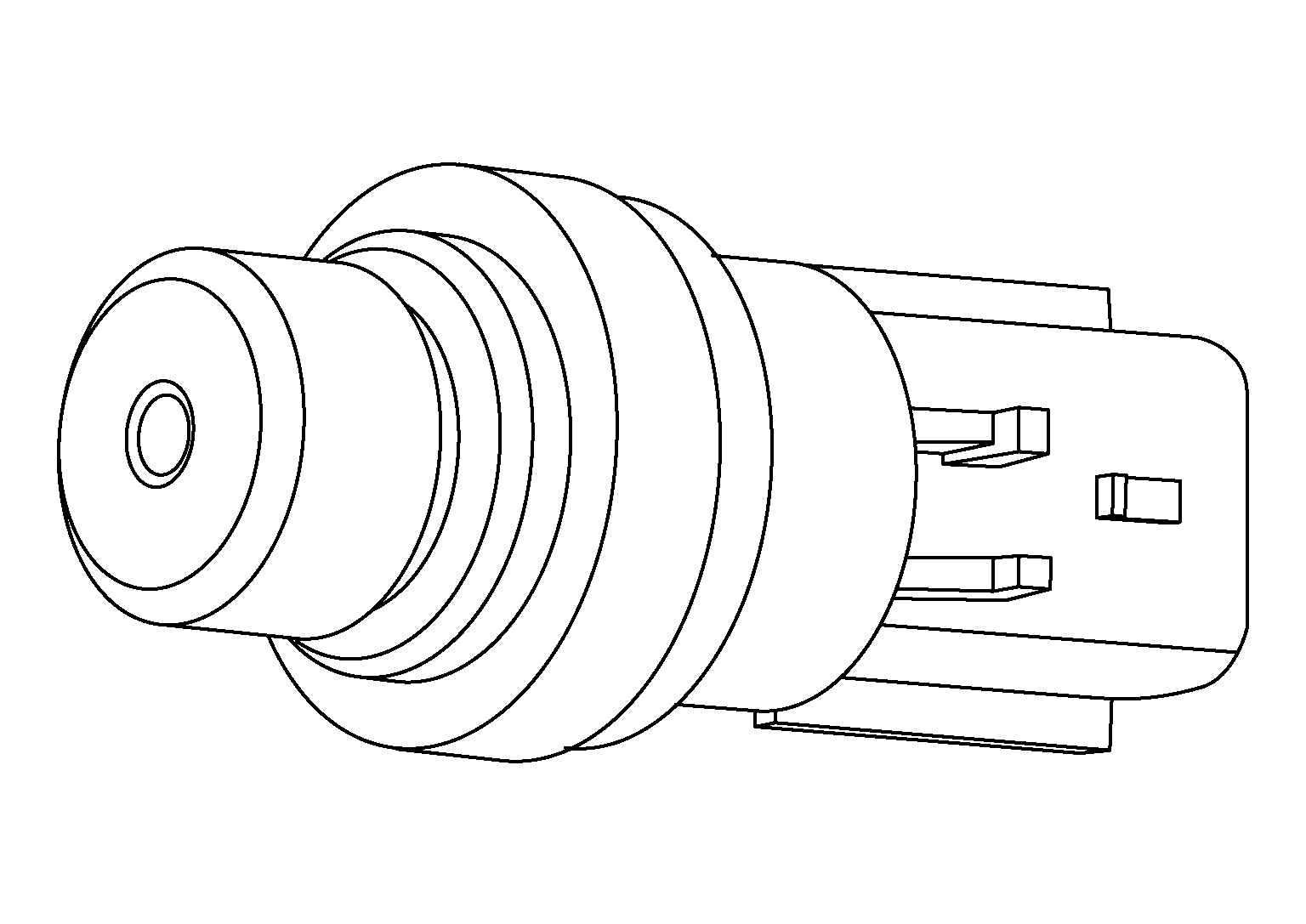

GNSALBIA2907Z-907Courtesy of NISSAN NORTH AMERICA, INC.
