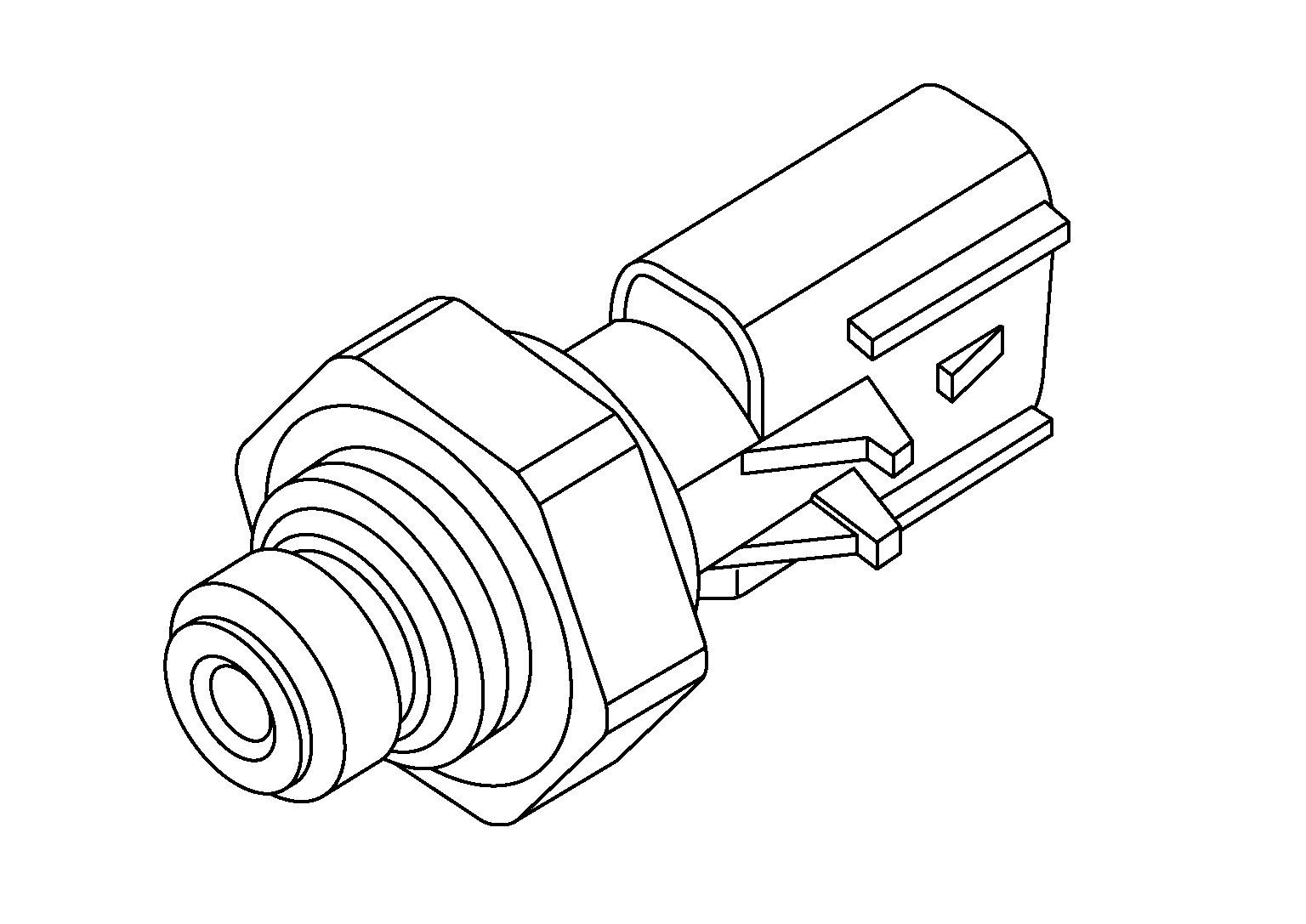

Low Pressure Turbocharger Boost Pressure Sensor
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
The low pressure turbocharger boost pressure sensor is located on the compressor outlet side of the low pressure turbocharger. This sensor monitors charge air pressure in the compressor outlet tubing.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
