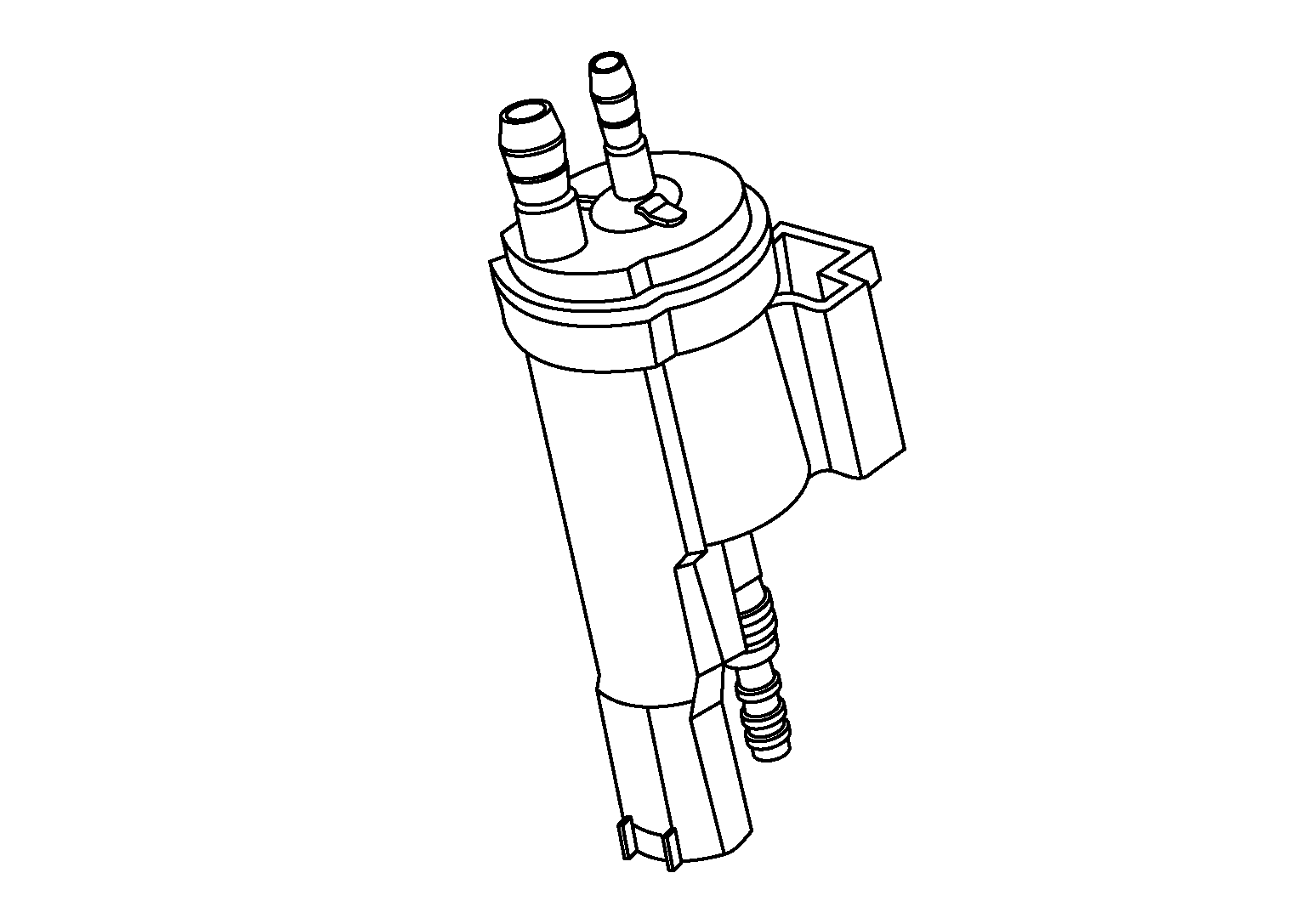

Compressor Bypass Valve Solenoid
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Located on the front left side of the engine. It is an ON/OFF solenoid that is controlled by the ECM. When energized by the ECM, the compressor bypass solenoid directs vacuum to the compressor bypass actuator to open the compressor bypass valve.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
