Removing and installing instrument panel trim (Cooper Convertible)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

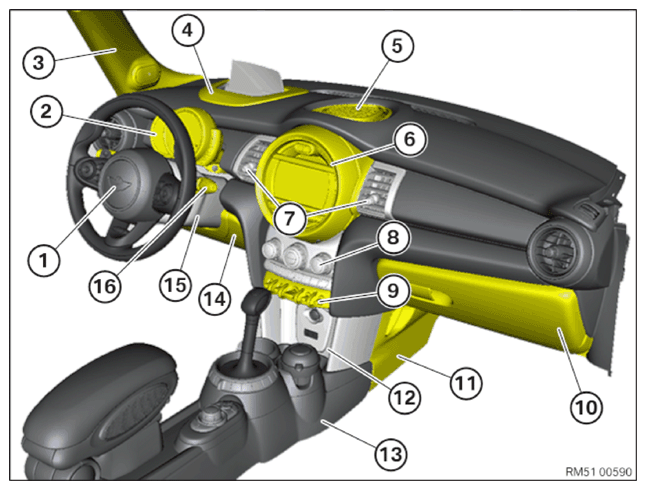

The following parts must be removed as preliminary work.

1	STEERING WHEEL/AIRBAG , AIRBAG UNIT and/or (sports steering wheel) AIRBAG UNIT .
2	INSTRUMENT PANEL .
3	Left/right TRIM PANEL for a-pillar.
4	COVER for BMW head-up display.
5	MID-RANGE SPEAKERS .
6	CENTRAL INSTRUMENT and HEADUNIT .
7	Left FRESH AIR GRILLE and/or right FRESH AIR GRILLE .
8	CONTROL PANEL for air conditioning.
9	CENTER CONSOLE SWITCH CENTER .
10	GLOVE COMPARTMENT with housing.
11	left/right TRIM PANEL for center console
12	ASSEMBLY CARRIER .
13	CENTER CONSOLE , complete.
14	Bottom instrument PANEL TRIM .
15	Lower part of STEERING COLUMN SHROUD and/or upper part of STEERING COLUMN SHROUD .
16	Steering column SWITCH CLUSTER .

For equipment variants with BMW Head-Up Display, make sure that Head-Up Display is retracted.

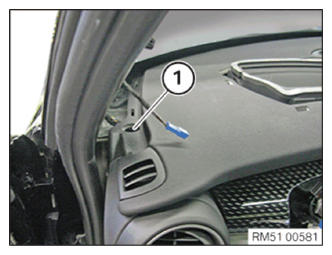

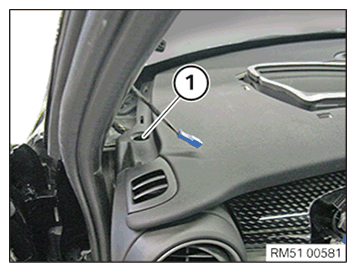

Remove screw (1).

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

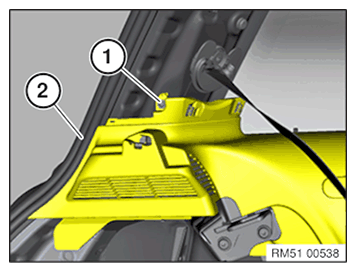

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

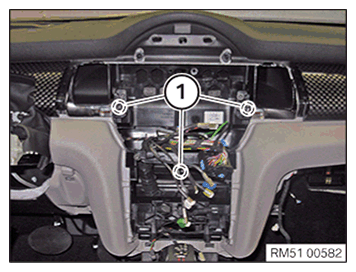

Release screws (1) on passenger's side.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. The wiring harness is therefore not present in the graphic.

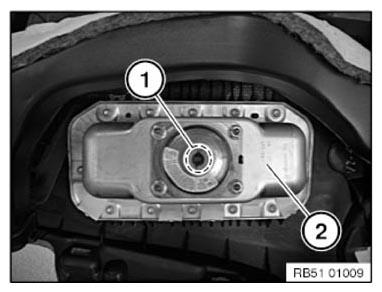

Disconnect plug connection (1) from front passenger airbag (2).

Courtesy of BMW OF NORTH AMERICA, INC.

US version only (no diagram):

Disconnect 3 plug connections (1) from front passenger airbag (2).

Observe the NOTES on airbag plug connections .

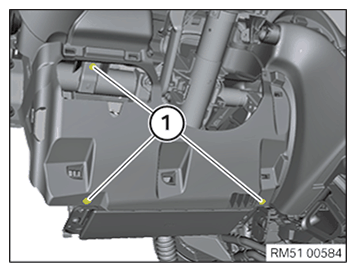

Release screws (1) on driver's side.

Courtesy of BMW OF NORTH AMERICA, INC.

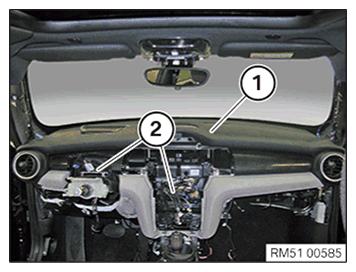

Remove the dashboard (1) with the aid of the helper and pull out all electrical lines (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Graphic is only an example.

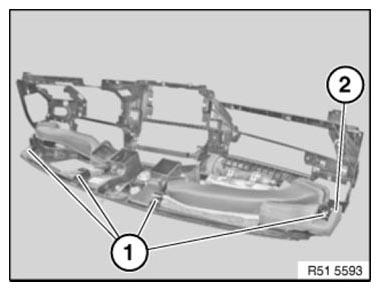

Make sure that guides (1) on dashboard (2) are correctly seated in respective mountings of firewall.
Make sure gaskets are correctly seated on air ducts.
Insert and install foam moldings of the dashboard (2) correctly at the center.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert dashboard (1) with the help of a helper and connect all electrical lines (2).

NOTE: Screw dashboard (1) tightly from the middle towards outside.
Make sure all electrical lines (2) are correctly routed.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on driver's side.

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity. Wiring harness is therefore not available in graphic.

Connect plug connection (1) of front passenger airbag (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

US version only (no diagram ):

Connect 3 plug connections (1) of front passenger airbag (2) and lock.

(Observe and comply with NOTES regarding airbag plug connections.

Tighten screws (1) on passenger's side.

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque 51 45 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1).

Tightening torque 51 45 1AZ .

NOTE: Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Courtesy of BMW OF NORTH AMERICA, INC.

The following parts must be installed as follow-up work.

1	STEERING WHEEL AND AIRBAG UNIT AIRBAG , and/or (sports steering wheel) AIRBAG UNIT .
2	INSTRUMENT PANEL .
3	left/right TRIM PANEL for a-pillar.
4	COVER for BMW head-up display.
5	MID-RANGE SPEAKERS .
6	CENTRAL INSTRUMENT and HEADUNIT .
7	Center left FRESH AIR GRILLE and/or center right FRESH AIR GRILLE .
8	CONTROL PANEL for air conditioning.
9	CENTER CONSOLE SWITCH CENTER .
10	GLOVE COMPARTMENT with housing.
11	Left/right TRIM PANEL for center console
12	ASSEMBLY CARRIER .
13	CENTER CONSOLE , complete.
14	Instrument PANEL TRIM , bottom.
15	Lower part of STEERING COLUMN SHROUD and/or upper part of STEERING COLUMN SHROUD .
16	Steering column SWITCH CLUSTER .
