Removing and installing (replacing) control panel for heating and air conditioning system

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Preliminary work needed:

Removal:

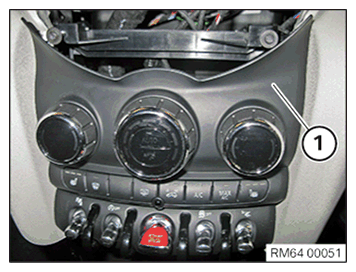

Disengage control panel for heating and air conditioning system (1) towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.

Installation:

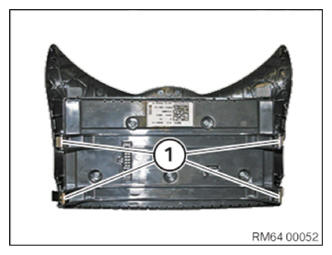

NOTE: Clamps (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Engage control panel of heating and air conditioning system (1) to the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
