Removing and installing (replacing) side center console trim panel (Cooper Convertible)

Preliminary work needed  :

• Remove FOOTWELL LIGHTRight side only:
• Remove bottom right dashboard TRIM PANEL .

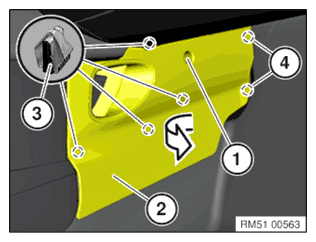

Removal:

Remove screw (1).

Release side center console trim panel (2) from retaining clips (3).

Feed out side center console trim panel (2) from guides (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

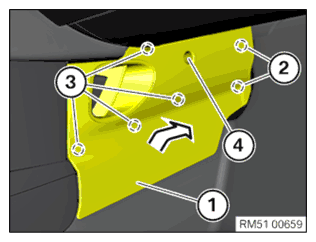

Installation  :

Feed in trim panel (1) into guides (2) and lock in clamps (3).

Tighten screw (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking  :

• Install FOOTWELL LIGHT .

  Right side only  :

• Install bottom right instrument panel TRIM PANEL .
