Installing EME
Check

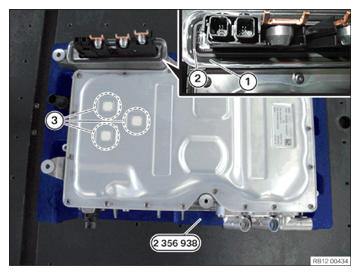

- Place the electrical machine electronics (EME) reversed into the special tool 2 356 938 .
- Check the seals (1) and (2) and the diaphragm (3) for damage.
Result
» The gaskets or diaphragms are damaged.
Measure
- Replace the electrical machine electronics (EME).
Cleaning the copper connections of the electrical machine electronics (EME) and the connection housing

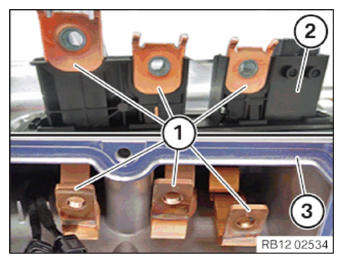

- Cleaning copper connections (1) of EME (2) and connection housing (3):
- Do not touch the copper connections (1).
- Clean the copper connections (1) using a nonwoven abrasive until the condition as displayed in the illustration is achieved.
- Thoroughly draw off the particles that are produced during the grinding process.
Do not use compressed air.
CONSUMABLE SPECIFICATION
| Non-woven abrasives 3M-07904 |
45176141 (BASF) |
WARNING:
Potential equalization in high-voltage system
.
Mortal hazard if the potential equalization screw connection is not correct!
Mortal hazard if the potential equalization screw connection is not correct!
- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

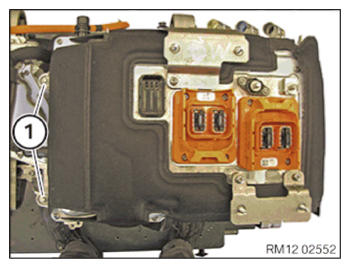

- Position the EME as shown.
- Tighten the top screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| EME to connecting housing | |
|---|---|
| M8 | 19 Nm |
WARNING:
Potential equalization in high-voltage system
.
Mortal hazard if the potential equalization screw connection is not correct!
Mortal hazard if the potential equalization screw connection is not correct!
- Observe the safety requirements for the potential equalization screw connection.
- Clean contact faces and have then checked by a second person.
- Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
- Correct execution of these tasks must be documented in the vehicle records by both persons.

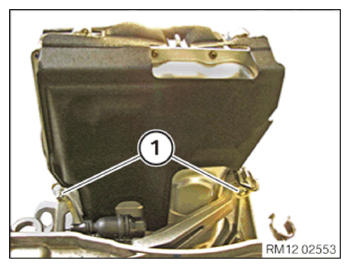

- Tighten the bottom screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| EME to connecting housing | |
|---|---|
| M8 | 19 Nm |
Follow-up work
- Refer to MOUNTING THE POWER RAILS ON THE ELECTRICAL MACHINE ELECTRONICS (EME) .
- Refer to INSTALLING THE LID ON THE SIDE OF THE ELECTRICAL MACHINE ELECTRONICS (EME) .
- Refer to CONNECTING THE COOLANT LINE TO THE SIDE OF THE EME .
- Refer to INSTALLING THE CABLE CLIP ON THE SIDE OF THE EME .
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION AT THE TOPPING OF THE EME .
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTIONS ON THE SIDE OF THE EME .
- Refer to FASTENING THE ASSEMBLY FRAME ON TO THE DRIVE UNIT .
- Refer to SECURING THE POTENTIAL EQUALIZATION LINE ONTO THE CONNECTION HOUSING .
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION AT THE EME .
- Refer to INSTALLING THE TENSIONING RELIEF .
- Refer to CONNECTING THE COOLANT HOSES .
- Refer to CLOSING THE HIGH-VOLTAGE PLUG CONNECTION ON THE KLE .
- Refer to CONNECTING THE PLUG CONNECTION TO THE ELECTRIC COOLANT PUMP .
- Refer to CONNECTING THE REFRIGERANT LINE TO THE HEAT EXCHANGER .
- Refer to ATTACHING THE COOLANT HOSE .
- Refer to INSTALLING THE HOLDER FROM HEATER VALVE .
- Refer to CLOSING THE PLUG CONNECTIONS .
- Refer to ENCODE/PROGRAM CONTROL UNIT(S) .
