51 16 200 Removing and installing oddments tray

Removing and installing finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING/REPLACING FINISHER FOR PRESELECTOR LEVER .

Removing and installing heater controls, refer to 64 11 749 REMOVING AND INSTALLING/REPLACING HEATER CONTROLS (AUTOMATIC AIR CONDITIONER) .

Removing and installing switch for hazard warning lights, refer to 61 31 080 REMOVING AND INSTALLING/REPLACING SWITCH FROM HAZARD WARNING LIGHTS .

Removing and installing switch for central locking, refer to 61 31 082 REMOVING AND INSTALLING/REPLACING SWITCH FOR CENTRAL LOCKING SYSTEM .

Removing and installing switch for automatic stability control, refer to 61 31 212 REMOVING AND INSTALLING/REPLACING SWITCH FOR AUTOMATIC STABILITY CONTROL .

If necessary, remove and install both switches for seat heating, refer to 61 31 090 REMOVING AND INSTALLING/REPLACING SWITCH FOR LEFT OR RIGHT SEAT HEATING .

If necessary, remove and install switch for rear window roller blind, refer to 61 31 216 REMOVING AND INSTALLING/REPLACING SWITCH FOR REAR WINDOW ROLLER BLIND .

If necessary, remove and install switch for electronic damper control, refer to 61 31 214 REMOVING AND INSTALLING/REPLACING SWITCH FOR ELECTRONIC DAMPER CONTROL .

Removing and installing fresh air grille in luggage compartment, refer to 64 22 190 REMOVING AND INSTALLING/REPLACING FRESH-AIR GRILL IN REAR OF CAR .

Unfasten screws on left/right sides.

Pull left/right side carpet backwards out of clips.

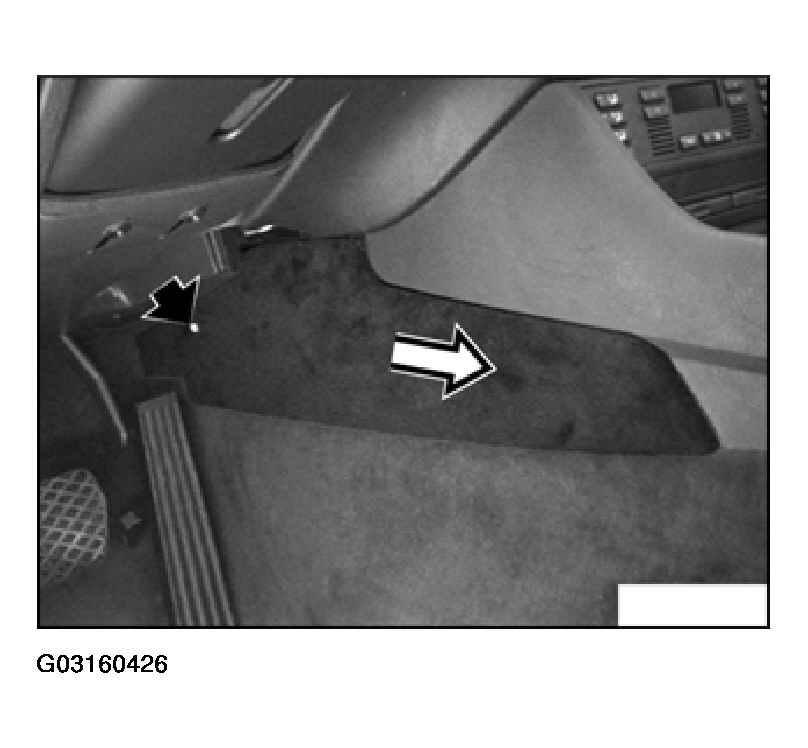

Fig 1: Removing Left/Right Side Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right screws.

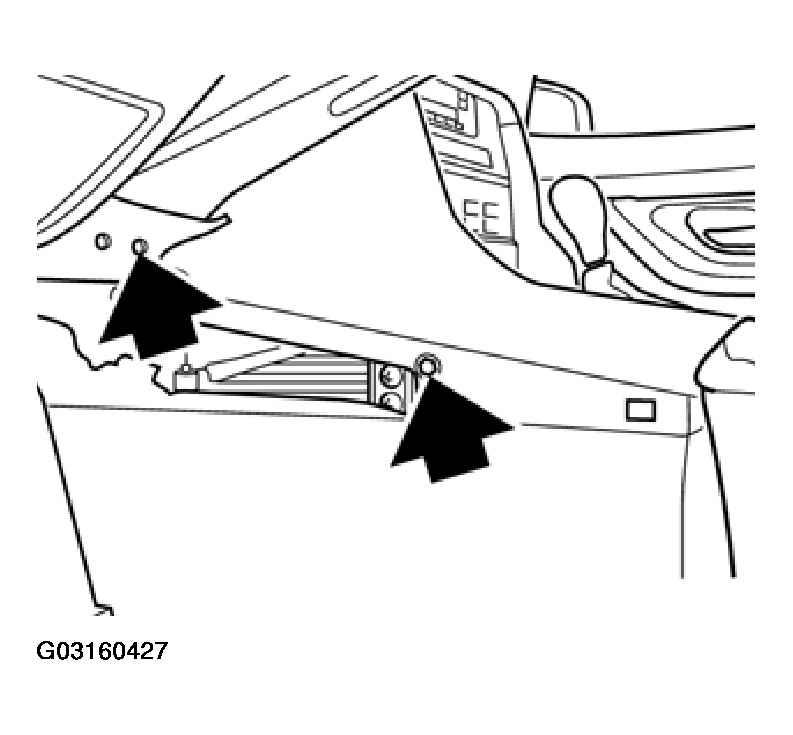

Fig 2: Unfastening Console Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off caps (1) and unfasten screws. Unclip rubber gaiter (2).

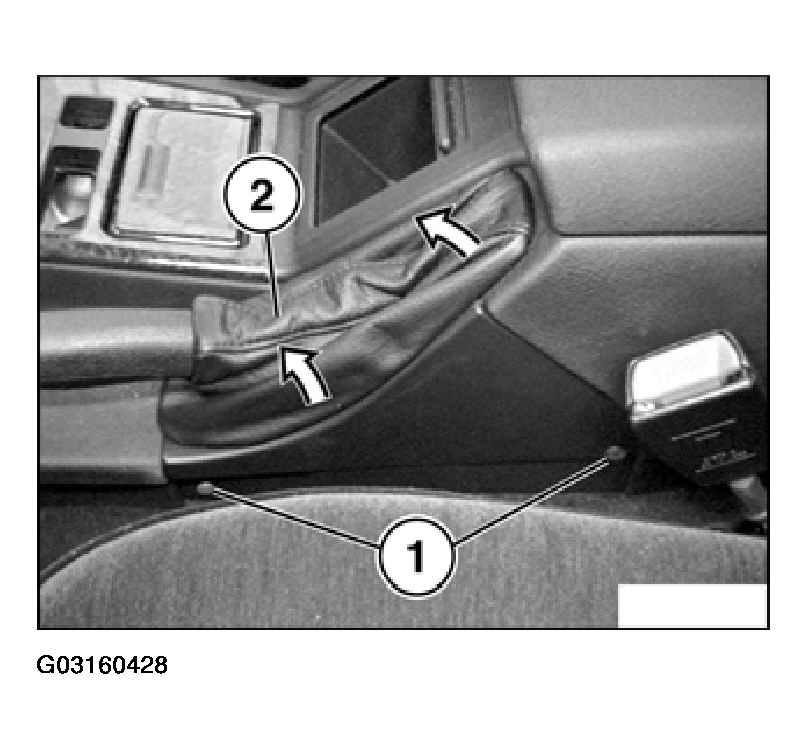

Fig 3: Uncliping E-Brake Rubber Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screw and unclip finisher.

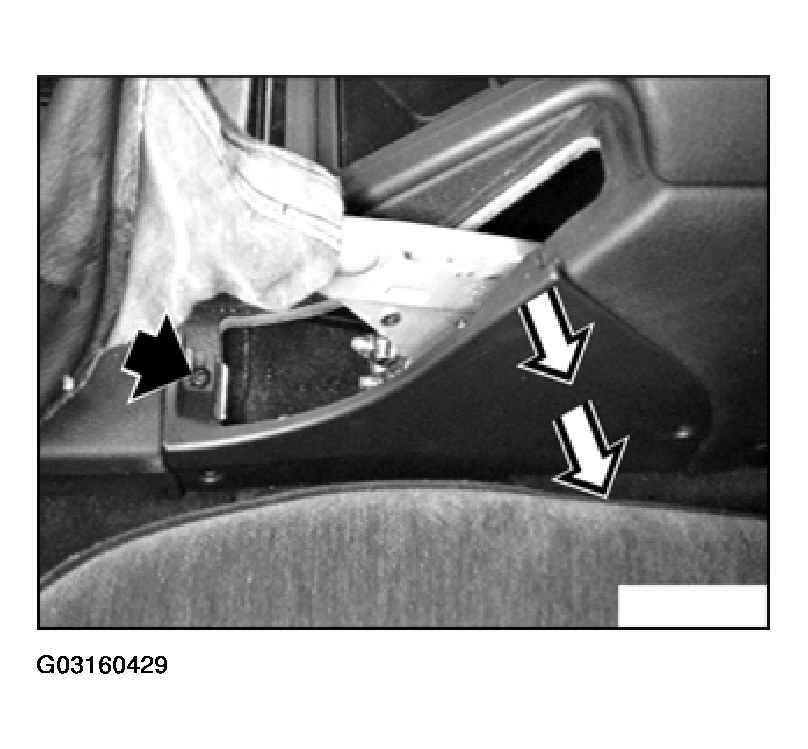

Fig 4: Uncliping Side Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tab for clip mounting must not be damaged.

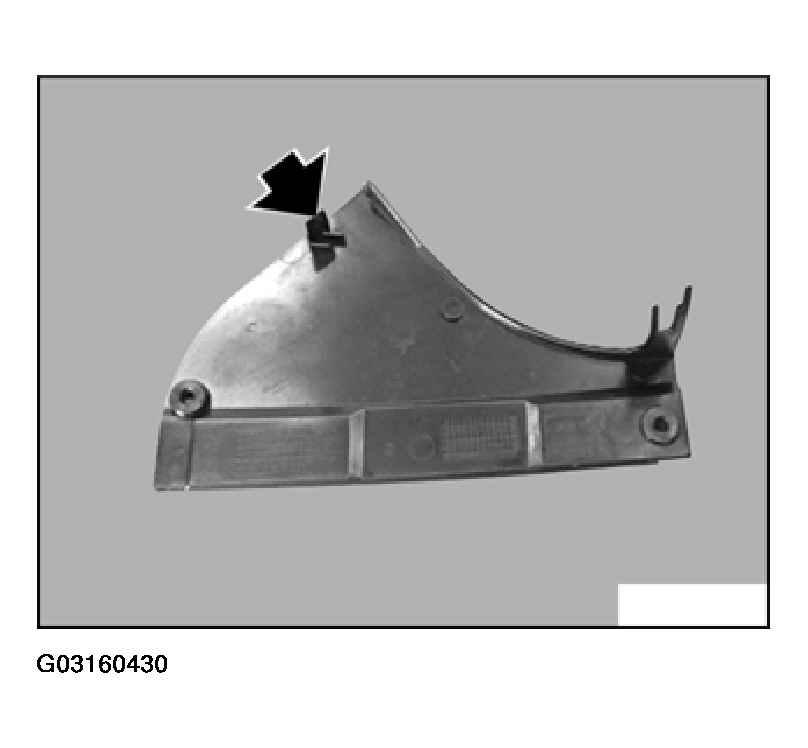

Fig 5: Use Care Not To Damage Tab For Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

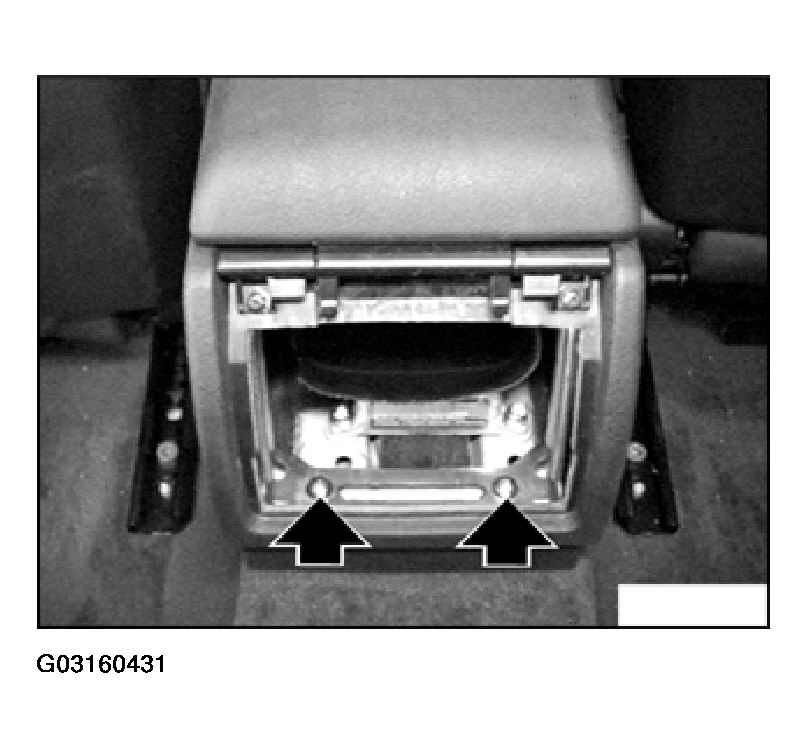

Fig 6: Remove Screws As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Lift off left/right and unfasten screws.

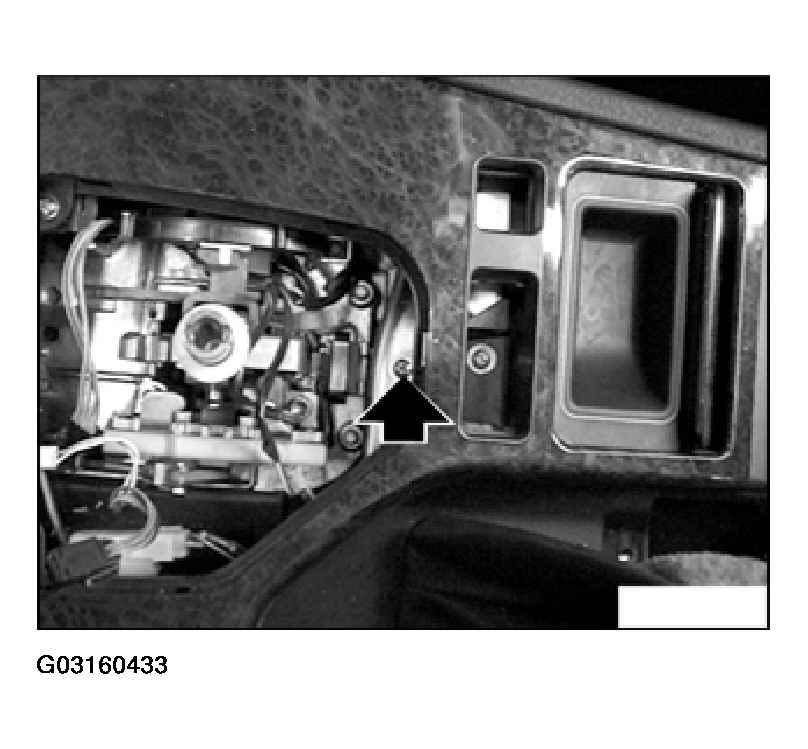

Fig 7: Remove Screw Cover & Remove Screws As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew screw.

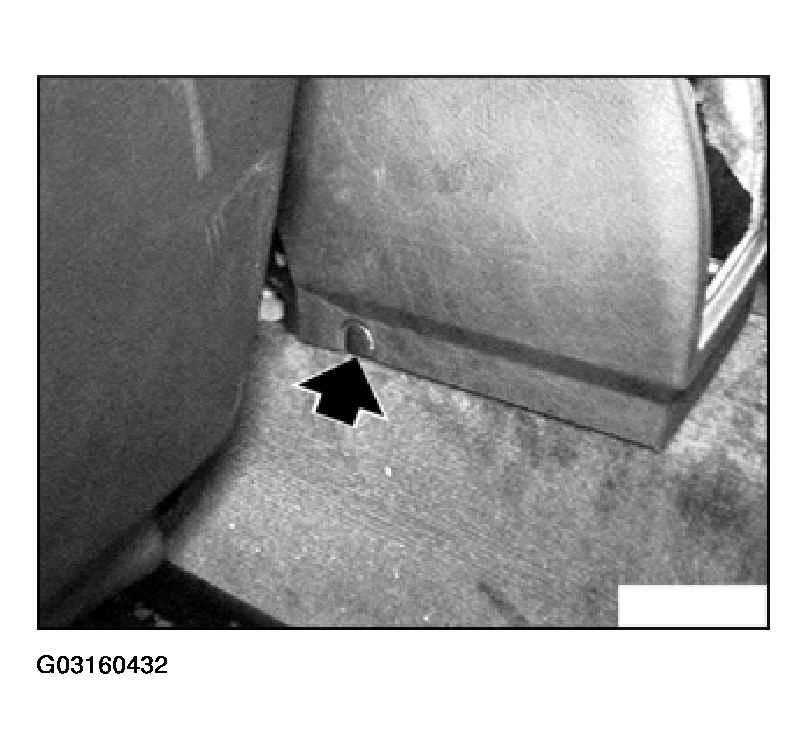

Fig 8: Remove Screw As Illustrated

Courtesy of BMW OF NORTH AMERICA, INC.

Raise back of oddments tray (1) slightly and cut through plug connection (cigarette lighter).

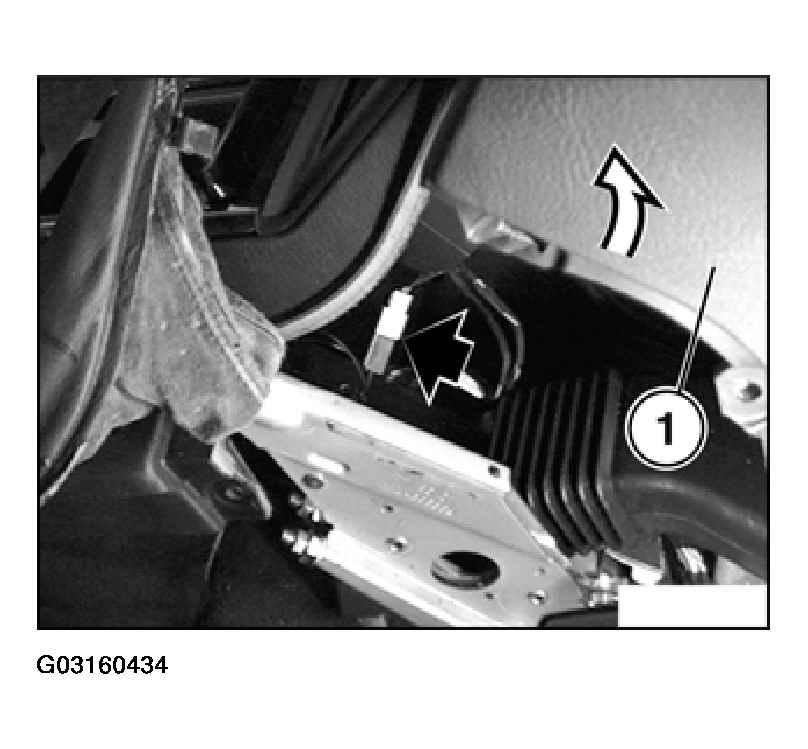

Fig 9: Disconnect Cigarette Lighter Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust both front seats, back-rests and selector lever as far backwards and downwards as possible.

Lift up rear oddments tray and pull out on passenger side.

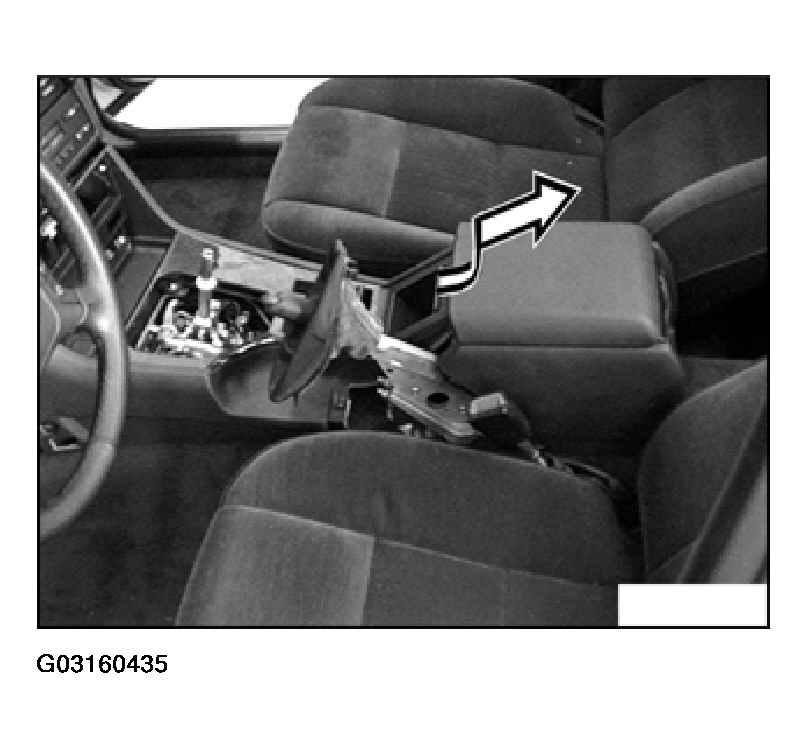

Fig 10: Removing Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.
