64 11 749 Removing and installing/replacing heater controls (automatic air conditioner)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio or on-board monitor, refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER .

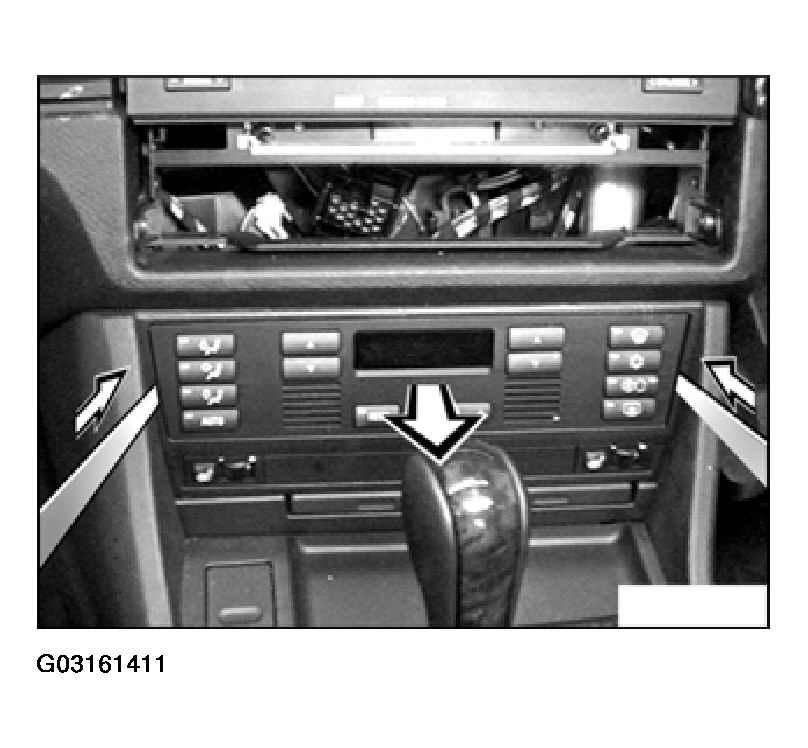

Press out controls through the radio aperture.

Fig 1: Pressing Out Heater Controls (Automatic Air Conditioner)

Courtesy of BMW OF NORTH AMERICA, INC.

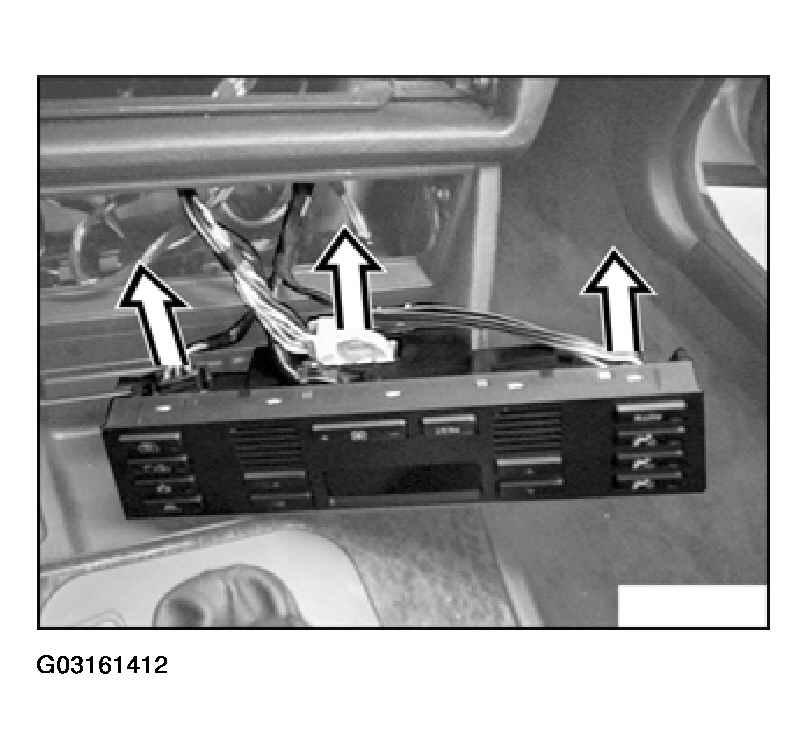

Pull off connectors.

Fig 2: Disconnecting Heater Controls Connectors (Automatic Air Conditioner)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After replacing the heater controls, recoding is necessary.
