51 16 210 Removing and installing/replacing finisher for preselector lever

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

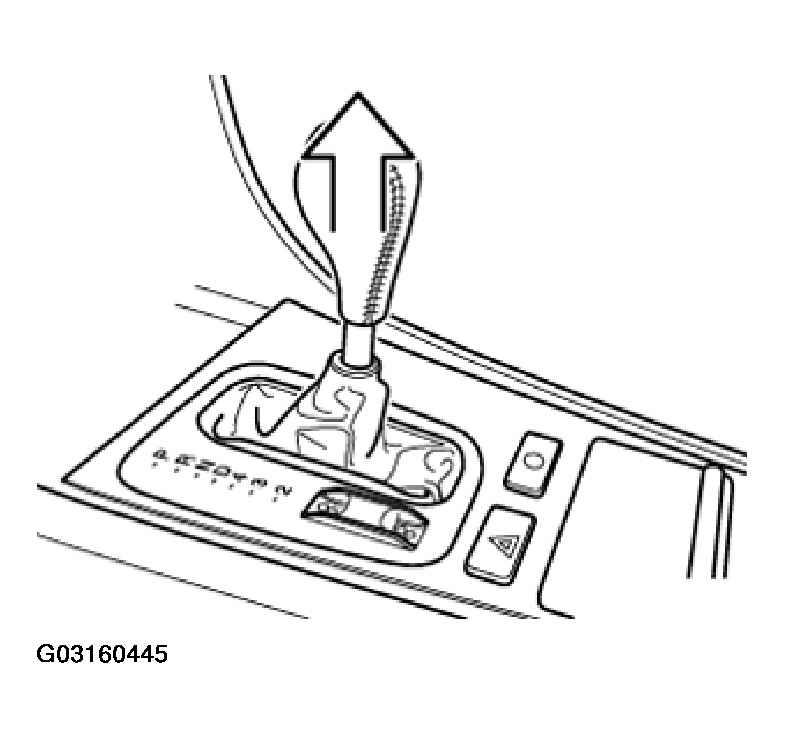

Pull handle off with one firm movement.

Fig 1: Removing Selector Lever Handle

Courtesy of BMW OF NORTH AMERICA, INC.

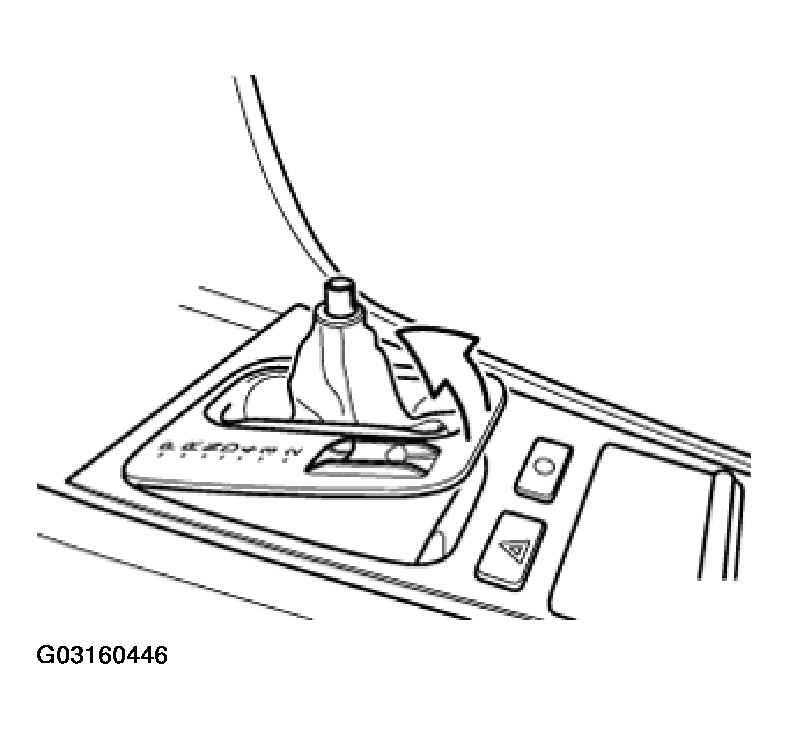

Lift out cover plate.

Fig 2: Lift Cover Plate Up

Courtesy of BMW OF NORTH AMERICA, INC.

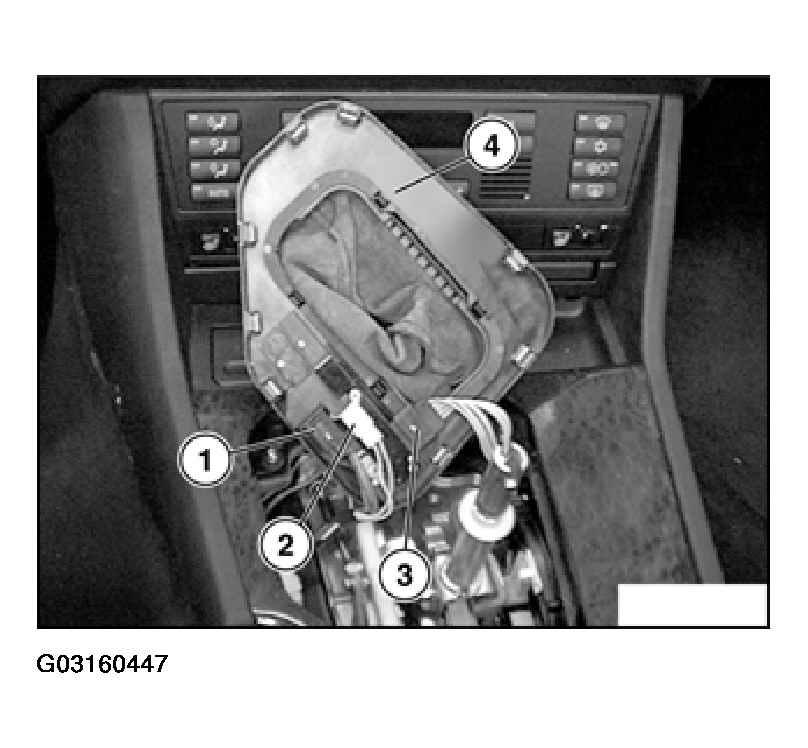

Pull out cable connector (1... 3) and remove finisher strip (4) for selector lever.

Fig 3: Removing Finisher Strip For Selector Lever

Courtesy of BMW OF NORTH AMERICA, INC.
