61 31 214 Removing and installing/replacing switch for electronic damper control

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Insert two feeler gauges (approx. 0.25) into side of switch, press together the clips, then pull switch forward.

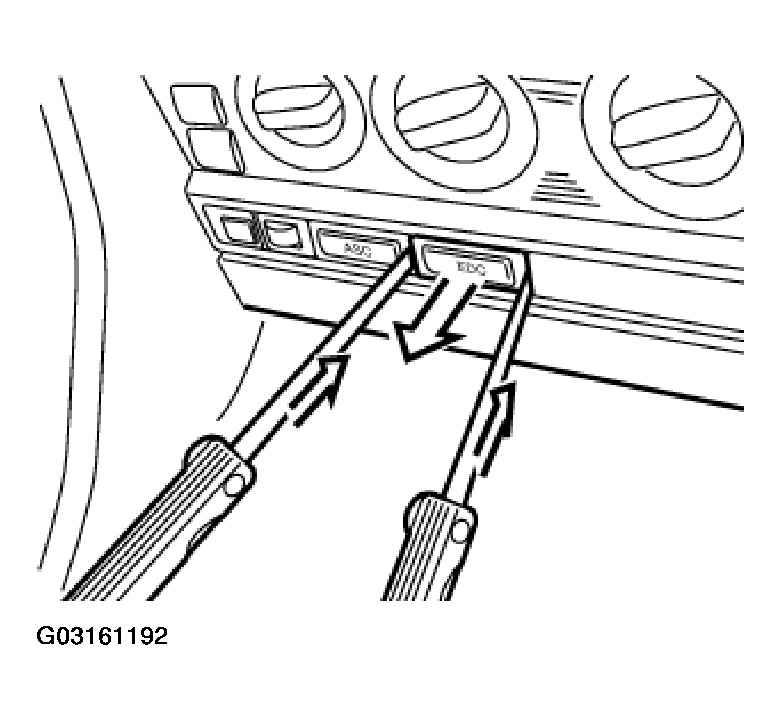

Fig 1: Removing Electronic Damper Control Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Press together clips and remove connector.

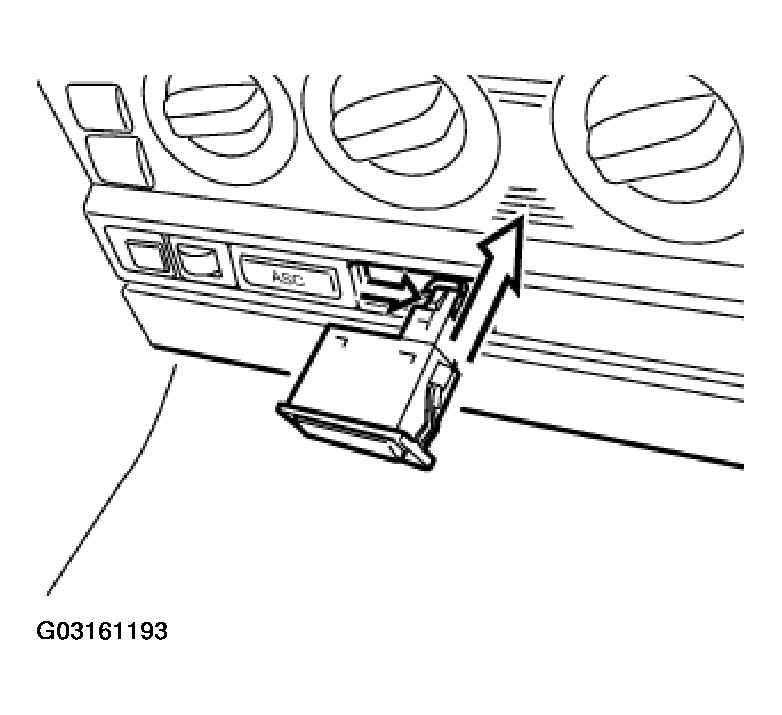

Fig 2: Disconnecting Electronic Damper Control Connector

Courtesy of BMW OF NORTH AMERICA, INC.
