61 31 082 Removing and installing/replacing switch for central locking system

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Lever out panel and lift off.

Press down switch and remove from bottom of oddments tray. Pull off connectors.

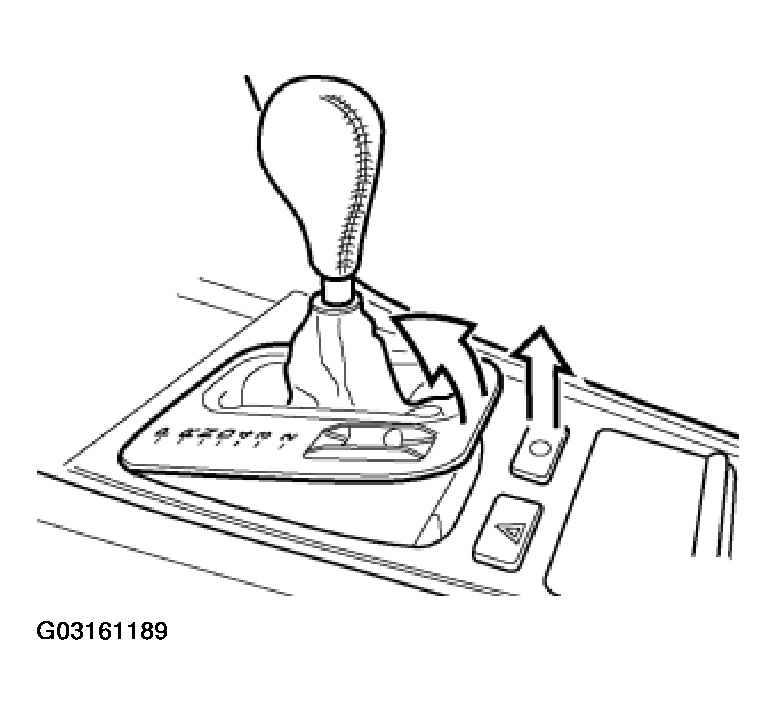

Fig 1: Removing Central Locking System Switch

Courtesy of BMW OF NORTH AMERICA, INC.
