11 21 500 Replacing crankshaft (N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Weight of crankshaft is approx. 25 kg.
Risk of injury from sharp edge of housing.

Necessary preliminary tasks:

Fully remove front axle together with engine.
Remove engine from front axle. See procedure for applicable transmission/drive configuration:
Mount engine on ASSEMBLY STAND .
Remove both cylinder heads. See REMOVING LEFT CYLINDER HEAD and REMOVING RIGHT CYLINDER HEAD .
Remove HUB FOR VIBRATION DAMPER .
Take off OIL PUMP .
Remove UPPER OIL SUMP SECTION
Remove LOWER GEAR CASE COVER .
Remove PISTONS .
Remove FLYWHEEL .
Remove radial shaft seals. See RADIAL SHAFT SEAL IN LOWER GEAR CASE COVER and CRANKSHAFT SEAL ON TRANSMISSION SIDE .
Remove TIMING CHAINS .

Installation note:

Layout of main bearing caps.

All numbers must be read from the cylinder bank (1 to 4) (see arrows).

Fig 1: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

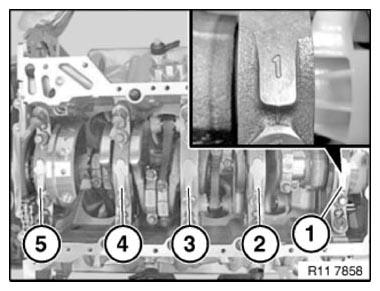

Main bearing caps (1 to 5) opposite the output end on the timing chain drive.

Fig 2: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

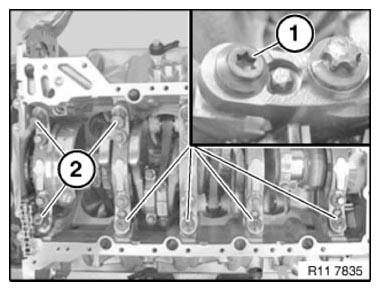

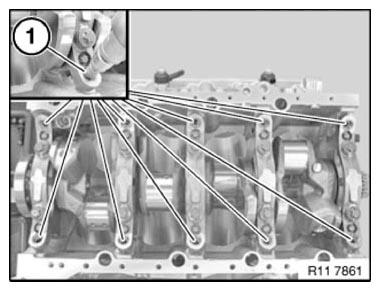

Release main bearing taper screw mounting (1).

Release oil pump spacer bolt (2) (N63O1 only).

Fig 3: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

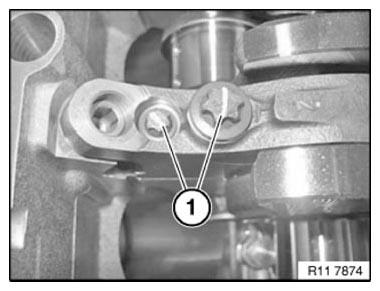

Release all threaded support sleeves (1).

Fig 4: Identifying Threaded Support Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

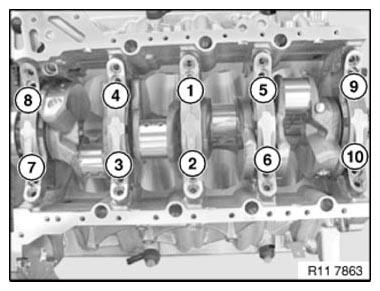

Release collar bolts (M8) in sequence 10 to 1.

Fig 5: Crankshaft Bolts (M8) Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

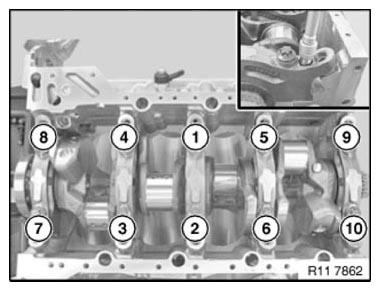

Release collar bolts (M11) in sequence 10 to 1.

Remove main bearing caps 1 to 5.

IMPORTANT: Remove crankshaft with a 2nd person, weight approx. 25 kg.

Lift out crankshaft and set down safely (secure against turning).

Fig 6: Crankshaft Bolts (M11) Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw for oil nozzle (1).

Tightening torque: 11 11 7AZ .

Illustration: N63.

Fig 7: Identifying Screw For Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

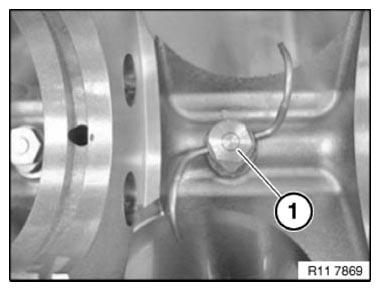

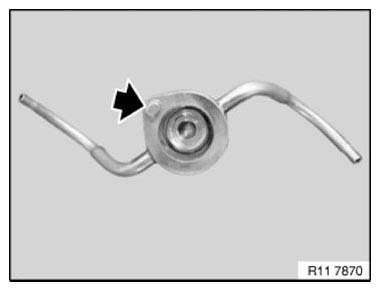

Check oil nozzle (1) for clear passage with compressed air.

Observe fastening on oil nozzle.

Illustration: N63.

Fig 8: Locating Oil Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Replace CRANKSHAFT MAIN BEARING SHELLS .

Installation note:

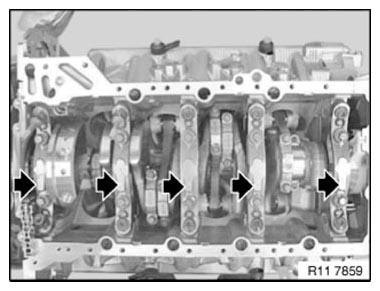

Note arrangement of main bearing caps (1 to 5).

All numbers must be read from the cylinder bank (1 to 4) (see arrows).

Fig 9: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Main bearing caps (1) is opposite the output end on the timing chain drive.

Turn back all threaded support sleeves hand-tight.

Installation note:

Coat all bearing positions with engine oil.

IMPORTANT: Install crankshaft with a 2nd person, weight approx. 25 kg.

Fig 10: Identifying Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Install crankshaft.

Fit bearing caps 1 to 5.

Set down bearing caps positioned from 1 to 5.

Insert all collar bolts (M11) hand-tight.

Insert collar bolts (M11) in sequence (1 to 10).

Fig 11: Crankshaft Bolts (M11) Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 12: Identifying Mark On Collar Bolt Heads

Courtesy of BMW OF NORTH AMERICA, INC.

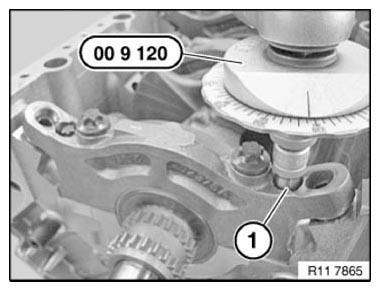

Secure collar bolt (1) with special tool 00 9 120 .

Tightening torque 11 11 1AZ .

Fig 13: Tightening Collar Bolts Of Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Insert all collar bolts (M8) hand-tight.

Secure collar bolts (M8) in sequence (1 to 10).

Fig 14: Crankshaft Bolts (M8) Tightening/Loosening Sequence (N63 O1)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

For a better overview of the screw connection quality, mark the head of all collar bolts after joining with a line (1) using an oil-proof marker pen.

Check angle tightening.

Fig 15: Identifying Mark On Collar Bolt Heads

Courtesy of BMW OF NORTH AMERICA, INC.

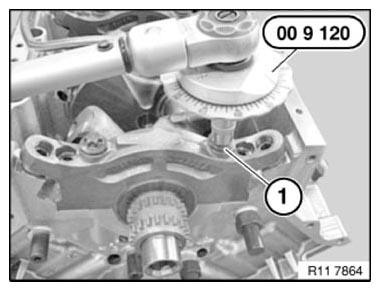

Secure collar bolt (1) with special tool 00 9 120 .

Tightening torque: 11 11 2AZ .

Fig 16: Securing Collar Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

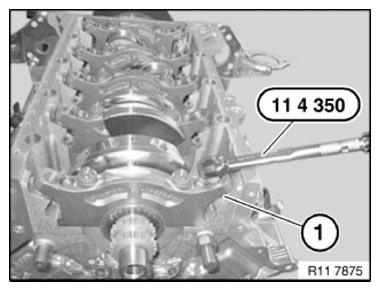

Secure all threaded support sleeves (1) with special tool 11 4 350 .

Tightening torque: 11 11 3AZ .

Fig 17: Securing Threaded Support Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Secure main bearing taper screw mounting (1).

Tightening torque: 11 11 4AZ .

Fig 18: Identifying Oil Pump Spacer Pins And Main Bearing Taper Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Check crankshaft COEFFICIENT OF FRICTION .

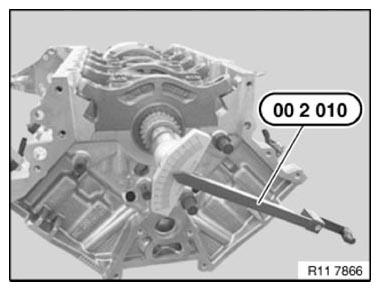

Determine crankshaft breakaway torque with special tool 00 2 010 .

Rotate crankshaft at central bolt using special tool 00 2 010 .

If the breakaway torque is too high, it will be necessary to correct the BEARING CLEARANCE .

Fig 19: Rotating Crankshaft Central Bolt Using Special Tool 00 2 010

Courtesy of BMW OF NORTH AMERICA, INC.

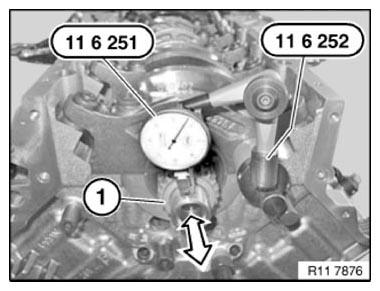

Secure special tool 11 6 252 to crankcase with magnetic base.

Slide crankshaft in direction of arrow forwards as far as it will go.

Set special tool 11 6 251 to zero.

Slide crankshaft (1) in direction of arrow towards rear and determine value.

Check SIDE CLEARANCE .

Fig 20: Checking Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
