11 22 510 Removing and installing/replacing flywheel (transmission removed - N63O1)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260

Necessary preliminary tasks:

Remove automatic transmission. See REMOVING AUTOMATIC TRANSMISSION or REMOVING AUTOMATIC TRANSMISSION (WITH AWD) .
Remove MANUAL TRANSMISSION
Remove CLUTCH

Manual transmission:

Secure flywheel (1) with special tool 11 9 260 .

Graphic S63.

Fig 1: Identifying Flywheel Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Automatic transmission:

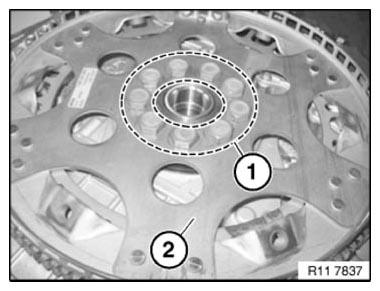

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean thread of flywheel bolts in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

Fit new flywheel screws.

Tightening torque 11 22 1AZ .

Fig 2: Identifying Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Manual transmission:

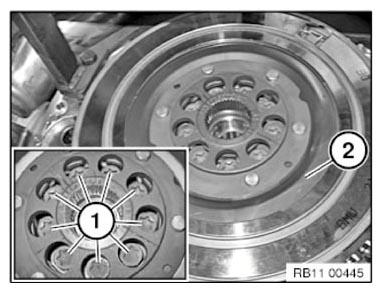

Release flywheel screws in area (1).

Remove flywheel (2).

Installation note:

Clean thread of flywheel bolts in crankshaft.

Flywheel (2) is secured with an alignment pin.

Fit flywheel (2).

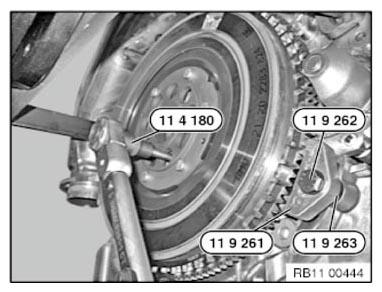

Fig 3: Removing Flywheel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new flywheel screws.

Tightening torque 11 22 1AZ .

Reassemble the vehicle.
