11 00 598 Removing and installing engine on front axle (N63O1) with GA8HP70Z transmission

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove front axle with engine and transmission.

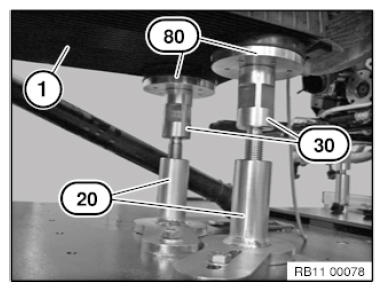

Screw fixtures (20) onto table lift at a suitable location.

Move screw adapter (30) with plate (80) up against the transmission oil sump (1).

Fig 1: Identifying Fixtures, Screw Adapters, Plates, And Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

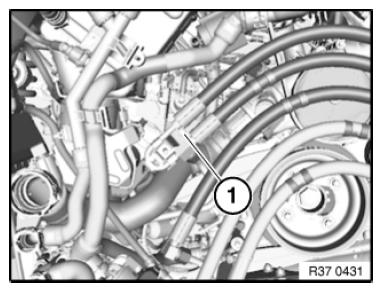

With Dynamic Drive only

Release holder (1).

Fig 2: Identifying Holder

Courtesy of BMW OF NORTH AMERICA, INC.

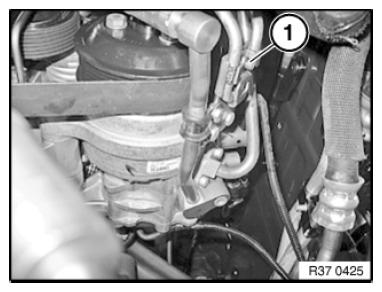

With Dynamic Drive only

Release holder (1) on power steering pump.

Tightening torque 32 41 14AZ .

Fig 3: Identifying Holder On Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

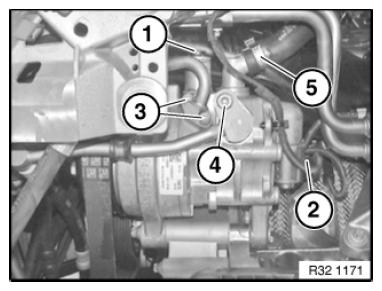

With Dynamic Drive only

Release screws (3).

Tightening torque 32 41 13AZ .

Release screws (4).

Tightening torque 32 41 10AZ .

Installation note:

Align intake pipe by way of marking to power steering pump.

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

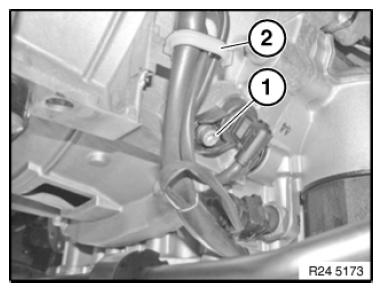

Release screw (1).

Tightening torque 13 62 4AZ .

Remove crankshaft sensor.

Disengage cable from holder (2).

Fig 5: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

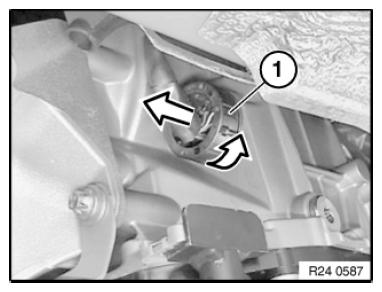

Unlock and disconnect connector (1) by turning.
Do not touch pins.
Release cable from brackets.
Insert special tool 24 2 390 in sealing cup.

Fig 6: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Operations are described in:

NOTES ON MECHATRONICS

IMPORTANT: Read and comply with important note.

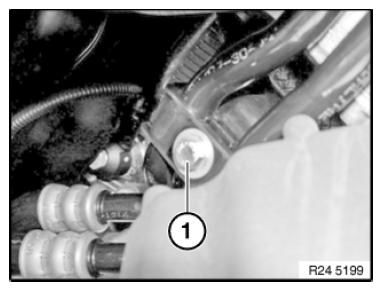

Release screw (1).

Undo hydraulic line and holder.

Fig 7: Identifying Hydraulic Line Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

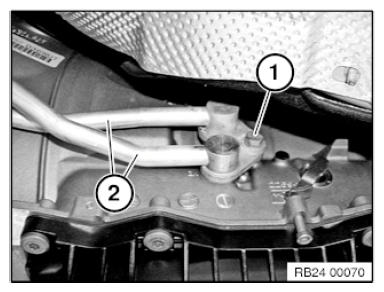

Release screw (1).

Tightening torque 17 22 1AZ .

Disconnect hydraulic lines (2) to transmission oil cooler.

Release screw (1).

Loosen the hydraulic lines (2).

Fig 8: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing rings. Note installation position.

Recycling:

Catch and dispose of escaping oil with auxiliary materials.

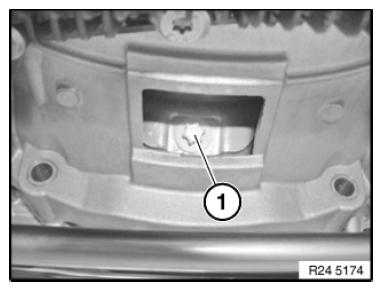

Crank engine at vibration damper in direction of rotation until screw (1) is visible in recess.

Undo all 6 bolts on torque converter.

Tightening torque 24 40 1AZ .

Fig 9: Identifying Screw In Recess

Courtesy of BMW OF NORTH AMERICA, INC.

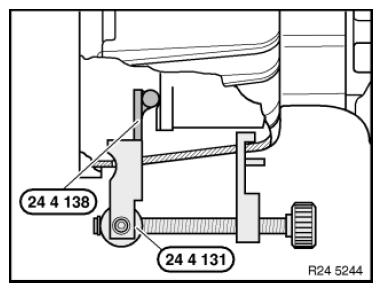

Insert special tool 24 4 131 , 24 4 138 into recess in transmission housing.

Lock the torque converter by tightening the special tool.

Fig 10: Inserting Special Tool In Transmission Housing

Courtesy of BMW OF NORTH AMERICA, INC.

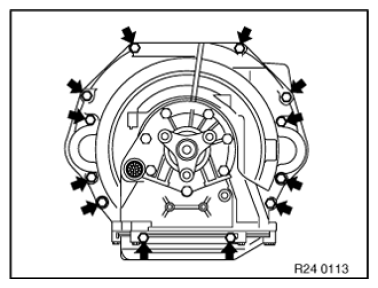

Release screws.

Tightening torque 24 00 1AZ .

Unflange transmission.

Fig 11: Identifying Transmission Screws

Courtesy of BMW OF NORTH AMERICA, INC.

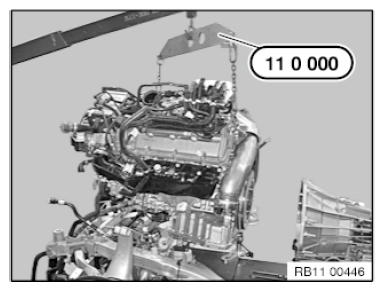

Slightly raise engine with workshop crane and special tool 11 0 000 .

This simplifies removal and installation of transmission.

Fig 12: Lifting Engine With Workshop Crane And Special Tool (11 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

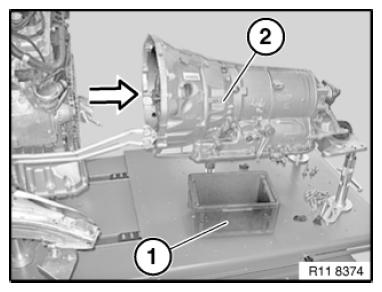

Disconnect transmission (2) from engine in the direction of arrow.

Fig 13: Disconnecting Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

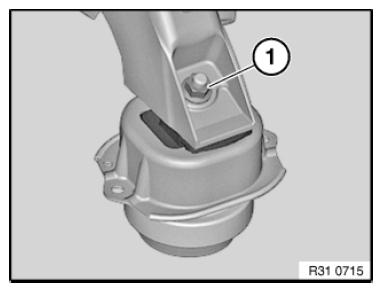

Unscrew nuts (1).

Raise engine.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 14: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

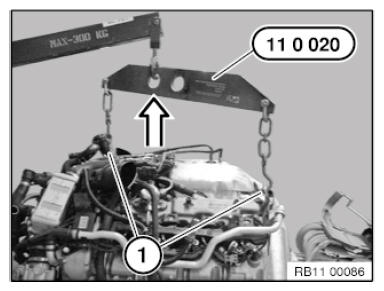

Lift engine (1) with workshop crane (2) and special tool 11 0 020 from front axle.

Mount engine on ASSEMBLY STAND .

Fig 15: Lifting Engine With Workshop Crane And Special Tool (11 0 020)

Courtesy of BMW OF NORTH AMERICA, INC.
